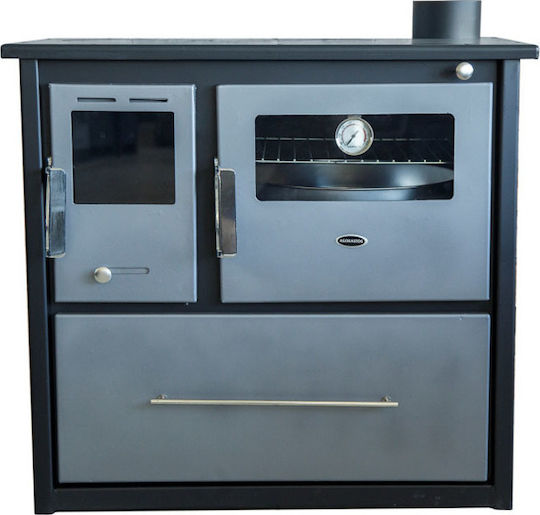

The device is used for space heating using solid fuels (natural wooden logs). It is also used for baking and cooking. The stove includes an inox tray and grill.
It is made of steel metal parts, cast iron metal components (lower grate), and glass surfaces that cover the fire door (ceramic glass) and the warming oven door.
It is manually operated and designed to be installed as a freestanding device.
The combustion air enters naturally through 12 longitudinal openings located at the base of the fire door. The combustion air is directed into the combustion chamber without preheating.
The smoke produced during the fuel combustion process is directed to the chimney outlet located on the roof of the combustion chamber, diverted by the oven installed on the roof of the combustion chamber.
The ash is directed by gravity through the lower grate into the ash pan located below the combustion chamber. Access to the ash pan requires opening the fire door.
Product Details
- Air Ηeater
- No
- Radiator
- No
- Cook Stove (with Oven)
- Yes
- Chimney diameter
- 120 mm
- Material
- Steel
- Colour
- Grey
- Weight
- 90 kg
- Wood Heating Stove
- No
Performance
- Energy Class
- A
- Total Power
- 10 kW
- Power in Air
- 10 kW
- Energy Efficiency
- 63 %
- Water Consumption
- 5.291 kg/h
Dimensions
- Height
- 750 mm
- Width
- 820 mm
- Length
- 480 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
