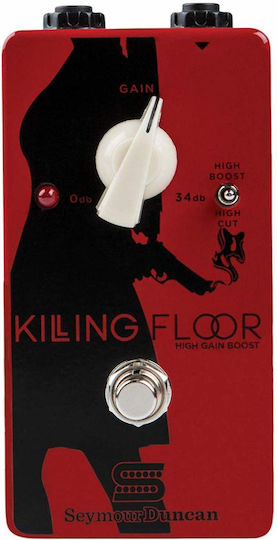

Circuit Type: The Killing Floor uses a hybrid J FET Op Amp optimized for low-order harmonics.

Bypass: True hard bypass.

Control Functionality:

• Gain Control: Adjustment from 0dB to 34dB.
• Voice Switch:
  • Up: High Boost 7 dB (10 kHz)
  • Middle: Flat Response
  • Down: High Cut 1st order 3dB (4-8 kHz)
• Footswitch Bypass: Activates the boost effect.
• Input Resistance: 1M Ohm.
• Output Resistance: 1K Ohm.
• Maximum Output: 0dB dry, up to 3dB wet.
• THD 1 Vo: Flat 0dB dry, up to 3dB wet.
• Noise referred to input: 120dBV set for 34dB.
• Power: 9V battery or external 9V to 18V regulated DC power supply (center negative).
• Power Consumption: 3.7mA in active operation, 2.2mA in bypass operation.
• Dimensions: 2.61 X 4.90 X 1.40.
• Weight: 0.8lb without battery, 0.9lb with battery.
