Edit 10/2020:
"It plays all the new games like Resident Evil 2&3 at 45-50fps, Blair Witch at 28-30fps, Shadow of the Tomb Raider, Call of Duty WW2, Assassin's Creed Odyssey, the new Star Wars, etc. at a resolution of 1440*900 (on a computer with an FX 4300 processor and DDR3 1866 2x4GB RAM). Of course, it also runs GTA 5...
All of this without any crashes or stuttering. I haven't tried it on Red Dead Redemption, but on YouTube it shows that it runs at around 24fps."
Negatives:
Connections:
Unfortunately, it doesn't have VGA out (D-sub), which would be useful since many older monitors have it. However, with a DVI-D to VGA adapter (€10), it can still provide a signal through VGA.
PCI Express:
Unfortunately, it is gen3 x4 and not x16. Despite this, even on my PCI Express 2.0 motherboard, it performs "properly" and doesn't seem to significantly affect the performance. However, on very old systems with PCI Express 1.1, it may not perform as well (I haven't tested this).
Positives:
GDDR5: It is indeed GDDR5 and not DDR4, which some other manufacturers offer. So the performance is legitimate.
It has HDMI 2.0, so you can watch movies in 4K at 60Hz.
It works perfectly with DirectX 12 and supports it natively, not just as DX 11.2.
Performance:
Overall, in terms of performance, it is very close to the GTX 750 Ti that I have in another build. It doesn't cause unnecessary CPU usage and doesn't produce stuttering like AMD cards in a similar price range due to draw calls.
Power Consumption:
Using a power meter on a system with the G4560 processor that I tested it on, I measured around 15-20W less power consumption compared to what the computer would draw with the 750 Ti.
Temperatures:
I installed it in a mini ITX case. It operates at around 58-62°C. But it doesn't go higher than that.
It is also silent. Previously, I had a GT 740 low profile, and its temperature was 4°C lower.
Overclocking:
I easily reached +180MHz on the GPU and 400MHz on the memory (using Afterburner) without the temperature rising excessively (it reached 68°C with the fan at 80% and without needing to adjust the voltage).
Fan:
Even at 80%, it remains completely silent. The card is completely silent. Also, it doesn't collect much dust because the fins of the heatsink are not too dense, so it doesn't require frequent cleaning.
Graphics Card Memory:
The 2GB will be sufficient for all games at medium-high settings. For ultra settings in some games, you will need a more powerful graphics card (such as the 1650) with 4GB of memory. With the 2GB graphics card, there may be some usage of your system's RAM, but even 8GB-12GB of system RAM will be enough.

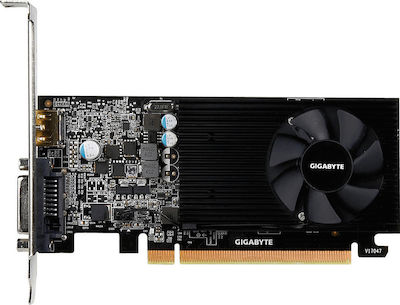

Build Quality-Design:
Of course, Gigabyte is truly reliable, and the design is very good. It also takes up little space in the case.
My Opinion:
Avoid models with passive cooling (without fans).
Lastly, be very careful with certain models from other manufacturers that have DDR4 memory and provide half the performance!
There are also GT 1030 models with a larger heatsink than this one, but it's not necessary because even with this specific card, the cooling performance is sufficient.
Overall, it is a good choice in terms of performance, reliability, and ideal for small form factor PCs and low power consumption.
Edit 10/2020:
"Παίζει όλα τα καινούργια παιχνίδια resident evil 2&3 45-50fps , blair witch (28-30fps) , shadow of tomb rider ,call of duty ww2, assasins creed audysey,το καινούριο star wars κ.α. σε ανάλυση 1440*900 (σε υπολογιστή με τον fx 4300 &ddr3 1866 2x4gb ram) . Εννοείται τρέχει και το gta5...
Όλα αυτά χωρίς κολλήματα ή studdering.Στο read dead redemption δεν την έχω δοκιμάσει ,αλλά στο YouTube δείχνει πως βγάζει 24 fps περίπου."
Αρνητικά:
Συνδέσεις:
Δυστυχώς δεν δίνει vga out(dsub) ,που θα βόλευε καθώς πολλές παλιότερες οθόνες έχουν.Όμως με ανταπτορακι μετατροπέα dvi-d σε vga (10€) δίνει σήμα κανονικά και σε vga.
Pci express:
Δυστυχώς είναι gen3 x4 και όχι x16 .
Παρ'ολα αυτά,ακόμα και στο pciexpress 2.0 motherboard που εχω, αποδιδει "σωστα" και δεν φαίνεται να επιρεαζει αισθητά την απόδοση .
Όμως σε πολύ παλιά συστήματα ,με pci ecpress 1.1 μπορεί να μην αποδόσει το ίδιο καλά...(δεν το έχω δοκιμάσει)
Θετικά:
Gddr5:Είναι όντως gddr5 και όχι sddr4 που βγάζουν ορισμένοι άλλοι κατασκευαστές.
Οπότε η απόδοση είναι legit.
Εχει hdmi 2.0 οπότε μπορεί να δείτε ταινίες σε 4k και σε 60 hz .
Δουλεύει τέλεια και με directx12 και την υποστηρίζει natively κι όχι ως dx 11,2 .
Επιδόσεις:
Συνολικά σαν επιδόσεις πλησιάζει πολύ την gtx 750 ti που έχω σε άλλο build.
Άσκοπη χρήση της cpu δεν προκαλεί,ούτε βγάζει stuttering όπως βγαζουν οι amd σε αντίστοιχη κατηγορία τιμής λόγω των draw calls.
Κατανάλωση:
Με μετρητή πάνω στη πριζα ,σε σύστημα με τον g4560 που τη δοκίμασα , μέτρησα συνολικά γύρω στα 15-20w λιγότερα από αυτά που θα τράβαγε ο υπολογιστής με την 750ti.
Θερμοκρασιες:
Την έβαλα σε mini itx case.Δουλεύει γύρω στους 58-62οC.Δεν πάει όμως παραπανω.
Επισης είναι και αθόρυβη.
Παλιότερα είχα μια gt 740 low profile,ήταν 4oC χαμηλότερη η θερμοκρασία.
Overclock:
Άνετα έφτασα +180mhz στη gpu και 400mhz στη μνήμη (με το afterburner) χωρίς να ανέβει η θερμοκρασία υπερβολικά (έφτασε τους 68οC με το ανεμιστήρακι στο 80% και χωρίς να χρειαστεί να πειραχτουν τα volt.
Ανεμιστήρακι:
Ακόμα και στο 80% εξακολουθεί να μην ακούγεται καθόλου ,εντελώς αθόρυβη η κάρτα .
Επίσης δεν μαζεύει πολύ χνούδι γιατί τα fins της ψυκτρας δεν είναι υπερβολικά πικνσ ,οπότε δεν θέλει και συχνά καθάρισμα.
Μνήμη κάρτας γραφικών :
Τα 2gb θα σας καλύψουν για όλα τα παιχνίδια σε medium -high settings ,για ultra settings σε κάποια παιχνίδια,θα χρειαστείτε ισχυρότερη κάρτα γραφικών (πχ την 1650) με 4αρα μνήμη.
Με τη 2gb κάρτα γραφικών,ενδέχεται να υπάρξει κάποια χρήση ram του συστήματος σας ,αλλά ακόμα και 8gb-12gb ram συστήματος θα σας καλύψουν.
Ποιότητα κατασκευής-design:
Εννοείται η gigabyte είναι πραγματικά αξιόπιστη και ο σχεδιασμός πολύ καλός και βέβαια πιάνει λίγο χώρο στο κουτί .
Γνώμη μου:
Αποφύγετε τα μοντέλα με passive cooling (χωρις ανεμιστηρακια)
Τέλος,προσέξτε πολύ ορισμένοα μοντέλα άλλων κατασκευαστών που έχουν sddr4 μνήμη και δίνουν τη μισή αποδοση!
Υπάρχουν και μοντέλα gt 1030 με μεγαλύτερη ψυκτρα από τη συγκεκριμμενη, αλλά δεν χρειάζεται ,γιατί και με τη συγκεκριμένη κάρτα η απόδοση της ψύξης είναι επαρκής.
Γενικά μια καλή επιλογή σαν αποδοση ,ματζοβολη,ιδανική και για small form factor pc και για χαμηλή κατανάλωση ενέργειας.
