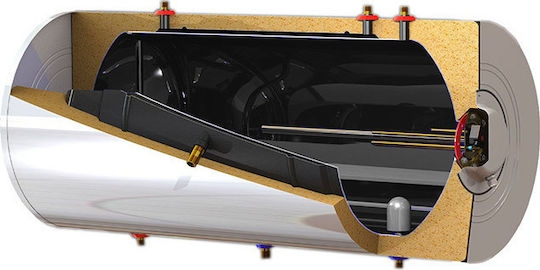

The water storage tank features an internal enamel coating, which covers the interior of the tank at every point and results from the application of enamel (glass) onto metal. This ensures that it is protected from rust, as the water does not come into contact with the walls, thus always ensuring clean drinking water.

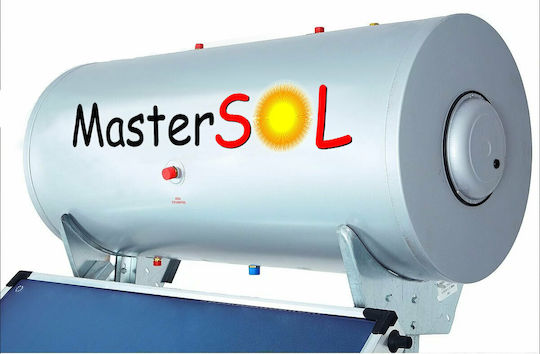

Tank
The water storage tank features an internal enamel coating, which covers the interior of the tank at every point and results from the application of enamel (glass) onto metal. This ensures that it is protected from rust, as the water does not come into contact with the walls, thus always ensuring clean drinking water.
Tank technical specifications
- Antimicrobial design for heating drinking water
- Stable and instant hot water supply
- Functional design
- Easy and quick installation
- Space-saving design
- Ability to connect to central heating system and electricity
- Contains 3.5kw electric resistance
- Jacket capacity 9 liters
- Anti-corrosive internal protection with double Duro-Glass enamel coating by BAYER (liquid enamel) at a baking temperature of 850°C according to German standard (DIN 51032 & EN 1388-2)
- Made of 2.5mm European steel 1204 V.E. with MAG welding. Guaranteed high resistance to corrosion & high pressures, for many years of use.
- Hard polyurethane 5cm thick & density 48kg/m3 (DIN 53420), self-extinguishing (DIN 4102)
- Tested at 15bar pressure, to ensure it withstands the high pressures developed inside the tank during the hot months in Greece.
- Closed circuit design for resistance up to -47°C.
- High performance due to the jacket covering 80% of its length.

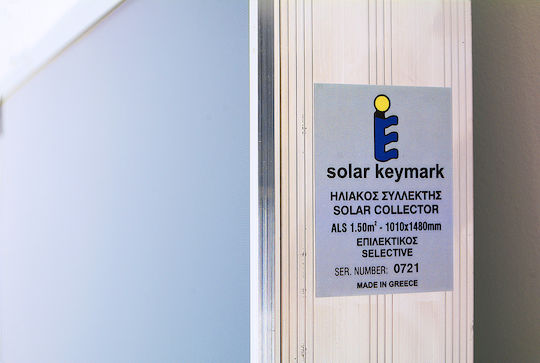

Collector
The collector has a surface area of 3m², capable of producing up to 300 liters of hot water. It is selective, the type most commonly used in solar water heaters in recent years. It has lower heat losses compared to a simple collector, thus providing higher efficiency.
Additionally, it features a special titanium coating, which minimizes thermal losses and offers better performance and greater economy.
Collector Technical Specifications
- The glass of the solar collector is tempered safety glass and is designed to withstand hail and rainfall of all intensities.
- All Mastersol collectors are tested at a pressure of 15bar to ensure they withstand the high pressures developed inside during the hot months in Greece.
- Due to its operation with antifreeze fluids, it can withstand temperatures as low as -47°C.

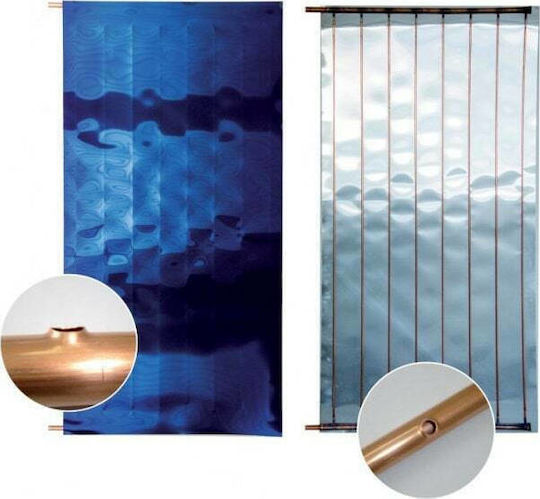

- Full plate blue selective absorber, aluminum-titanium with copper hydraulic skeleton
- Aluminum sheet thickness: 0.40 mm
- Aluminum profile thickness: 1.25 mm
- Safety glass 3.2 mm TEMPERED GLASS
- Insulation: Mineral wool: 40 mm x 18 Kg
- Copper welding with 5% silver
- Silicone: 100% neutral
Triple Energy
It is triple energy, meaning it has the capability to operate in three ways: with solar energy, with electric energy, or with hot water from the home's central heating. This means that inside the water tank there is an electric resistance, as well as a coil through which the hot water from the radiator produced by the central heating boiler circulates. Thus, on days with little sunshine due to cloudiness, you can activate your solar water heater either with electric energy or from the boiler, to always have hot water.
Solar Water Heater Maintenance
Regular maintenance of the solar water heater optimizes the quality, hygiene, and operational performance, while also saving on energy consumption. For the smooth operation of the solar water heater, regular maintenance by a specialized team is required. The necessary actions during the maintenance of the solar water heater are:
- Checking the level of solar fluids & refilling where necessary.
- Inspecting and repairing the insulation on the local solar pipes.
- Inspecting and replacing the magnesium anode to prevent the formation of scale inside the solar water heater.
- Inspecting and cleaning the electric resistance.
- Nominal Capacity
- 160 lt
- Container Material
- Glass
- Operation Mode
- Triple Energy
- Collector Type
- Selective
- Titanium Collector
- Yes
- Collector Surface
- 3 m²
- Roof Tile
- No
- Low Height
- No
- Horizontal Collector
- No
- Compact
- No
- Heat Pump
- No
- Wi-Fi
- No
