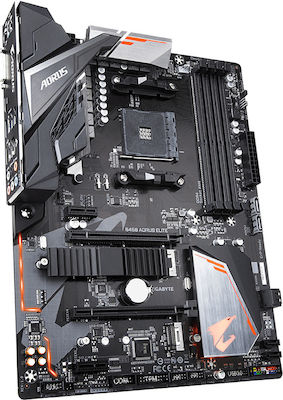

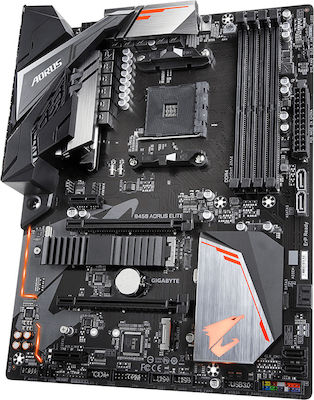

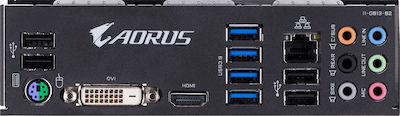

The box includes 2 SATA cables, they could have included more... Finally, stop putting CDs in. It is visually very beautiful. It also has RGB decorative LEDs (controlled through the factory-installed BIOS version F52h). It has debugging LEDs for the basic subsystems (CPU, DRAM, VGA, BOOT). The use of the main M.2 port, which also has a thermal shield, eliminates the two ASATA3 ports (the ones higher up on the motherboard). It has a lot of USB ports (8, 4, and 4), unfortunately, none of them are actually 3.1, they are all either 3.0 or 2.0, and there is also no Type-C. The pre-installed I/O Shield is very nice and saves you from installing it (or the possibility of forgetting to put it on), but it takes up a lot of space on the motherboard, so in a not-so-spacious case with a power supply and fans installed, it takes up a lot of room and ultimately makes it impossible to install without removing the pre-installed components.
The motherboard did not fit well with the case standoffs, meaning I have 2 standoffs that, even though they are for ATX motherboards, do not align properly, and the motherboard has a hole somewhere that my case does not have a standoff for, I just mention it, I did not have this issue with the ASRock AB350 Pro 4. At least 3 other users in the reviews here have reported the same issue.
I would like more fan ports, it only has 3 (+1 for the CPU), of course, they are "upgraded" and can handle a lot of Ampere, so you can put 2-3 fans together in one port without any problem. And all 4 are hybrid, meaning they support CPU cooler fans, pumps, or case fans. I set up Fan Curves through the BIOS, you can also set up FAN STOP, which completely shuts down the fan. I was impressed that it can also control 3-pin fans through Voltage and not just PWM.
My 3000MHz Corsair RAM worked flawlessly with XMP. For RAM installation, consult the manual. The slots are labeled from left to right (4 - 2 - 3 - 1). For dual channel, you put them in 4 - 3 or 2 - 1 (I don't know why they numbered them like that, it's confusing).
I found the BIOS particularly annoying if you want to overclock. Initially, the Clock Config is on a different page than the Voltage Config, instead of being one below the other. The CPU Clock is found in the M.I.T. tab, under Advanced Frequency Settings, and you go up to the option and directly type in the value and then press enter (meaning it doesn't give you feedback that you can change/write it). The entry is in the format "34" if you want 3.4GHz for example. The CPU Voltage is found in the Advanced Voltage Settings option, called Dynamic VCore (DVID), and the entry is just stupid. Instead of directly entering the Voltage you want, for example 1.33750, you add it to the "base". What is the base? I have no idea. I read on Reddit to check the pop-up window on the right side of the BIOS to see what the base voltage is, but I ended up booting into Windows with 1.47 voltage... Personally, I have added 0.104 and I am around 1.32-33 for a Ryzen 5 1600 at 3.8GHz, so the base is ultimately 1.22? Who knows... Overall, the BIOS is disorganized and does not explain how it works.
Features of the site: It has 6 temperature sensors. 6 x audio jacks. Audio Noise Guard. 8-Channel HD Audio. High-end Audio Capacitors. It seems like they have given a lot of importance to the sound. Gaming Ethernet (I don't think there is anything in the hardware, it must be more of a software marketing trick, for the realtek dragon that supports and monitors the network used by applications). Hybrid Digital PWM + Lower RDS(on) MOSFETs. The VRMs etc. seem to be of good quality and their heatsink is large, the overclocking I did had no issues, I can't say anything more. There is a ton of software it provides, but I didn't bother, either there are better programs for monitoring, or they are useless, or they are for settings that are better done through the BIOS rather than Windows.
Στο κουτί συμπεριλαμβάνονται 2 SATA καλώδια, θα μπορούσαν να έχουν κι άλλα... Σταματήστε να βάζετε CD επιτέλους... Οπτικά είναι πολύ όμορφη. Έχει και rgb διακοσμητικά leds (κλείνουν μέσα από το BIOS(έκδοση F52h που φορούσε εργοστασιακά). Διαθέτει debugging leds για τα βασικά υποσυστήματα (CPU, DRAM, VGA, BOOT). Η χρήση της βασικής M.2 θύρας που έχει και το thermal shield, καταργεί τις δύο θύρες ASATA3 που υπάρχουν (αυτές που είναι πιο ψηλά στην μητρική). Έχει πάρα πολλές θέσεις USB (8, 4 και 4), δυστυχώς καμία δεν είναι πραγματικό 3.1, όλες είναι ή 3.0 ή 2.0, επίσης δεν υπάρχει Type-C. Το προτοποθετημένο I/O Shield είναι πολύ όμορφο και σε γλιτώνει από την τοποθέτησή του (ή την πιθανότητα να ξεχάσεις να το βάλεις), όμως κάνει την μητρική να πιάνει πολύ χώρο, οπότε σε ένα όχι τόσο ευρύχωρο κουτί με εγκατεστημένο τροφοδοτικό και ανεμιστήρες, τρώει πολλές κουτουλιές και τελικά είναι αδύνατη η τοποθέτηση, αν δεν αφαιρεθούν τα προτοποθετημένα εξαρτήματα.
Η μητρική με τα standoffs του κουτιού δεν πολυταιριάξανε, δηλαδή έχω 2 standoffs που ενώ είναι για atx μητρική, δεν την βρίσκουν, και η μητρική έχει τρύπα κάπου που το κουτί μου δεν παίρνει standoff, απλά το αναφέρω, με την ASRock AB350 Pro 4 δεν είχα τέτοιο θέμα. Το ίδιο θέμα αναφέρουν και τουλάχιστον άλλοι 3 χρήστες στις αξιολογήσεις του εδώ.
Θα ήθελα περισσότερες θύρες για ανεμιστήρες, διαθέτει μόνο 3 (+1 του CPU), βέβαια είναι "αναβαθμισμένες" και αντέχουν αρκετά Ampere, οπότε μπορείς να βάλεις 2-3 μαζί σε μία θύρα χωρίς να υπάρξει πρόβλημα. Και οι 4 είναι hybrid, δηλαδή υποστηρίζουν ανεμιστήρα ψύκτρας επεξεργαστή, αντλοίας ή κουτιου. Έβαλα Fan Curves μέσα από το BIOS, μπορείς να βάλεις και FAN STOP, να κλείνει τελείως ο ανεμιστήρας δηλαδή. Εντυπωσιάστικα που μπορεί να ελέγχει και ανεμιστήρες 3-pin μέσω Voltage και όχι PWM.
Οι 3000MHz Corsair RAM μου έπαιξαν απροβλημάτιστα με το XMP. Για την τοποθέτηση των RAM συμβουλευτείτε το manual. Οι θέσεις είναι labeled από αριστερά προς τα δεξιά (4 - 2 - 3 - 1). Για dual channel βάζετε σε 4 - 3 ή 2 - 1 (δεν ξέρω γιατί τα αρίθμησαν έτσι, αλλά μπερδεύει).
Βρήκα ιδιαίτερα ενοχλητικό το BIOS αν θέλεις να κάνεις OC. Αρχικά σε άλλη σελίδα είναι το Clock Config και σε άλλη το Voltage Config, αντί να είναι το ένα κάτω από το άλλο ξέρω 'γω. Το CPU Clock βρίσκεται στην καρτέλα M.I.T., στην επιλογή Advanced Frequency Settings και πηγαίνεις πάνω στην επιλογή και κατευθείαν γράφεις και μετά πατάς enter (δηλαδή σαν να μην σου δίνει feedback ότι μπορείς να το αλλάξεις-γράψεις). Η καταχώρηση γίνεται με την μορφή "34" αν θες 3,4GHz πχ. To CPU Voltage βρίσκεται στην επιλογή Advanced Voltage Settings, ονομάζεται Dynamic VCore (DVID) και η καταχώρηση είναι απλά ηλίθια. Αντί να βάλεις κατευθείαν το Voltage που θες, πχ 1,33750, προσθέτεις στο "βασικό". Ποιο είναι το βασικό; Έλα μου ντε. Διάβασα στο Reddit να δω στο pop-up παράθυρο που έχει στα δεξιά του BIOS ποιο είναι το base voltage, αλλά κατέληξαν να μπω στα Windows με 1,47voltage... Εγώ προσωπικά έχω προσθέσει 0,104 και είμαι γύρω στο 1,32-33 για έναν Ryzen 5 1600 στα 3,8GHz, οπότε το base τελικά είναι 1,22? Ποιος ξέρει... Γενικά, το BIOS είναι ανοργάνωτο και δεν εξηγεί πως λειτουργεί.
Features του site: Έχει 6 αισθητήρες θερμοκρασίας. 6 x audio jacks. Audio Noise Guard. 8-Channel HD Audio. High-end Audio Capacitors. Φαίνετια να έχουν δώσει αρκετή σημασία στον ήχο. Gaming Ethernet (δεν νομίζω ότι υπάρχει κάτι στο hardware, πιο πολύ software marketing trick πρέπει να είναι, για το realtek dragon που υποστηρίζει και κάνεις monitor το network που χρησιμοποιούν οι εφαρμογές). Hybrid Digital PWM + Lower RDS(on) MOSFETs. Τα VRM κτλ φαίνονται ποιοτικά και η ψύκτρα τους μεγάλη, το OC που έκανα δεν είχε πρόβλημα, δεν μπορώ να πω κάτι παραπάνω. Υπάρχει ένας τόνος software που δίνει, αλλά δεν ασχολήθηκα, είτε υπάρχουν καλύτερα προγράμματα πχ για monitoring, είτε είναι άχρηστα, είτε είναι για ρυθμίσεις που καλύτερα είναι να γίνονται μέσα από το BIOS και όχι από τα Windows.
