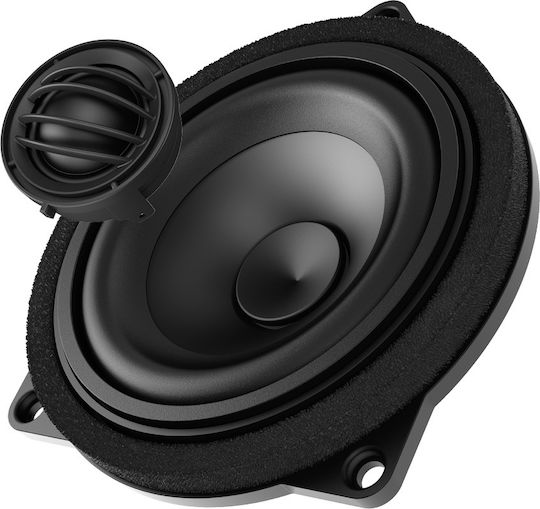

The Audison APBMW K4E car speaker set is a two-way component system with a water-repellent pressed-paper cone woofer and a Tetolon dome tweeter. The woofer has a low resonant frequency, allowing a high-pass cutoff at 150–200 Hz, while the tweeter is optimized for off-axis playback.
The system has a frequency response of 90 Hz–23 kHz and a sensitivity of 89 dB. The filter is a 6 kHz high-pass with a slope of 6 dB/Oct., while the component level can be set to -3 or 0 dB.
- Type: Two-way component system
- Shape: Round
- Woofer diameter: 100 mm (4″)
- Tweeter diameter: 29 mm (1.1″)
- RMS power: 50 W
- Maximum power: 100 W
- Impedance: 4 ohm
- Frequency response: 90 Hz–23 kHz
- Sensitivity: 89 dB
- Filter type: 6 kHz high-pass, 6 dB/Oct.
- Component level setting: -3 or 0 dB
- Woofer cone material: Water-repellent pressed paper
- Tweeter dome material: Tetolon
- Woofer voice coil diameter: 25 mm
- Tweeter voice coil diameter: 25 mm
- Woofer magnet dimensions: 50 × 29 × 3 mm
- Tweeter magnet dimensions: 24.5 × 4 mm
- Woofer weight: 0.426 kg
- Tweeter weight: 0.06 kg
- Product Number
- 01.07.0003
Dimensions
- Type
- 2 Way
- Shape
- Round
- Round Speakers Diameter
- 4 "
Technical Specifications
- Peak Power
- 100 W
- Power (RMS)
- 50 W
- Nominal Impendance
- 4 ohm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
