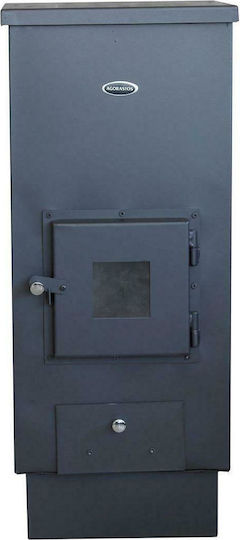

The device is used for space heating using solid fuels (natural wooden logs).
It is made from steel metal parts, cast iron metal components (bottom grate), and glass surfaces that cover the firebox (ceramic glass).
It is manually fed and intended to be installed as a freestanding device.
The combustion air enters naturally through four (4) longitudinal openings located on the body of the device below the firebox. The combustion air is directed straight into the fire chamber without preheating.
The flue gases produced during the combustion process are directed to the flue outlet located at the top of the fire chamber, diverted by an internal steel deflector installed at the top of the fire chamber.
The ash is gravity-fed through the bottom grate into the ash pan located below the fire chamber. Access to the ash pan requires opening the firebox door.
Product Details
- Air Ηeater
- No
- Radiator
- No
- Cook Stove (with Oven)
- No
- Chimney diameter
- 120 mm
- Material
- Metallic
- Colour
- Black
- Weight
- 45 kg
- Wood Heating Stove
- No
Performance
- Energy Class
- A
- Total Power
- 8.5 kW
- Power in Air
- 8.5 kW
- Energy Efficiency
- 60 %
- Water Consumption
- 4.722 kg/h
Dimensions
- Height
- 770 mm
- Width
- 340 mm
- Length
- 360 mm
