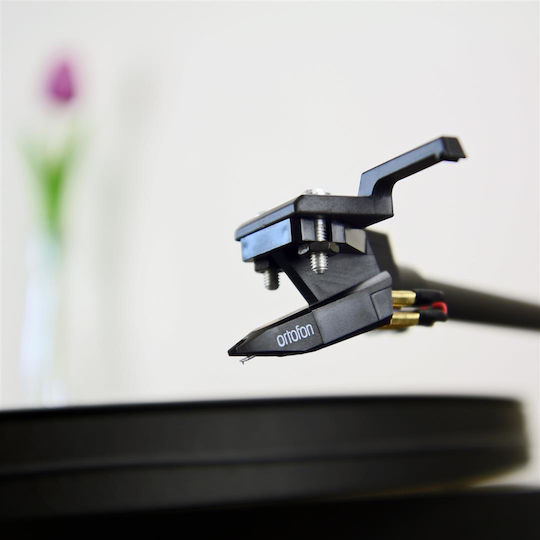

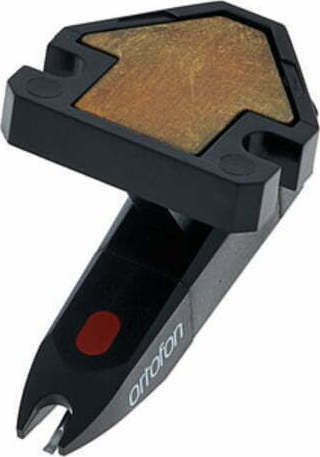

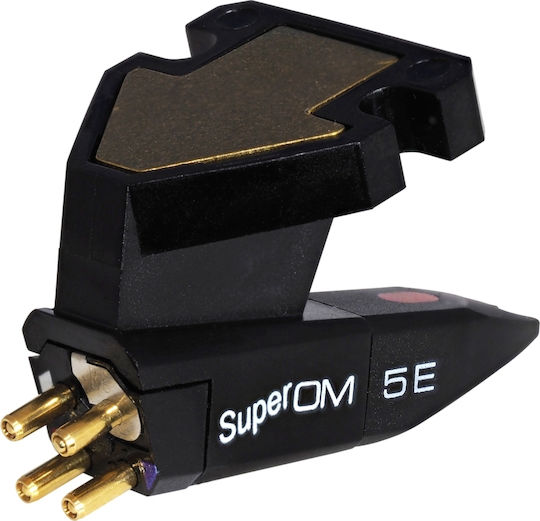

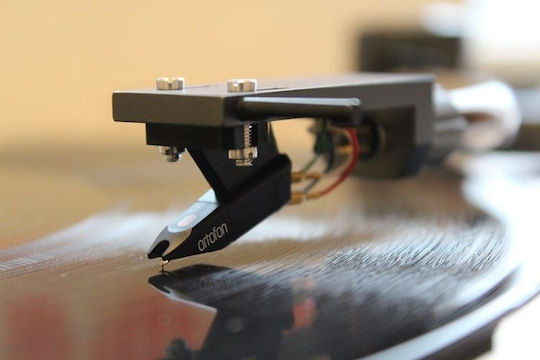

The Ortofon Super OM 5E elliptical turntable cartridge reproduces frequencies from 20 to 20,000 Hz with a response of ± 2 dB. The stylus has an elliptical tip with an r/R radius of 8/18 µm, while the recommended tracking force is 1.75 g.
- Type: DJ
- Packaging: Single unit
- Stylus type: Elliptical
- Stylus radius: r/R 8/18 µm
- Output voltage at 1,000 Hz and 5 cm/sec: 4 mV
- Channel balance at 1 kHz: 1.5 dB
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at -3 dB: 20–25,000 Hz
- Frequency response: 20–20,000 Hz ± 2 dB
- Tracking ability at 315 Hz with the recommended tracking force: 65 µm
- Compliance, dynamic, lateral: 20 µm/mN
- Tracking force range: 1.5–2.0 g (15–20 mN)
- Recommended tracking force: 1.75 g (17.5 mN)
- Tracking angle: 20°
- Internal DC resistance: 1 kOhm
- Internal inductance: 580 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200–500 pF
- Cartridge/stylus color: Black/Black
- Weight with additional weight: 5 g
- Weight without additional weight: 2.5 g
- Mounting type: Standard 1/2"
- Replacement stylus: Stylus 5 E, Stylus 10
- Type
- DJ
- Packaging
- Piece
- Mounting Type
- Standard 1/2"
