The plotter features a fully integrated 36-inch CIS scanner with dual LED illumination. It offers an optical resolution of 600 x 600 DPI and a scan speed of up to 7.5 inches/sec. in monochrome. It lets you digitize old drawings instantly and scan directly to USB, email, or a network folder.

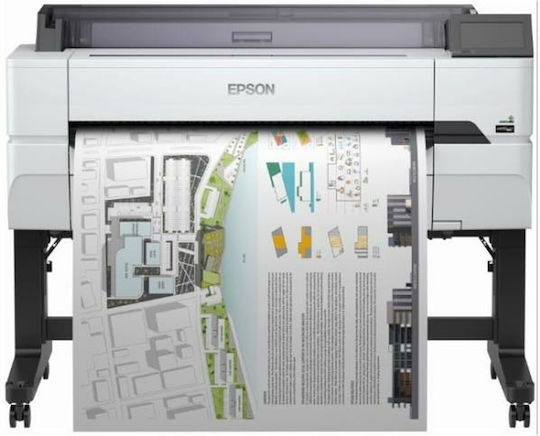

The Epson SureColor SC-T5400M is a 36-inch multifunction technical printer with a built-in top-loading scanner. It offers printing, scanning and copying with pigment inks, ensuring high accuracy for CAD drawings, GIS maps and architectural plans.
Integrated Top-Loading Scanner
The plotter features a fully integrated 36-inch CIS scanner with dual LED illumination. It offers an optical resolution of 600 x 600 DPI and a scan speed of up to 7.5 inches/sec. in monochrome. It lets you digitize old drawings instantly and scan directly to USB, email, or a network folder.
Print Quality & Accuracy
It uses fully waterproof 4-color pigment inks (UltraChrome XD2) for durability over time and in construction site conditions. Its resolution reaches 2,400 x 1,200 DPI, delivering crisp lines and borderless prints in a variety of sizes, including 17", 24", and 36" rolls.
NVT Technology & Protection
The unique Nozzle Verification Technology (NVT) detects and automatically corrects any clogged nozzles to prevent errors. In addition, the printer features special dust protection technology, making it suitable for use even in demanding environments.
Easy Operation & Connectivity
Equipped with a color 4.3-inch touchscreen, it enables intuitive control of all functions. It supports Wi-Fi Direct, Apple AirPrint, a USB 3.0 port and Gigabit Ethernet, as well as direct printing from a USB flash drive without using a computer.
Main Specifications
- Scanner
- Yes
- Maximum Roll / Paper Size
- 36'' (914mm)
- Compatible Roll / Paper Sizes
- 36'' (914mm)
- Number of Consumables
- 4
- Printer Memory
- 1024 MB
- Connectivity
- Ethernet, USB, Wi-Fi
Print Specifications
- Maximum Resolution
- 2400x1200 DPI
Scanning Specifications
- Maximum Resolution
- 600x600 DPI
- ASF
- No
Dimensions
- Height
- 1060 mm
- Width
- 1385 mm
- Length
- 750 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
