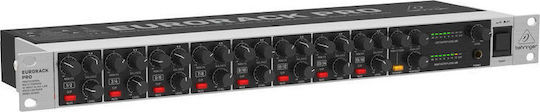

The Behringer RX1602 V2 is an analogue 16-channel line mixer with 16 balanced jack inputs for stereo or mono use. Each section has a Monitor/FX send control, while the overall level is adjusted using a central master control. The Monitor/FX signal can be heard through the headphone output on the front panel.

Two 7-segment LED meters display the level. The mixer has a built-in switching power supply for 100–240 V.

• Type: Analogue line mixer
• Channels: 16
• Inputs: 16 balanced jack sockets for stereo or mono use
• Send controls: Monitor/FX per section and central master
• Headphone output: 6.3 mm jack socket on the front panel
• Level meters: 2 7-segment LED meters
• Maximum output level: +22 dBu
• Bandwidth: 20 Hz–20 kHz ±0.2 dB
• Frequency range: 10 Hz–200 kHz ±3 dB
• Signal-to-noise ratio: < -97 dB
• Harmonic distortion: 0.003% at +4 dBu
• Audio input: 10 kOhm impedance, balanced or unbalanced; gain -8 to +15 dB; maximum input level +22 dBu
• Audio output: 6.3 mm jack socket; gain -8 to +15 dB; impedance 240 Ohm balanced or 120 Ohm unbalanced
• Power supply: Built-in switching power supply, 100–240 V
• Power consumption: 15 W
• Height: 44 mm
• Length: 483 mm
• Depth: 149 mm
• Weight: 1.8 kg
