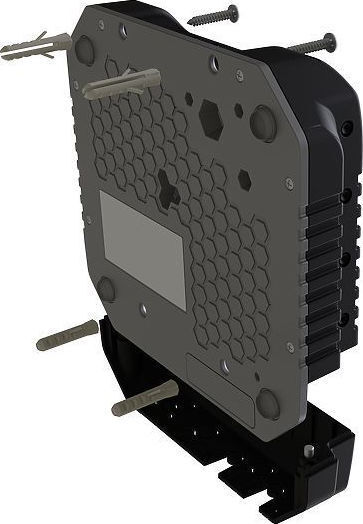

The MikroTik LtAP LTE6 kit access point combines 2.4 GHz Wi‑Fi 4 with a built-in Category 6 LTE modem for mobile network connectivity with download speeds of up to 300 Mbps. Its weather-resistant enclosure and wall-mounting option make it suitable for outdoor applications and vehicle installations. Built-in GPS enables real-time vehicle tracking.

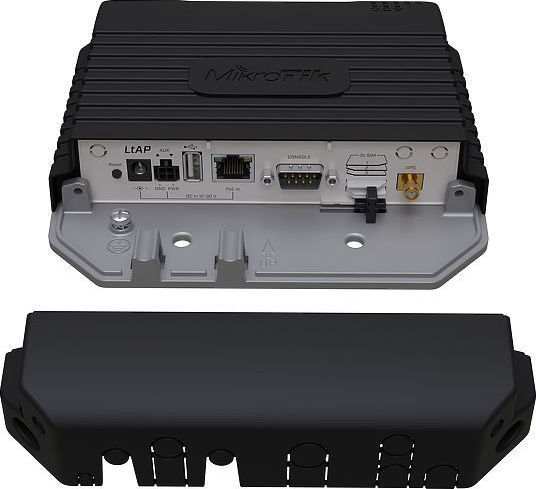

The LTE modem is installed in a miniPCIe slot, while a second miniPCIe slot is available for expansion, such as adding a second LTE modem or a 5 GHz interface. Three Mini SIM slots make roaming management easier. The device also features an RS232 serial port, a full-size USB port, and power options via a DC jack, PoE-in, or vehicle connection.
- Type: Wireless access point
- Wi‑Fi generation: Wi‑Fi 4
- Frequency: Single band (2.4 GHz)
- Maximum WLAN speed: 150 Mbps
- IEEE networking standards: 802.11a, 802.11 b/g/n
- MIMO technology: 2x2
- Antenna gain: 4 dBi
- LTE connection: Category 6, download speeds up to 300 Mbps
- Ethernet ports: 1 Gigabit Ethernet
- USB ports: 1 full-size USB 2.0
- SIM slots: 3 Mini SIM
- miniPCIe slots: 2, with the LTE modem installed in one
- Serial port: RS232
- GPS: Built-in

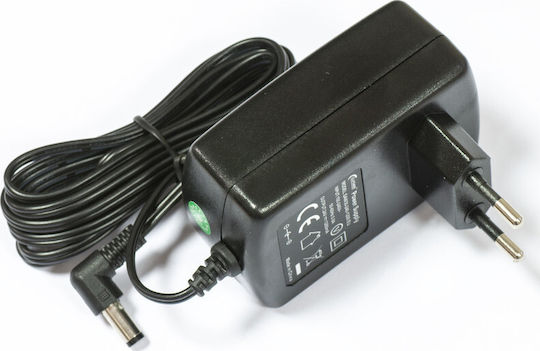

- Power: DC jack, PoE-in, or vehicle connection
- Mounting: Indoor or outdoor, wall-mounted
- Temperature resistance: -40 °C to +70 °C
- Packaging: Single kit
Technical Specifications
- Frequency
- Single Band (2.4GHz)
- Maximum WLAN Speed
- 150 Mbps
- Wi-Fi Generation
- Wi‑Fi 4
- IEEE Networking Standards
- 802.11a, 802.11 b/g/n
- LAN speed
- 1000 Mbps
- Wi-Fi Mesh Network
- No
- Ethernet Backhaul
- No
- Antenna Power (max)
- 4 dBi
- PoE Support
- PoE
- MIMO Technology
- 2x2
General Characteristics
- Placement
- Outdoor, Indoor
- Ethernet Ports
- 1
- USB
- USB 2.0
- Packaging
- Single Kit
Installation Type
- Ceiling
- No
- Wall
- Yes
- Board games
- No
