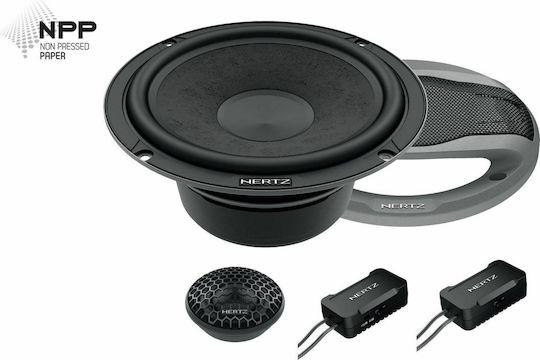

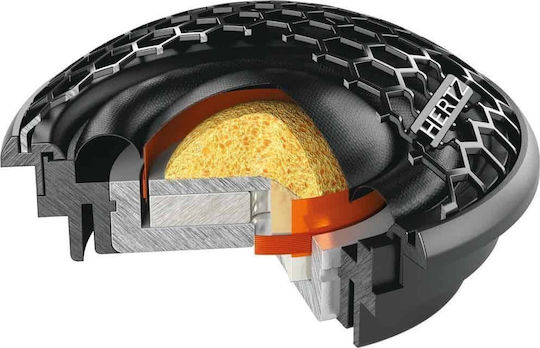

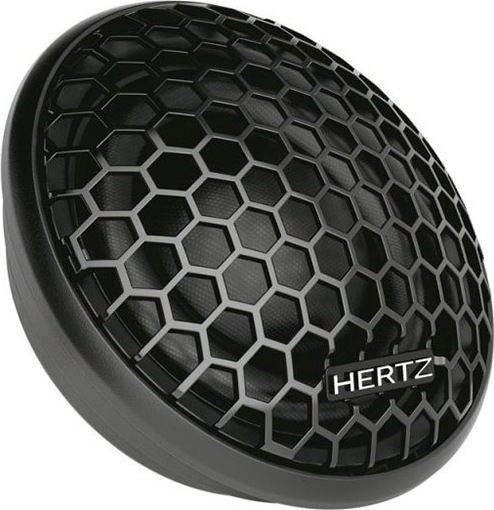

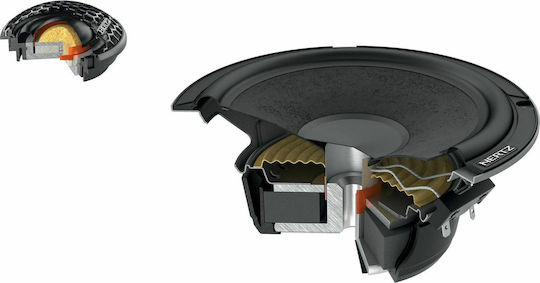

The Hertz CK 165L speaker set is a 2-way component system comprising a C 165 L woofer, a C26 tweeter, and passive crossovers for the woofer and tweeter. The woofer’s cone is made of non-pressed paper and delivers controlled low frequencies. Its reinforced magnetic system and long-excursion voice coil allow greater woofer travel while maintaining control.

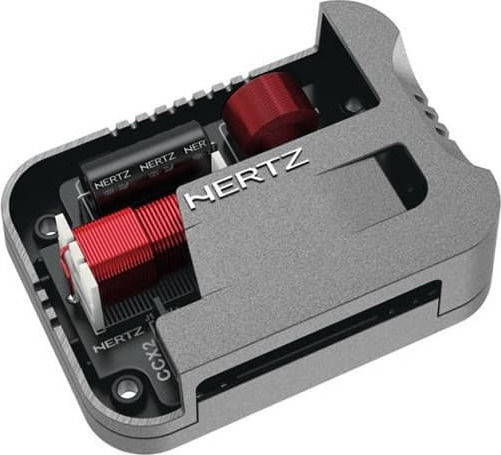

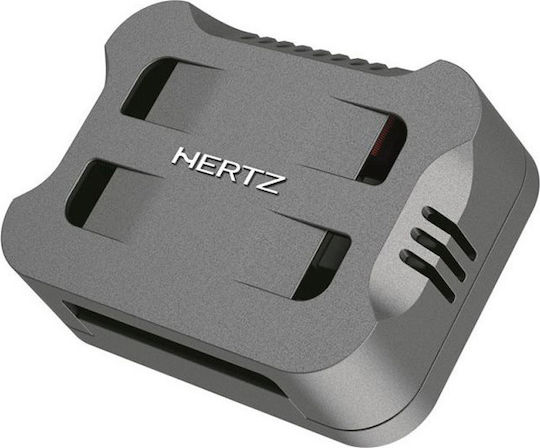

The tweeter crossover features a 12 dB/octave filter and two attenuation levels, while the woofer crossover features a 6 dB/octave filter and a large-diameter pure copper coil. The crossovers’ compact dimensions and wire connections make installation easier.
- Type: 2-way component system
- Diameter: 165 mm (6.5")
- RMS power: 100 W
- Peak power: 300 W
- Impedance: 4 ohm
- Sensitivity: 92 dB SPL (tweeter), 91 dB SPL (woofer)
- Frequency response: 50 Hz – 22.5 kHz
- Tweeter diaphragm diameter: 26 mm (1")
- Woofer voice coil diameter: 25 mm (1")
- Tweeter voice coil diameter: 20 mm (0.8")
- Crossover frequency: 3.8 kHz
- Woofer filter: 6 dB/octave
- Tweeter filter: 12 dB/octave
- Woofer weight: 0.973 kg
- Tweeter weight: 0.037 kg
- Crossover weight: 0.037 kg
- Product Number
- 02.01.0615
Dimensions
- Type
- 2 Way
- Shape
- Round
- Round Speakers Diameter
- 6.5 "
Technical Specifications
- Power (RMS)
- 100 W
- Nominal Impendance
- 4 ohm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
