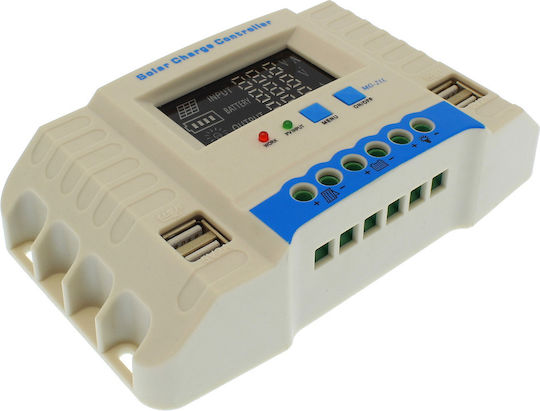

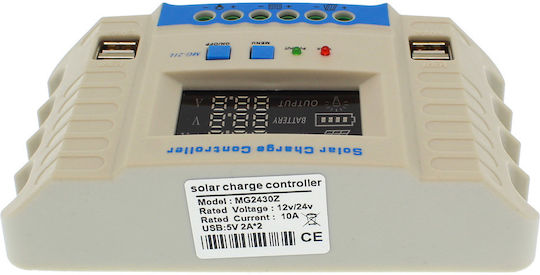

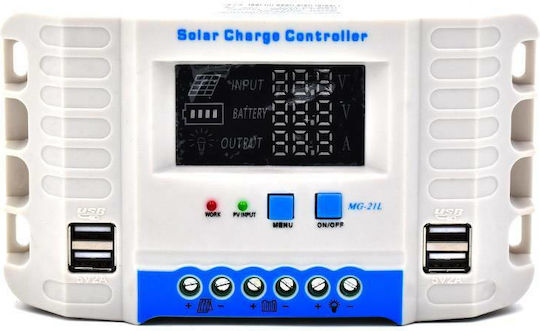

The Factory MG2430Z charge controller uses PWM technology and is suitable for 12 V and 24 V batteries. The LCD displays operating information, while the four USB ports provide a 5 V, 2 A output.
Charging takes place in three stages: bulk, absorption and float. The controller features protection against overcharging, over-discharging and short circuits.
- Charging type: PWM
- Battery voltage: 12 V / 24 V
- Input voltage: < 50 V
- Maximum input current: 10 A
- Full-voltage cutoff: 14.4 V / 28.8 V ± 0.2 V
- Minimum-voltage cutoff: 10.7 V / 21.4 V ± 0.2 V
- Load loss: 20 mA
- Temperature compensation: -4 mV/°C
- USB ports: 4
- USB output: 5 V, 2 A
- Display: LCD
- Charging stages: Bulk, absorption and float charging
- Operating temperature: up to 55 °C
- Protection: Overcharging, over-discharging and short circuits
- Dimensions: 16.1 × 9.5 × 4.2 cm
- Net weight: 0.374 kg
- Package contents: Charge controller, English user manual
- Type
- PWM
- Maximum Voltage
- 24 V
- Maximum Short Circuit Current
- 10 A
