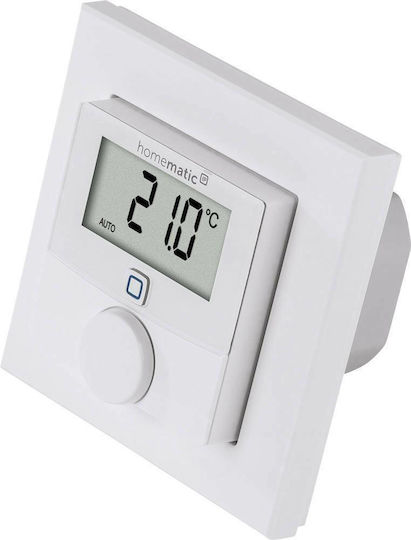

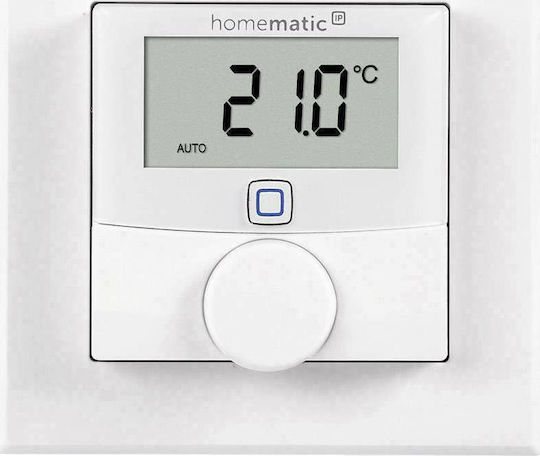

The HomeMatic HmIP-BWTH24 digital room thermostat controls 24 V underfloor heating actuators via a switching output. It allows the temperature to be adjusted in 0.5 °C increments and up to 6 heating profiles to be created, with up to 13 changes per day. The illuminated display shows the set and current temperatures, as well as humidity.

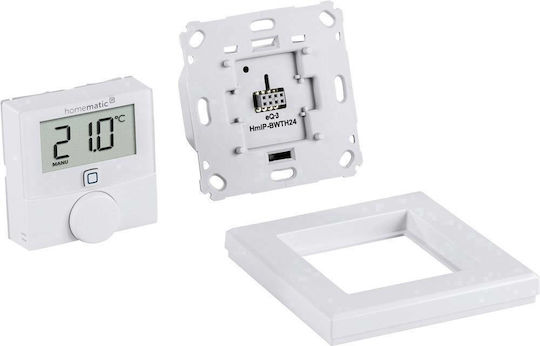

It is flush-mounted in standard wall boxes and is compatible with Berker, Busch-Jaeger, ELSO, Gira, Merten and JUNG frames. It supports wireless communication and remote control via the Homematic IP app, even without a connection to a central control unit.
- Type: Digital room thermostat
- Programming: Daily
- Temperature range: 0–50 °C
- Temperature increments: 0.5 °C
- Power supply: Mains-powered
- Operating voltage: 24 V
- Maximum switching power: 230 W
- Mounting: Flush-mounted
- Wireless communication: RF
- Maximum range: 130 m
- Frequency: 868 MHz
- Protection rating: IP20
- Dimensions: 8.6 × 8.6 × 5.4 cm
- Compatibility: Berker, Busch-Jaeger, ELSO, Gira, Merten and JUNG
- Certification: CE
- Product Number
- 150697A0
Dimensions
- Type
- Digital
- Placement
- Wall-Embedded
- Power Source
- Electric Power
- Width
- 8.6 cm
- Height
- 8.6 cm
- Length
- 5.4 cm
Features & Functions
- Touch Screen
- No
- Smart
- Yes
- Cooling-Heating
- No
- Temperature Range
- 0 - 50 °C
- Programming
- Dialy Programming
- Temperature Gradation
- 0.5 °C
Wireless Attributes
- Wi-Fi
- No
- Bluetooth
- No
- ZigBee
- No
- Z-Wave
- No
- RF
- Yes
- Smart Ecosystem
- Alexa, Google Home
