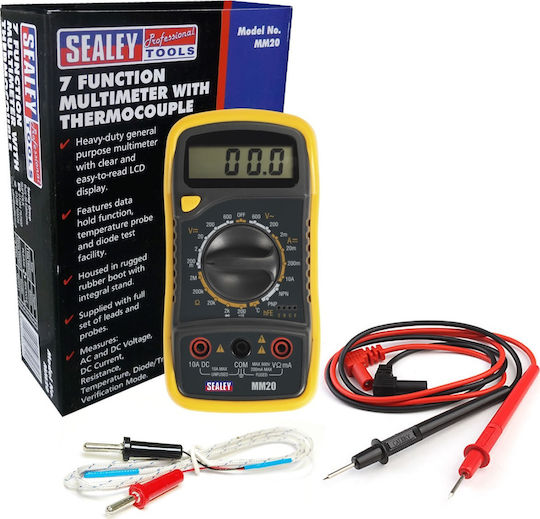

The Sealey MM20 digital multimeter measures AC and DC voltage, DC current, resistance and temperature. It features a data hold function, diode and transistor testing, and an audible continuity indicator. The LCD has 6 × 12 mm digits, while the multimeter is housed in a shock-resistant rubber case and has a built-in stand.
- Colour: Yellow
- AC voltage: 200 V, 600 V (accuracy ±2%)
- DC voltage: 200 mV (accuracy ±0.5%), 2 V, 20 V, 200 V, 600 V (accuracy ±0.8%)
- DC current: 2 mA, 20 mA (accuracy ±1%), 200 mA (accuracy ±1.2%), 10 A (accuracy ±2%)
- Resistance: 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ (accuracy ±0.8%), 2 MΩ (accuracy ±1.2%)
- Temperature: −40 °C to 1,000 °C (accuracy ±1% up to 400 °C and ±2% above 400 °C)
- Tests: Continuity with audible indicator, diode and transistor testing
- Functions: Data hold and low battery indicator
- Display: LCD, 6 × 12 mm digits
- Case: Rubber, shock-resistant
- Stand: Built-in
- Package contents: Test leads and probes, temperature sensor, 9 V battery
- Dimensions: 140 × 70 × 35 mm
- Weight: 260 g
- Compliance standard: IEC 1010
- Colour
- Yellow
- with LCD Screen
- Yes
- True RMS
- No
- with Buzzer
- No
