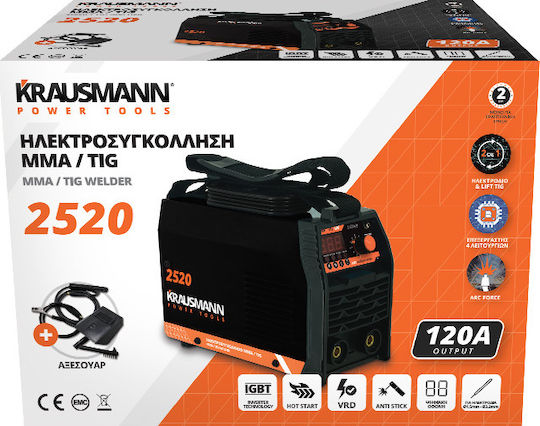

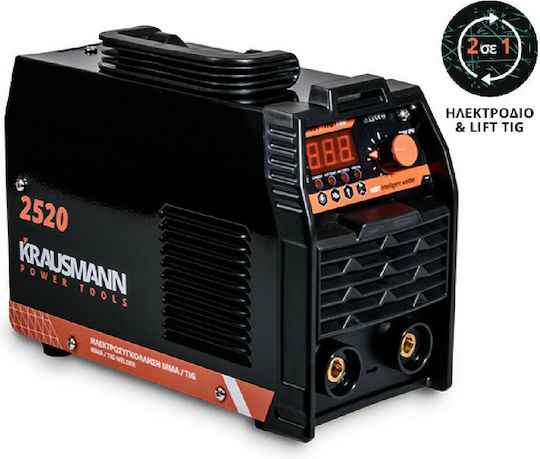

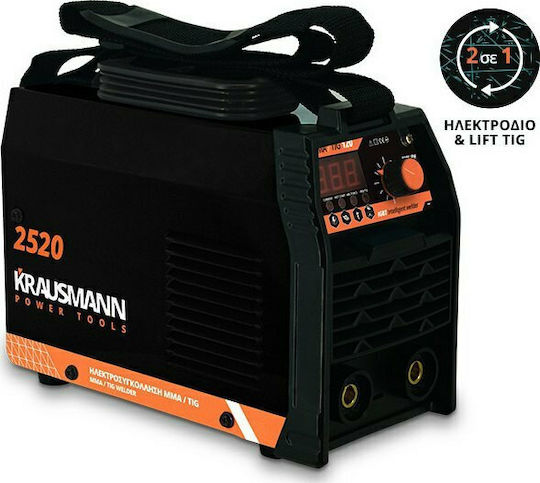

Krausmann 2520 Welding Machine TIG / MMA with Maximum Welding Current 120A and Duty Cycle 40%
Welding Machines

Krausmann 2520 Welding Machine TIG / MMA with Maximum Welding Current 120A and Duty Cycle 40%

Key features:

  • Voltage: 220V
  • Output Current: 20-120A
  • Maximum Power: 3.8 kVa
  • Efficiency: 80%
  • Weight: 2.7 Kg
See full description

  • Welding Current

    120

    Suitable for use on thin sheets and DIY constructions.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    220

    It is the supply voltage that the machine requires from the electrical grid.

  • Power

    3.8

    Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
  • See all
71 26 €
388 bonus Coins 388 bonus Coins
Delivery by Thu, 09 Jul
2,50 € to a Skroutz Point
Do you want it with Free shipping?
From Panemporiki Tools 4.6 (3)
4.6 (3 reviews)
Μυτιλήνη, Λέσβου
In-store pickup available
1 piece
See Tools on the page of Panemporiki Tools
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Product report

Description

Description

Capabilities

Welding MMA / TIG from the manufacturer Krausmann. The MMA electrode method creates thick and strong welds without the need for an external gas supply, making it ideal for welding outside the workshop. While the TIG method is suitable for slow welding on aluminum and stainless steel that requires detailed work and does not create splashes. It can operate continuously for 4 minutes at 120A before needing to stop to cool down. Therefore, you may need more time to melt thicker wires and make more passes on thick welds due to the low maximum Amps it supports. It is easily portable as it weighs 2.7kg.

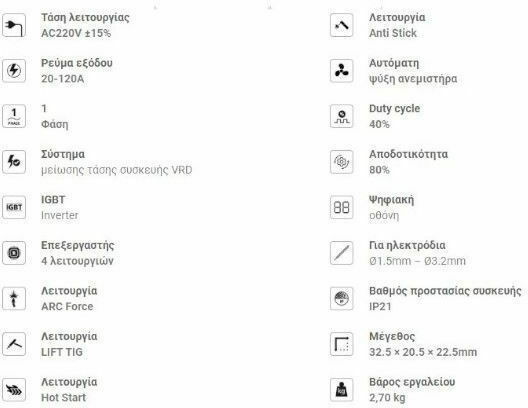

Features

  • Operating voltage AC220V ±15% Single-phase
  • Output current 20 to 120A
  • Device voltage reduction system VRD
  • IGBT Inverter
  • Processor with 4 functions
  • ARC Force function
  • LIFT TIG function
  • Hot Start function
  • Anti Stick function
  • Automatic fan cooling
  • Duty cycle 40%
  • Efficiency 80%
  • Digital display
  • For electrodes Ø1.5mm to Ø3.2mm
  • Device protection rating IP21
  • Dimensions 32.5×20.5×22.5mm
  • Tool weight 2.70kg

Included

  • Electrode holder
  • Ground cable 1.2m & clamp 1.8m
  • Welding mask
  • Welders' hammer / wire brush
  • Shoulder carrying strap

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
TIG, MMA

Type

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
120 A

Welding Current (max): 120


Suitable for use on thin sheets and DIY constructions.
Operation Cycle (max Ampere)
40 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
220 V

Supply Voltage: 220


It is the supply voltage that the machine requires from the electrical grid.
Power
3.8 kVA

Power: 3.8


Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
Maximum Electrode Diameter
3.2 mm

Maximum Electrode Diameter: 3.2


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Weight
2700 gr

Additional Features

Inverter
No
IGBT
Yes

IGBT


Allows the conversion of direct current (DC) voltage to alternating current (AC) or the output of direct current at a higher or lower intensity.
VRD
Yes

VRD


It is a voltage reduction device used in welding machines to improve user safety.
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
No
4T Mode
No
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
