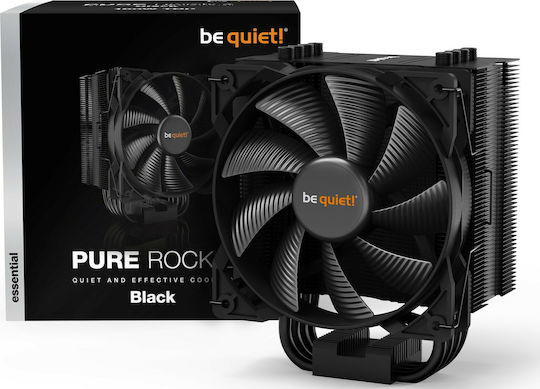

The Pure Rock 2 heatsink from be Quiet offers 150W TDP cooling with relatively quiet operation, suitable for demanding and overclocked systems. It features four 6mm heat pipes and a Pure Wings 2 fan.
The Pure Rock 2 heatsink from be Quiet offers 150W TDP cooling with relatively quiet operation, suitable for demanding and overclocked systems. It features four 6mm heat pipes and a Pure Wings 2 fan.
The Pure Rock 2 heatsink from be Quiet offers 150W TDP cooling with relatively quiet operation, suitable for demanding and overclocked systems. It features four 6mm heat pipes and a Pure Wings 2 fan.

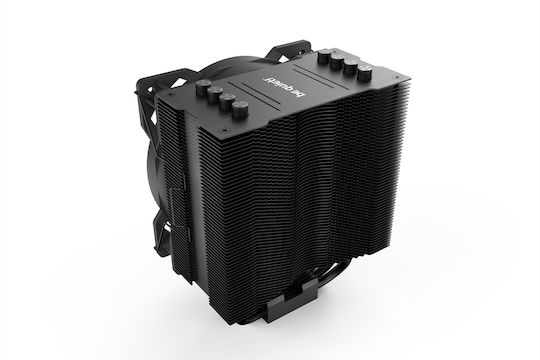

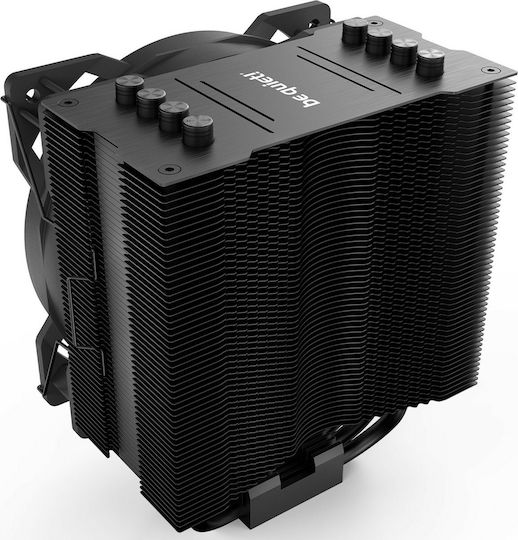

Convenient Design
The asymmetrical design does not obstruct the memory slots and saves space. It is also very convenient to install, thanks to the fact that you can mount it from above the motherboard.
Pure Wings 2 Fan
The Pure Wings 2 120mm PWM fan maintains the best balance between cooling performance and quiet operation. The fan's nine blades are optimized for airflow to reduce noise.
High cooling performance
The Pure Rock 2 is equipped with four 6mm heat pipes made of aluminum. This is key to its excellent cooling performance, as they transfer heat to optimal positions on the cooling fins.
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Very good cooler. I have the black version, which I bought for €45.99 along with the Arctic MX-4 2019 Edition (4 g).
With this thermal paste, the Ryzen 7 5700X has temperatures of 39 °C at idle and 61 °C at full load (either with a 20’ stress test or with gaming for over 3 hours), inside a relatively small case (Gamdias Talos E3, Midi Tower).
The cooler is not as bulky as some say (there are much larger ones with two fans), and it is almost silent. For a processor with a TDP of 65W, which can reach up to 105W, it is fully sufficient.
It supports Intel and AMD sockets and comes with a 3-year warranty. The cooler is officially rated for TDP up to 150 W but you can see all the technical specifications on the official Be Quiet website.
Be careful with installation! The brackets must be installed correctly, and the metal piece that is screwed in (the pressure base) must be placed with the “teeth” facing down so it fits properly and doesn’t “slip.” (At first, I had it the other way around and it didn’t fit properly on the processor.)
Before buying, check your processor’s TDP, as well as the PL1 and PL2 values. You can easily find them by typing your CPU model and “Specs” on Google (e.g. via techpowerup.com). This way you’ll know if this cooler is suitable for you or not.
Πολύ καλή ψύκτρα. Έχω τη μαύρη έκδοση, την οποία αγόρασα στα 45,99 € μαζί με την Arctic MX-4 2019 Edition (4 g).
Με αυτή τη θερμοαγώγιμη πάστα, ο Ryzen 7 5700X έχει θερμοκρασίες 39 °C σε idle και 61 °C σε full load (είτε με stress test 20’, είτε με gaming πάνω από 3 ώρες), μέσα σε σχετικά μικρό κουτί (Gamdias Talos E3, Midi Tower).
Η ψύκτρα δεν είναι τόσο ογκώδης όσο λένε κάποιοι (υπάρχουν πολύ μεγαλύτερες με δύο ανεμιστήρες), και είναι σχεδόν αθόρυβη. Για επεξεργαστή με TDP 65W, που μπορεί να φτάσει μέχρι 105W, είναι πλήρως επαρκής.
Υποστηρίζει sockets Intel και AMD και συνοδεύεται από 3 χρόνια εγγύηση. Η ψύκτρα είναι επίσημα rated για TDP έως 150 W αλλα μπορείτε να δείτε όλα τα τεχνικά χαρακτηριστικά στο επίσημο site της Be Quiet..
Προσοχή στην τοποθέτηση! Τα brackets πρέπει να μπουν σωστά, και το μεταλλικό κομμάτι που βιδώνεται (η βάση πίεσης) πρέπει να είναι τοποθετημένο με τα “δόντια” προς τα κάτω ώστε να πιάσει σωστά και να μην “γλιστράει”. (Στην αρχή το είχα βάλει ανάποδα και δεν εφάρμοζε σωστά πάνω στον επεξεργαστή.)
Πριν αγοράσετε, δείτε το TDP του επεξεργαστή σας, καθώς και τις τιμές PL1 και PL2. Μπορείτε να τις βρείτε εύκολα γράφοντας το μοντέλο της CPU και “Specs” στο Google (π.χ. μέσω techpowerup.com). Έτσι θα ξέρετε αν σας καλύπτει ή όχι η συγκεκριμένη ψύκτρα.
On an AMD Ryzen 7 5700X 3D with the stock cooler, it's always 75-95 max, with this one it's always 45-80 max, so it's worth it. Truly silent. Large in size. Not so easy to install, but ok. Indeed, it does not have a backplate for AMD.
Σε AMD Ryzen 7 5700X 3D με τη μαμά ψυκτρα μόνιμα 75-95 max, με αυτή μόνιμα 45-80 max, οπότε αξίζει. Όντως αθόρυβη. Μεγάλη στο μέγεθος. Όχι και τόσο εύκολη η εγκατάσταση, αλλά οκ. Όντως δεν έχει backplate για AMD.
Worked on a 7800X3D temporarily due to my cooler issue. And it worked with the default settings of Gigabyte, which hits 100% fan speed above 60 degrees Celsius. Anyway, the processor never reached its limits, and surprisingly I could hardly hear the cooler - definitely not an annoying sound in any case.
It is very honest for budget systems and weaker processors in general, but if someone is looking to get a processor-heater like 13th or 14th generation Intel i7, i9, this is definitely not the solution. You will definitely see thermal throttling.
Bottom line: Silent, satisfactory for the money, suitable for use in systems where the budget is in line with its price.
Δούλεψε πάνω σε έναν 7800X3D προσωρινά λόγω προβλήματος της ψύκτρας μου. Και δούλεψε με τα default settings της Gigabyte που πάνω από τους 60 βαθμούς Κελσίου χτυπάει 100% fan speed. Όπως και να 'χει, ο επεξεργαστής δεν έφτασε ποτέ στα όρια του και τη ψύκτρα παραδόξως δεν την άκουγα σχεδόν καθόλου - σίγουρα όχι κάποιος εκνευριστικός ήχος σε κάθε περίπτωση.
Είναι τιμιότατη για budget συστήματα και πιο αδύναμους επεξεργαστές γενικά, αλλά εάν κανείς κοιτάει να πάρει επεξεργαστή-θερμάστρα όπως 13ης ή 14ης γενιάς Intel i7, i9, σίγουρα δεν είναι αυτή η λύση. Θα δείτε thermal throttling σίγουρα.
Bottom line: Αθόρυβη, ικανοποιητική για τα λεφτά της, κατάλληλη για χρήσεις σε συστήματα που το budget είναι ανάλογο της τιμής της.
With the stock fan + 5600x I was playing PUBG at 85 degrees. Now it doesn't go above 65 degrees no matter what. It's kind of cute, it's not huge although it does take up some space.
It would have been easier if I had taken out the whole motherboard, the graphics card, and the RAM and then installed the cooler, which obviously I didn't do and I struggled. Other than that, everything is perfect.
με stock fan + 5600x έπαιζα pubg στους 85 βαθμούς. Πλέον πάνω από 65 βαθμούς δεν ανεβαίνει με τίποτα. Ομορφούτσικο είναι, τεράστιο δεν είναι αν και πιάνει λίγο χώρο.
θα βόλευε να έβγαζα όλη την μητρική έξω, την κάρτα γραφικών και τις ram και μετά να βάλω την ψήκτρα που προφανώς δεν το έκανα και ζορίστηκα. κατά τα άλλα όλα τέλεια.
My case is not very big or wide, particularly. It is a classic Midi case and fits well while leaving a satisfactory gap from the glass.
It keeps the 7600x at good temperatures and has been tested for many days over 7-8 hours. It doesn't make much noise; if you go close to the case, you can hear the fans, yes, but from the position where you play, I can't say that. I have it in push-pull configuration and it's just fine. Neither flashy nor excessive, nor minimal. It doesn't have weird colors like classic Noctua.
Το κουτί μου δεν είναι πολύ μεγάλο ή πλατύ ιδιαίτερα. Είναι κλασικό Midi κουτί και χωράει και αφήνει και ικανοποιητικό κενό από το τζάμι.
Κρατάει τον 7600x σε καλές θερμοκρασίες κι έχει δοκιμαστεί πολλές μέρες άνω των 7-8 ωρών. Δεν ακούγεται ιδιαίτερα, αν πας κοντά στο κουτί ακούς τις φτερωτές ναι, αλλά από τη θέση που παίζεις όχι μπορώ να πω. Τον έχω push pull και είναι μια χαρά. Ούτε φαντεζί, υπερβολικός, ούτε μίνιμαλ. Δεν έχει κουλά χρώματα όπως κλασικά οι noctua.
It is very good for the price and cools the processor much better than I will personally need, and it never exceeds 65°C. Also, it is not ugly and is a simple plain black.
Είναι πολύ καλό για την τιμή και ψύχει τον επεξεργαστή πολύ καλύτερα απο'τι θα χρειαστώ εγώ προσωπικά και δεν ξεπερνάει πότε μα πότε 65°C. Επίσης δεν είναι κακάσχημο και είναι ένα απλό σκέτο μαύρο.
After 4 years of working on a B550 Tomahawk with a Ryzen 5600X and maxing out at 70 degrees, it now runs with a Ryzen 7 5700X3D and stable temperatures again maxing out at 70 degrees, it is vfm. I can't read "found on the RAM" and other reviews when "you" hypothetically haven't done your job properly and start a build without knowing measurements of what components you will put on it, and the evaluation for this specific product comes out negative. First, you do your market research and then you shop. 5 stars!!
Μετά απο 4 χρόνια να δουλευει σε Β550 Tomahawk με Ryzen 5600X και μαξ τους 70 βαθμους, πλεον τρεχει με Ryzen 7 5700X3D και σταθερες θερμοκρασιες ξανα μαξ τους 70 βαθμους, ειναι vfm. Δεν μπορω να διαβαζω ''βρηκε στις ραμ'' και αλλες κριτικες οταν ΄΄εσυ΄΄ υποθετικα δεν εχεις κανει σωστη δουλεια και ξεκινας ενα build χωρις να ξερεις μετρησεις στο τι πραγματα θα βαλεις πανω και η αξιολογηση για το συγκεκριμενο προιον να ερχεται αρνητικη.Πρωτα κανεις την ερευνα αγορας σου και μετα ψωνιζεις. 5 αστεράκια!!
For 40 euros that I paid, it is not worth the hassle I went through. The Ruzen 7 5800x continues to have quite high temperatures and the installation did not fit because it was hitting the RAM
Για 40 ευρώ που την πήρα δεν αξίζει την ταλαιπωρία που πέρασα. Ο Ruzen 7 5800x συνεχίζει να έχει αρκετά υψηλές θερμοκρασίες και δεν χωρούσε η εγκατάσταση της γιατί έβρισκε στις ram
Installation is very easy and is done with the AMD backplate (for AM4/AM5 sockets). I am -10 degrees idle compared to the AMD Wraith Stealth (I have 40 degrees in July). I will come back for temperatures under full load. FOR CASE OWNERS WITH A MAXIMUM COOLER HEIGHT OF 150mm: In the Corsair SPEC-04 which takes up to 150mm height, even though this one is 155mm, it fit normally with half an inch gap from the case. So consider 155mm as the maximum height. The maximum temperature I observed was 55 degrees for now.
Η τοποθέτηση είναι πανεύκολη και γίνεται με το μαμά backplate της AMD (για sockets AM4/AM5). idle είμαι -10 βαθμούς από την Wraith Stealth της AMD (40 βαθμούς έχω Ιούλιο μήνα). Θα επανέλθω για θερμοκρασίες σε full load. ΠΡΟΣ ΙΔΙΟΚΤΗΤΕΣ ΚΟΥΤΙΩΝ ΜΕ ΜΕΓΙΣΤΟ ΥΨΟΣ ΨΥΚΤΡΑΣ 150mm: Στο Corsair SPEC-04 που παίρνει μέχρι 150 χιλιοστά ύψος, παρ' όλο που αυτή είναι 155, χώρεσε κανονικά και με μισό πόντο κενό από το κουτί. Οπότε το 155 θεωρήστε το σαν το μέγιστο ύψος. Η μέγιστη θερμοκρασία που παρατήρησα ήταν 55 βαθμοί προς το παρόν.
This fan is quiet, performant and keeps the ryzen7 5800X always under 80 degrees. It idles at 40~50.
the quality of this product is simply amazing! it might be tricky to mount (just like every tower cooler) but in the end its totally worth it. huge improvement from the cpu's stock counterpart
personally i always remove the preapplied thermal paste. So i used the DC2 be quiet! thermal paste instead
It was installed on a Ryzen 3600.
It is not difficult to install as I put it directly into the case without removing the motherboard.
- Attention, it does not have an AMD backplate -
You will need the old one, the basic one.
And I consider this a flaw as it has everything else.
...............
- Now, regarding performance -
With the stock cooler, I was at 4060mhz frequency.
Temperature ranged from 77-80 under load /
85-92 in games.
..................
With the bequiet cooler, it went to 58-62 under load /
65-72 and 77 maximum.
The processor automatically reached a frequency of 4172mhz.
For 45 euros, it is very good.
Μπήκε σε Ryzen 3600
Δεν είναι δύσκολη στην τοποθέτηση τής καθώς την έβαλα κατεφτιαν μέσα στο κουτί χωρίς να αφερεσω μητρική.
- προσοχή δεν έχει backplate τής AMD-
Θα πρέπει να έχετε το παλιό το βασικό δηλαδή.
Καί τό θεωρώ φάουλ καθώς έχει όλα τα άλλα.
...............
-Στης επιδώσεις τώρα-
Στη στοκ ψύκτρα έιμουν στα 4060mhz συχνότητα
θερμοκρασία από 77-80load /
85-92 στα game.
..................
Με το κουλερ τής bequiet πήγε 58-62load /
65-72 κ' 77 Μαξ.
Ο επεξεργαστής πήγε αυτόματα στα 4172mhz συχνότητα.
Για 45ε είναι πολύ καλή.
I got it for a desktop that had an AMD Ryzen 5600G. It does a particularly good job with cooling and makes the computer much quieter. The only problem I had was with the installation. The assembly was easy (except that it took a little trick to lock the fan with the clips on the heatsink). The big problem I had was screwing the "bridge" to lock the heatsink on top. If it doesn't sit well on the processor, the "bridge" cannot be screwed properly.
Την πήρα για έναν desktop που είχε έναν AMD Ryzen 5600G. Κάνει ιδιαίτερα καλή δουλειά με την ψύξη και κάνει τον υπολογιστή πολύ πιο αθόρυβο.Το μόνο πρόβλημα που είχα ήταν στην εγκατάσταση. Η συναρμολόγιση ήταν εύκολη (εκτός το ότι ήθελε λίγο μια πατέντα για να κλειδώσει ο ανεμιστήρας με τα clip στην ψήκτρα). Το μεγάλο πρόβλημα που είχα ήταν το βίδωμα της "γέφηρας" ώστε να κλειδώσει η ψήκτρα πάνω.Αν δεν καθήσει καλά πάνω στον επεξεργαστή, δεν μπροεί να βιδωθεί η"γέφηρα" καλά.
Excellent economical choice for cooling processors with moderate requirements. It cools a Ryzen 5 3600 at its factory settings without overclocking to 64 degrees with a room temperature of 28 degrees.
The fan is quiet during gaming, at 100% it is slightly noticeable.
Εξαιρετική οικονομική επιλογή για την ψύξη μέτριων σε απαιτήσεις επεξεργαστών. Ψύχει έναν Ryzen 5 3600 στις εργοστασιακές του ρυθμίσεις χωρίς overclocking στους 64 βαθμούς με θερμοκρασία δωματίου στους 28.
O ανεμιστήρας είναι αθόρυβος σε gaming , σε 100% κάνει ελαφρά αισθητή την παρουσία του.
Top-notch cooler, for me, for its price. In the package, it has 3 separate bags with brackets, for Intel, AMD, Intel 1700, and a thermal pad. I tested it for an hour, with an i5 10600, idle and surfing, temperature at 20-22 degrees, without the fan rotating. It worked when I played a game. I didn't hear any noise, temperature at 38-42. It can also accommodate a second fan.
Unfortunately, I didn't calculate its height and I can't use it. I have 2 fans on the side of the case and it doesn't fit. It requires at least 16 centimeters of space.
Koρυφαια ψηκτρα, για μενα, στα λεφτα της. Στην συσκευασια εχει 3 ξεχωριστα σακουλακια με brackets, για intel, amd, intel 1700, και thermal pad. Tην δοκιμασα για μια ωρα, με i5 10600, idle και serfing, θερμοκρασια 20-22 βαθμους, χωρις να περιστρεφεται ο ανεμιστηρας. Λειτουργησε οταν εβαλα παιχνιδι. Θορυβο δεν ακουσα, θερμ. 38-42. Περνει και δευτερο ανεμιστηρα.
Διστυχως δεν υπολογισα το υψος της και δεν μπορω να την χρισημοποιησω. Εχω 2 φανακια στο πλαινο του κουτιου και δεν χωρα. Θελει τουλαχιστον 16 εκατοστα χωρο.
Guys, I am not so satisfied. On a Ryzen 5 7600x, it runs around 50 degrees in idle, 65-78 degrees in normal use, and 92-96 degrees under full load. And I didn't see any difference with both the stock paste and the MX5 that I tried. The case is very clean from dust with good airflow, a be quiet Pure base 500 DX with 5 140mm fans on top. I don't know what else to do, maybe I'll have to switch to liquid cooling
Παιδιά εγώ δεν είμαι τόσο ευχαριστημένος, σε ryzen 5 7600x σε idle παίζει γύρω στους 50 βαθμούς, σε απλή χρήση 65-78 και σε full load 92-96.. Και με την στοκ πάστα και με την MX5 που δοκίμασα δεν είδα διαφορά.. Το κουτί πεντακάθαρο από σκόνες με πολύ καλή ροή ένα be quiet Pure base 500 DX με 5 14αρηδες πάνω.. Δεν ξέρω τι άλλο να του κάνω ίσως αναγκαστώ να γυρίσω σε υδροψυξη
The installation is relatively easy, I have it on a Ryzen 7 5700x STOCK with its pre-applied thermal paste without touching anything, and the processor has never exceeded 65 degrees in any usage so far. It comes with 4 fan mounting brackets to add a second fan. It is quiet both at low and high speeds.
Η εγκατάσταση της είναι σχετικά εύκολη την έχω πάνω σε Ryzen 7 5700x STOCK με την προεγκατεστημένη πάστα της χώρις να πειράξω τίποτα και ο επεξεργαστής δεν έχει ξεπεράσει ποτέ του τους 65 βαθμούς σε ότι χρήση και αν τον έχω κάνει ως τώρα. Έρχεται με 4 fan mounting "σιδεράκια" για να βάλεις και 2ο FAN. Είναι αθόρυβη και σε χαμηλές και σε υψηλές στροφές.
One of the two screws was missing to support the "bridge" on the motherboard. I had to find a similar one from my old computer and improvise...
Έλειπε η μία από τις δύο βίδες για στήριξη της "γέφυρας" πάνω στη motherboard. Αναγκάστηκα να βρω παρόμοια από τον παλιό μου υπολογιστή και να κάνω πατέντα...
It's on an i7 6700 (yes, it sat with the stock for 7 years)
I haven't seen it go above 55c, with a very mild fan curve
After some benchmarks, peak 57w, 680rpm
73w 700rpm peak in prime95 blend
85w 770rpm and 59c in prime95 small (the heaviest setting, see image)
Of course, well-ventilated case with 2 arctic P140mm fans in front and 1 P120mm in the back, with my own curve, a little strong, to give the gpu enough air (otherwise it would have higher temperatures in prime95)
The installation was "ok", the plate that goes from the back has 2 sets of holes and it was easy for the screws to "slip" into the wrong one or two, so it required attention before tightening.
The fan also required more force than I expected to fit, since I didn't want to bend the blades.
It makes accessing the ram a little difficult but it can't be helped with a cooler of this size, and if necessary you can remove the fan, but you don't want to.
Είναι πάνω σε i7 6700 (ναι καθόταν με τη στοκ 7 χρόνια)
Δεν έχω δει να ξεπερνάει τους 55c, με πολύ ήπιο fan curve
Μετά απο μερικά benchmarks, peak 57w, 680rpm
73w 700rpm peak σε prime95 blend
85w 770rpm και 59c σε prime95 small (το πιό βαρύ setting, βλέπε εικόνα)
Φυσικά καλά αερισμένο case με 2 arctic P140mm fans μπροστά και 1 P120mm πίσω, με δικό μου curve, λίγο δυνατό, για να έχει η gpu αρκετό αέρα (αλλοιώς θα είχε πιο ψηλές θερμοκρασίες στο prime95)
Η εγκατάσταση ήταν "οκ", η πλάκα που πάει απο πίσω έχει 2 σετ απο τρύπες και ήταν εύκολο οι βίδες να "γλυστρήσουν" στη λάθος σε μια ή δυο, οπότε ήθελε προσοχή πριν το σφύξημο.
Το fan επείσης ήθελε παραπάνω δύναμη απο'τι περίμενα για να μπεί, μιας και δεν ήθελα να στραβώσω τα πτερύγια.
Κάνει λίγο δύσκολη τη πρόσβαση στη ram αλλά καλύτερα δεν γίνεται με ψύκτρα τετοιου μεγέθους, και στην ανάγκη βγάζεις το fan, αλλά δεν θες.
This is not what I wanted. It has a Pure Wing fan, which is the budget series of be quiet. What does this mean? It makes noticeable noise at times, which bothers me a lot. You can try changing the fan to a Silent Wing 3, but the cost is around 25€. So overall, it's worth going for a Dark Rock 4 cooler.
I will now try the Dark Rock 4 to see what happens with the included Silent Wing 3 fan.
Δεν ειναι αυτο που ηθελα. Εχει ανεμιστηρι pure wing, που ειναι η budget σειρα της be quiet. Τι σημαινει αυτο? Κανει ωρες ωρες αισθητο θορυβο που εμενα με ενοχλει αφανταστα. Μπορειτε να δοκιμασετε να αλλαξετε ανεμιστηρι σε silent wing 3, αλλα το κοστος ειναι κοντα 25€. Αρα συνολικα αξιζει να πας σε dark rock 4 ψυκτρα.
Θα δοκιμασω τωρα τον dark rock 4 να δω τι γινεται εκει που ερχεται με silent wing 3.
It only took me 10 minutes to install it, having already watched some videos on how to do it. It already has paste so you don't have the stress of proper application. It's completely silent as expected and has lowered the temperature of the processor (ryzen 5 5600g) from 85-90 degrees it reached in heavy settings gaming (3060ti), to 65-75. I think it's worth the money and more. In the extra positives, it doesn't require the motherboard backplate to be removed, only for amd this applies, which means that the cooler can be installed without having to disassemble the entire desktop.
Μου πήρε μόλις 10 λεπτά να την βάλω, έχοντας ήδη δει κάποια βίντεο για τον τρόπο εισαγωγής. Έχει ήδη πάστα όποτε δεν έχεις και το άγχος σωστής εφαρμογής. Είναι εντελώς αθόρυβη όπως αναμενόταν και έχει ρίξει τη θερμοκρασία του επεξεργαστή (ryzen 5 5600g) από 85-90 βαθμούς που έπιανε σε heavy settings gaming (3060ti), σε 65-75. Θεωρώ ότι για τα λεφτά της αξίζει και με το παραπάνω. Στα έξτρα θετικά ότι δεν χρειάζεται να βγει το backplate της μητρικής, μόνο για amd ισχύει αυτό, που σημαίνει ότι η εγκατάσταση της ψύκτρας μπορεί να γίνει και χωρίς να λυθεί όλο το desktop.
Excellent cooler, installed on an Intel i5-12500. I was lucky because it came with the bracket for socket 1700. Be Quiet! states on their website that all new coolers from April 2022 onwards come with the bracket for the new Intel processors, otherwise you can send them proof of purchase for the processor and cooler and they will send it to you.
Installation is not difficult, it comes with a manual but there are also informative videos on youtube.
So far, temperatures are very low and the cooler is quiet.
Εξαιρετική ψυκτρα, τοποθετήθηκε σε Intel i5-12500. Ήμουν τυχερός γιατί είχε μέσα το bracket για το socket 1700. Η Be Quiet! στη σελίδα της αναφέρει ότι όλες οι νέες ψυκτρες από τον Απρίλιο του 2022 και έπειτα έρχονται μαζι με το bracket για τους νέους επεξεργαστές της Intel, αλλιώς τους στέλνεις από τη σελίδα τους τις αποδείξεις για αγορά επεξεργαστή και ψυκτρας και στο στέλνουν.
Η τοποθέτηση δεν είναι δύσκολη, έχει φυλλάδιο με οδηγίες αλλά υπάρχουν και ενημερωτικά βίντεο στο youtube.
Μέχρι τώρα οι θερμοκρασίες είναι πολύ χαμηλές και η ψυκτρα αθόρυβη.
Very powerful cooler!! Definitely VFM (value for money) as it maintains better temperatures than many others in the same range! Tested on Ryzen 5 3600.
πολυ δυνατη ψυκτρα!! VFM σιγουρα στα λεφτα της γιατι κραταει καλυτερες θερμοκρασιες απο πολλες αλλες στο ιδιο range! δοκιμασμενη σε ryzen 5 3600
For a 6-core Ryzen 5 5600x, the be quiet! Pure Rock 2 is a really good choice at around 35-40 euros. It looks great and will fit in most builds. In terms of temperatures, even in the middle of summer without air conditioning and with a case temperature of 40 degrees, it averaged 66°C and maxed out at 72°C during a half-hour full load Prime95 stress test. In gaming, with satisfactory airflow in the case, expect temperatures to range from 50 to 65 degrees depending on the game. Overall, it's quiet and efficient, and I think it's a great choice for a 6-core Ryzen 5 (65-85 watt TDP). The installation is easy, although connecting the fan to the heatsink can be a bit tricky due to the lack of elasticity in the metal clips. The heatsink's dimensions are excellent for a 120mm fan cooler, and it has a satisfactory offset, so there should be no compatibility issues with tall RAM sticks. It fit easily in my relatively small Corsair 100R case, which has a maximum CPU cooler height of 150mm (the Pure Rock 2 is 155mm). However, it's always a good idea to check if it will fit in your case before purchasing.
Λοιπον για 6πυρηνο ryzen 5 5600x ειναι πραγματικα μια πολυ καλη επιλογη στα 35-40 ευρω.
Αισθητικα ειναι ομορφη και θα ταιριαξει στα περισσοτερα builds, απο θερμοκρασιες μεσα στο κατακαλοκαιρο χωρις air condition και με θερμοκρασια κουτιου 40βαθμους και με μιση ωρα ωρα full load prime95 stress test average 66°C και max 72°C, σε gaming και με ενα ικανοποιητικο air flow στο κουτι να περιμενετε οι θερμοκρασιες να παιζουν απο 50 μεχρι 65 βαθμους αναλογως το game που προσωπικα δε βλεπω τον λογο καποιος να αναζητησει κατι πιο ικανο για τη ψυξη ενος επεξεργαστη αυτης της κατηγοριας. Περαν αυτων... δεν θα την ακους σε χαμηλες στροφες και σε full load ειναι πολυ αθορυβη σε σημειο που με εξεπληξε.
Στο θεμα της εγκαταστασης τωρα... πολυ ευκολη η συνδεση της ψυκτρας στη μητρικη και με σωστες οδηγιες απο την be quiet (εχει ανεβασει και official video στο Υoutube για το mounting) ωστοσο η συνδεση του ανεμιστηρα στην ψυκτρα εχει εναν βαθμο δυσκολιας γιατι τα σιδερακια που χρησιμοποιει δεν εχουν ελαστικοτητα και θελουν αρκετη πιεση για να λυγισουν. Οι διαστασεις της ψυκτρας ειναι εξαιρετικες για 120mm fan cooler και εχει ικανοποιητικο offset που σημαινει οτι και με τοποθετημενο τον ανεμιστηρα της η ψυκτρα θα εχει αποσταση απο τα ram slots οποτε δεν εχετε θεμα συμβατοτητας με ψηλες μνημες (δειτε και στη φωτο). Στο δικο μου build χωρεσε ανετα σε σχετικα μικρο κουτι corsair 100R (η corsair για το 100R δινει max 150mm cpu cooler height και η pure rock 2 είναι 155mm) οποτε υπαρχει μεγαλη πιθανοτητα να χωρεσει και στο δικο σας κουτι (αλλα καλο θα ηταν να το τσεκαρετε αυτο πρωτα)
Συνοπτικα, αθορυβη, ποιοτικη, ομορφη και τη θεωρω πολυ καλη επιλογη για 6core Ryzen 5 (65-85 watt TDP)
The only thing that gave me trouble was the pressure I had to apply to the brackets to fit the fan on the side. Otherwise, it's very good, used in silent mode and I've never heard it on an i5 10400.
Το μόνο που με δυσκόλεψε ήταν η πίεση που έπρεπε να βάλω στα μπράκετ για να μπεί ο ανεμιστήρας στο πλάι. Κατά τα άλλα πολύ καλή, χρησιμοποιείται σε silent mode και δεν την έχω ακούσει ποτέ πάνω σε έναν i5 10400.
I don't know if I was the only one who had trouble installing this particular cooler. I have a Gigabyte AM3+ motherboard and tried many tricks to get it installed, including using some parts from my old cooler. The two stars are deducted for this reason. On the positive side, it is quiet and cools the AMD FX6350 satisfactorily.
Δεν γνωρίζω αν είχα μόνο εγώ πρόβλημα εγκατάστασης της συγκεκριμένης ψήκτρας. Έχω μια μητρική κάρτα Gigabyte AM3+ και έκανα πολλές πατέντες για να εγκατασταθεί, όπως και χρησιμοποίησα πολλά από τα ανταλλακτικά της παλιάς μου ψήκτρας. Τα δύο αστέρια αφαιρούνται γι'αυτό το λόγο. Στα θετικά είναι αθόρυβη και ψύχει ικανοποιητικά το AMD FX6350.
It has been installed on an Intel Core i7-12700K processor (Motherboard: Gigabyte Z690 Aero G). If you want to install the cooler on a 12th generation Intel processor, you will need a base for the LGA 1700 socket (which is not included in older packages). If the cooler box does not include the base, you can fill out the form on the Be Quiet! website (LGA-1700 Mounting Kit) and they will send it to you for free.
Έχει μπει πάνω σε επεξεργαστή Intel Core i7 - 12700K
(Motherboard: Gigabyte Z690 Aero G). Σε περίπτωση που θέλετε να τοποθετήσετε την ψύκτρα σε επεξεργαστή Intel 12ης γενιάς, θα χρειαστεί βάση για LGA 1700 socket (που δεν περιλαμβάνεται στις παλιότερες συσκευασίες). Αν το κουτί της ψύκτρας δεν περιλαμβάνει την βάση, τότε μπορείτε να συμπληρώσετε την φόρμα στη σελίδα της Be Quiet! (LGA-1700 Mounting Kit) και να σας τη στείλουν δωρεάν.
