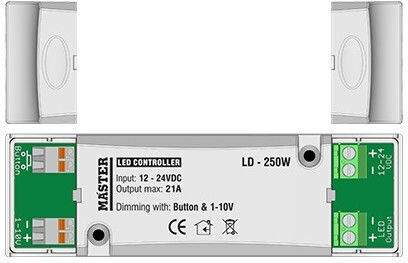

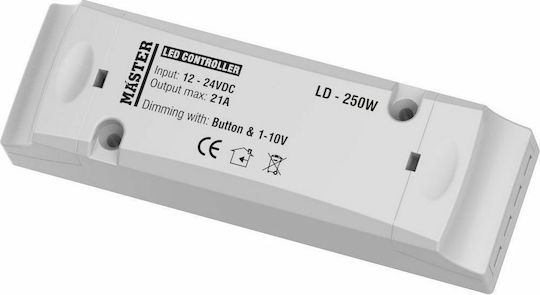

The LED Controller LD-250W is designed for regulating the brightness of lighting in professional spaces using LED lighting fixtures of 12-24V DC, such as LED strips, LED bulbs, and projectors.

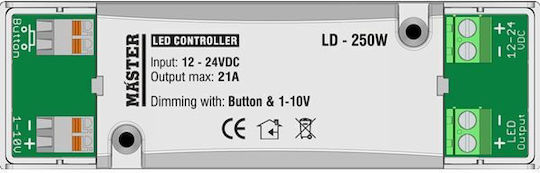

It features:

• Input (INPUT 12-24V DC) from a power supply
• Output (OUTPUT 12-24V DC / 21A) for the electrical load
• Input for control via a button
• Input for control via 1-10V protocol

Advantages:

• Complete control over lighting intensity with linear dimming
• Control options via Button & 1-10V Input (automatic transition)
• Soft Start function
• Electronic protection from short circuits, overheating, and overvoltage with automatic reset to operational status

OPERATING VOLTAGE: 12-24V DC

CONTROL POWER PER CHANNEL: 250W/12V & 500W/24V

ENVIRONMENTAL TEMPERATURE CONDITIONS:

• Operation: -20°C to +50°C
• Storage: -20°C to +60°C

WIRING TERMINALS: Single-core - Multi-core ∅0.5 mm to ∅3.5 mm

FUNCTION: Soft Start

PROTECTION: Electronic (protection from overvoltage, overheating, and short circuit with automatic reset to operational status)

CONTROL LOAD: Dimmable LED bulbs, LED strips, Halogen bulbs

Method of Operation: Button: From one or more parallel connected buttons.

1-10V Protocol: From digital systems and lighting controllers (dimmers) that have a 1-10V communication protocol

Installation Instructions:

• Installation must be carried out by qualified personnel.

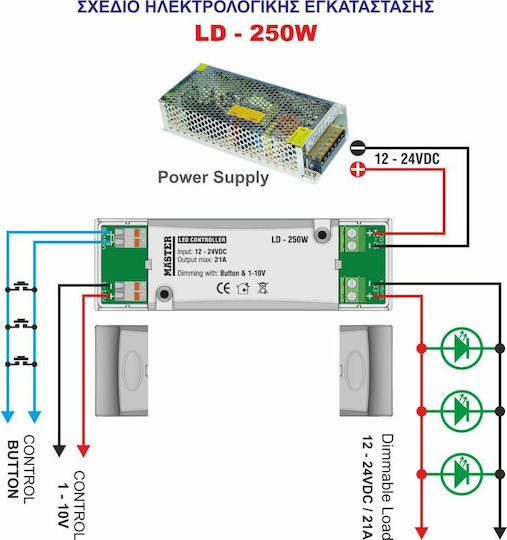

• Install the product according to the electrical installation diagram.

European Community Directives: The product complies with the mandatory directives 73/23/EEC regarding low voltage and 89/336/EEC regarding electromagnetic compatibility.
