• 1100W motor: Reliable 230V single-phase electric motor for consistent performance during demanding cuts.
• Cutting height up to 224 mm: High vertical cutting capacity and a 345 mm throat depth for ample working space.
• Table tilts up to 45°: Spacious 545x515 mm work surface for stability and precise angled cuts.
• Speeds of 370 & 800 m/min: Dual band speed settings for optimal adjustment to various materials.

Tackle any demanding cutting task with the reliable 1100W single-phase motor. Choose between the two blade speeds of 370 and 800 m/min to adapt operation to the type of wood you are processing. Work steadily and complete your projects with ease, ensuring excellent results and a continuous workflow.

Shape your materials with precision thanks to the maximum cutting height of 224 mm and throat width of 345 mm. Make the most of the large 545 × 515 mm table, which tilts from 0° to 45°, to make bevel cuts with complete confidence. Use the rip fence and miter gauge to achieve clean, accurate cuts.

Work safely using the dedicated wood pusher, and fit blades from 3 to 25 mm wide depending on the application. Connect the dust extraction system to the three-diameter port (47, 73, or 98 mm) to keep your workbench clean. Mount the machine on its sturdy stand and enjoy comfortable, safe control with every cut.

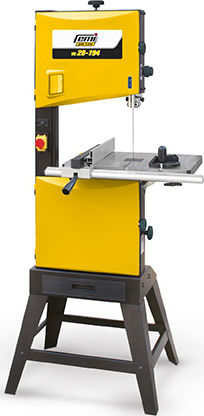

• Model: VB 28-194
• Product code: 8505020
• Type: Vertical wood bandsaw
• Motor power: 1100 W
• Power supply: 230 V - 50 Hz (Single-phase)
• Maximum cutting height: 224 mm
• Maximum cutting width (throat): 345 mm
• Blade dimensions: 2560 x 10 x 0.5 mm
• Compatible blade width: 3 - 25 mm
• Tooth pitch: Z4 (Z/1")
• Blade speed: 370 / 800 m/min
• Worktable dimensions: 545 x 515 mm
• Table tilt angle: 0° - 45°
• Dust extraction port diameter: 47 / 73 / 98 mm
• Packaging dimensions (L x W x H): 1260 x 420 x 560 mm
• Weight: 75 kg

• VB 28-194 band saw
• Cutting band-saw blade
• Rip fence
• Protractor
• Wood pusher
• Maintenance wrenches
• Support stand
• User manual and safety instructions
