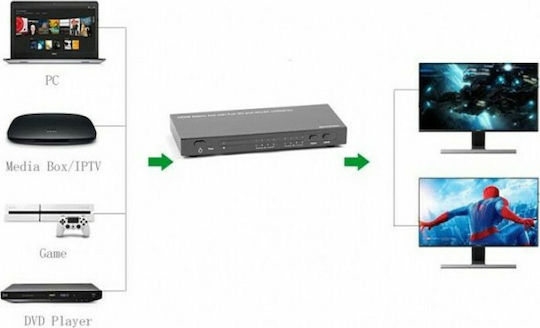

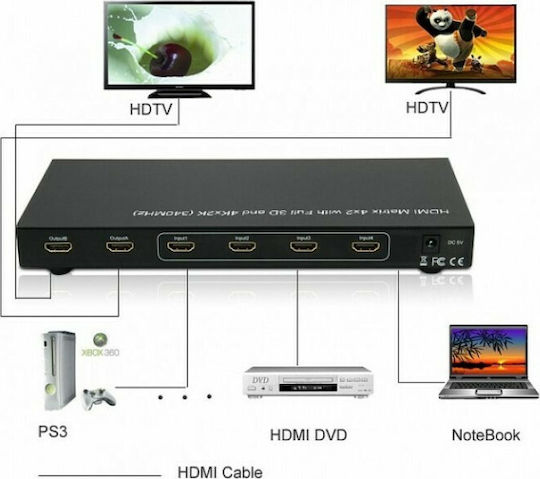

The Techly IDATA HDMI-H42B HDMI Matrix allows you to transmit high-definition video in multiple resolutions up to 4Kx2K and multi-channel digital audio from any of the four HDMI sources connected to two displays. Two outputs offer the option to send high-definition audio and video signals to two connected screens.

• Matrix 4 HDMI inputs 2 outputs.
• Easily switches between any of the four HDMI sources.
• Distributes any of the four inputs to any combination of the two HDMI output displays.
• Supports video resolutions up to 4Kx2K.
• Supports bandwidth of 340MHz / 3.4Gbps per channel (10.2Gbps all channels).
• Supports deep color 12bit per channel (36bit all channels).
• Supports HDCP 1.4 and 3D.

Supports uncompressed audio such as LPCM, compressed audio such as DTS Digital, Dolby Digital, DTS-HD, and Dolby True HD. Supports all 3D formats including [email protected]/24Hz, [email protected]/60Hz/50Hz.

• Input video signal: 5 volts p-p (TTL).
• Maximum single link range: 4Kx2K.
• Video output: HDMI.
• HDMI input/output connections: Type A 19 pin.
• Vertical frequency range: 50/60 Hz.
• Video amplifier bandwidth: 3.4Gbps / 340MHz.

• Interlaced (50 and 60 Hz) 480i, 576i, 1080i.
• Progressive (50 and 60Hz) 480p, 576p, 720p, 1080p, 4Kx2K.

• Certifications: FCC, RoHS, WEEE.
• External power supply: 5V DC @ 2A.
• Power consumption (max): 4W.

Package Contents: 1x HDMI Matrix 4x2, 1x Remote Control, 1x Power Supply, 1x User Manual.
