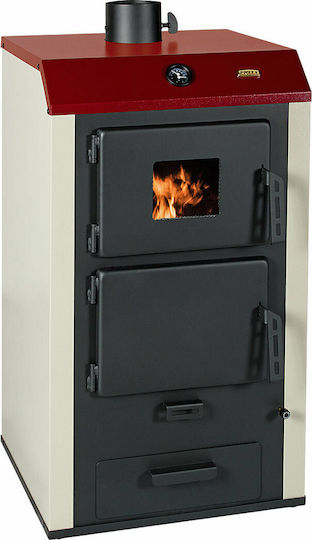

The Prity NS20 is a floor-standing wood boiler designed to connect to a domestic central heating system. It can also heat domestic hot water and is suitable for burning wood and briquetted coal. It features a combustion chamber at the bottom and an ash collection drawer for removing combustion residues and cleaning the boiler.
The body is made of 2 mm-thick steel sheets, while the section around the combustion chamber is made of 3–4 mm-thick sheets. The heat exchanger consists of metal plates that form the heat exchange jacket. The cold water inlet is at the top, and the hot water outlet is at the upper rear, with threaded pipe connections.
- Nominal heat output: 18,228 kcal/h
- Total output: 21.2 kW (18.2 + 3 kW)
- Energy class: A
- Efficiency: 77.7%
- Fuel: Wood and briquetted coal
- Installation: Floor-standing
- Maximum operating pressure: 1.5 bar
- Flue gas temperature: 283 °C
- CO emissions: 0.0825% or 1,031.25 mg/m³
- Ash emissions: 27.72 mg/Nm³
- CxHy emissions: 50.24 mg/Nm³
- NOx emissions: 117.33 mg/Nm³
- Minimum clearance from combustible materials: Front 80 cm, rear 40 cm, side 40 cm, top 60 cm
- Flue diameter: 130 cm
- Combustion chamber dimensions (W × D × H): 43 × 39 × 44 cm
- Appliance dimensions (W × D × H): 57 × 51 × 96 cm
- Weight: 140 kg
Dimensions
- Nominal Power Output Rate
- 18228 kcal/h
- Placement
- Floor
- Individual Unit
- No
- Condensation
- No
- Pyrolysis
- No
- Air Duct Boiler
- No
- with Burner
- No
Provision
- Petroleum
- No
- Gas
- No
- Of Wood
- Yes
- Pellet
- No
- Electric Current
- No
- Biomass
- No
Energy Label
- Energy Class
- -
