OMI company is one of the largest manufacturers of compressed air improvement systems in Europe with many years of experience in the field. The machines in this section are essential because the atmospheric air drawn in by compressors contains water vapor. After compression, 75% of the water vapor condenses and begins to form water droplets that end up in the network if not removed.

This moisture is the cause for:

• Damage and corrosion of machines and tools using compressed air
• Higher maintenance costs, more failures, and lost production hours
• Defective and low-quality products (especially in painting, joinery, panel beating, etc.)

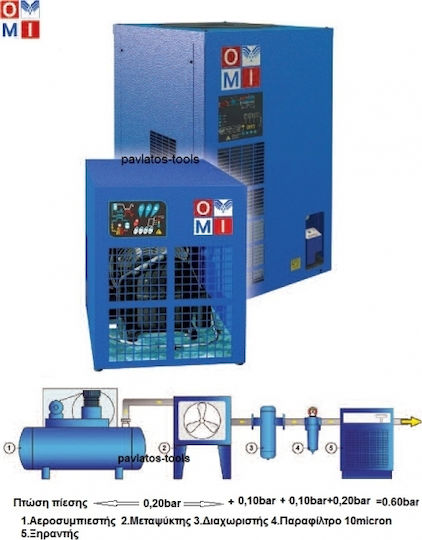

By using aftercoolers, separators, and filters, it is possible to partially reduce the air's moisture content, but only with the addition of dryers, which lower the compressed air temperature to 3°C, is it possible to minimize the moisture.

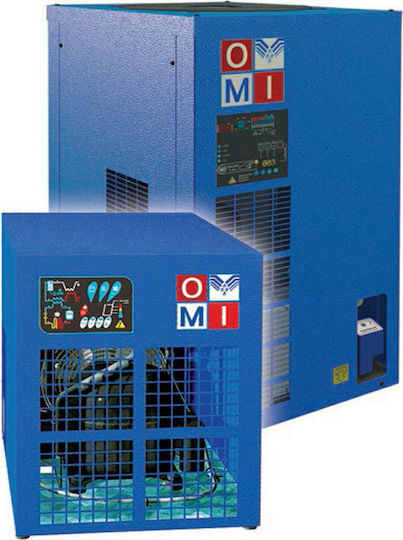

REFRIGERATION DRYERS "ED" SERIES

Dryers with high performance and reliability. All types are equipped with a high-performance aluminum heat exchanger and can cool the compressed air to the point (3°C) where full condensation of the contained water vapor is achieved. The moisture removal is done via the built-in condensate separator. The design of the heat exchangers ensures maximum efficiency with minimum pressure drop. A microprocessor controls the fan's rotation speed according to the air cooling requirements. They have a wide range of parameter adjustments and warning signals for high or low temperature and sensor failure.

Stable reference conditions:

• Inlet air temperature: 35°C (55°C max.)
• Ambient temperature: 25°C (45°C max.)
• Operating pressure: 7 bar (16 bar max.)
• Dew point: CLASS 4 / ISO 8573-1
