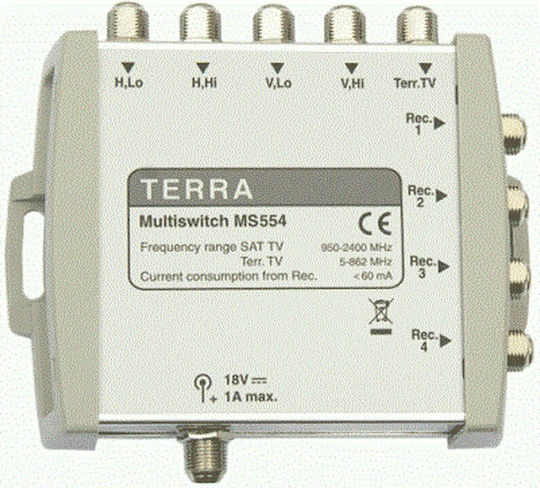

Terra Electronics MS554 Multiswitch Satellite
Satellite Accessories

Terra Electronics MS554 Multiswitch Satellite

TERRA MS554 Expandable Final Multiswitch 5x4 taps

Features

  • Sequential connection system for 4 SAT polarizations and terrestrial TV for installation from floor to floor and star topology networks.
  • DC...

TERRA MS554 Expandable Final Multiswitch 5x4 taps

Features

  • Sequential connection system for 4 SAT polarizations and terrestrial TV for installation from floor to floor and star topology networks.
  • DC powering capability of the LNBs through the MS554, MS554P terminal multiswitches which provide 14V from an external 18V source.
  • Energy saving - no DC...
See full description See full description
57 90 €
58 Coins 58 Coins
Delivery by Mon, 28 Sep
2,50 € to a Skroutz Point
Do you want it Tomorrow with Free shipping?
From Daisat 5.0 (6)
5.0 (6 reviews)
Αγία Παρασκευή, Αττικής
In-store pickup available
See Satellite Reception on the page of Daisat
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

TERRA MS554 Expandable Final Multiswitch 5x4 taps

Features

  • Sequential connection system for 4 SAT polarizations and terrestrial TV for installation from floor to floor and star topology networks.
  • DC powering capability of the LNBs through the MS554, MS554P terminal multiswitches which provide 14V from an external 18V source.
  • Energy saving - no DC consumption on the line.
  • Passive channel for TV signal passage, allowing reception of terrestrial TV channels without needing to have the receiver turned on.
  • Depending on the distance, you can connect up to 5 multiswitches in series with cables without requiring an amplifier.
  • Support for return channel.

Technical Specifications

  • SAT IF frequency range: 950-2400MHz.
  • Terr. TV frequency range: 5-862MHz.
  • Tap SAT IF gain: 2dB.
  • Tap Terr. TV gain: -19dB.
  • Maximum output level SAT IF, IMD3=35dB (EN50083-3): 93dBµV.
  • SAT output level: > 30dB.
  • SAT IF output decoupling: > 30dB.
  • Terr. TV output decoupling: > 30dB.
  • Power consumption from the receiver: < 60mA.
  • Operating temperature: -20 ÷ +50.
  • Dimensions/weight (in packaging): 117*106*34mm/0.25kg.
