- Body made of forged brass
- Chrome or white knob made of durable ABS plastic with metal reinforcement polygon and plastic protective cap
- Brass-plated screw
- Interchangeable/brass double safety mechanism with O-ring (EPDM) and Teflon gland
- Centers (45) for easy assembly
- Protective thread washer 24×19
- Collector connection sealing O-ring for quick and secure assembly
- Total water circulation passage
- Supply classification labels
- 1” inlet
- Maximum pressure: 15 bar
- Maximum temperature: 120°C

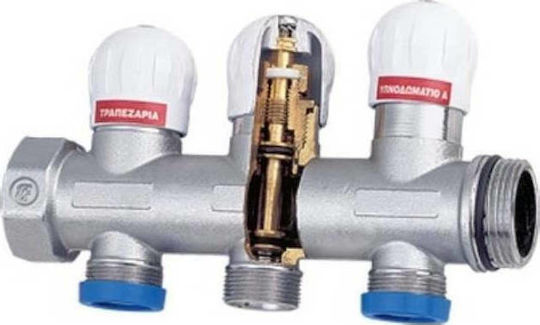

Brass manifold 1'' Proto 3 holes (662) by Brass Form.
Specifications
- Body made of forged brass
- Chrome or white knob made of durable ABS plastic with metal reinforcement polygon and plastic protective cap
- Brass-plated screw
- Interchangeable/brass double safety mechanism with O-ring (EPDM) and Teflon gland
- Centers (45) for easy assembly
- Protective thread washer 24×19
- Collector connection sealing O-ring for quick and secure assembly
- Total water circulation passage
- Supply classification labels
- 1” inlet
- Maximum pressure: 15 bar
- Maximum temperature: 120°C
Specifications
- Size
- 1"
- Material
- Brass
- Supply
- 3
- Switch
- Yes
Dimensions
- Diameter
- 24 mm
