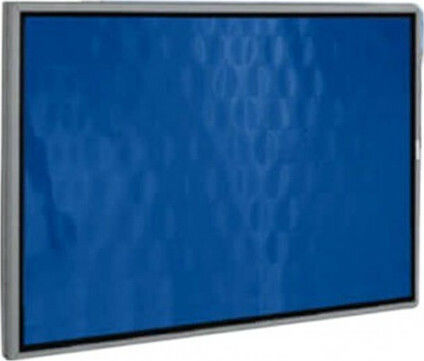

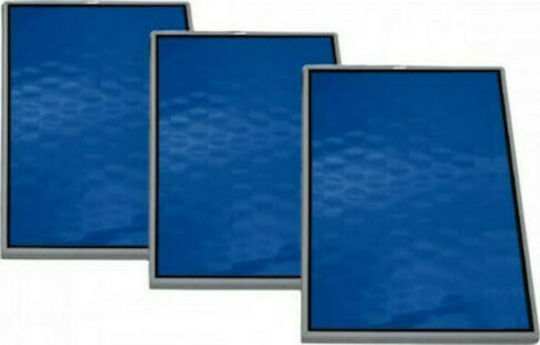

Skyland Selective Solar Collector Horizontal EPI 57 OL 3.06m²
Solar Collectors

Skyland Selective Solar Collector Horizontal EPI 57 OL 3.06m²

  • Collector frame made of special aluminum alloy profile (Al Mg Si 0.5) painted with Seaside Class type electrostatic paint for greater protection.
  • Selective titanium absorber with special vacuum...
  • Collector frame made of special aluminum alloy profile (Al Mg Si 0.5) painted with Seaside Class type electrostatic paint for greater protection.
  • Selective titanium absorber with special vacuum coating, high absorption, and low emission, increasing the collector's absorption capacity, welded with new laser technology for immediate heat transfer to the...
See full description See full description
422 00 €
Preparation for shipment within 6 days
Free  shipping cost
View at store
From Varelas-shop
Λιβαδειά, Βοιωτίας
Shop homepage
Review the product
Product report

Description

Description

  • Collector frame made of special aluminum alloy profile (Al Mg Si 0.5) painted with Seaside Class type electrostatic paint for greater protection.
  • Selective titanium absorber with special vacuum coating, high absorption, and low emission, increasing the collector's absorption capacity, welded with new laser technology for immediate heat transfer to the thermal fluid.
  • Absorption coefficient of selective surface with α ≥ 0.95 ± 0.02.
  • Emission coefficient of selective surface with ε ≤ 0.05 ± 0.02.
  • Collector feed and return pipes (headers) made of copper with a diameter of 22mm.
  • Absorber pipes (manifolds) made of copper.
  • Unbreakable safety glass with a thickness of 4mm with a constant expansion coefficient, resistant to adverse weather conditions (e.g., hail, extreme temperature changes, etc.).
  • Glass transparency coefficient with t ≥ 0.90 low in iron oxides (low iron).
  • Rear plate made of aluminum sheet. Except for EPI 56 OL & EPI 57 KL which are galvanized.
  • Rear insulation of the collector made of 30mm thick rock wool with thermal conductivity λ=0.035 W/m grd (measured at 0°C).
  • Side insulation of the collector made of 20mm thick fiberglass to minimize thermal losses.
  • Sealing of the collector with black silicone.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Selective
Collector Surface m²
3.06 m²
Placement
Horizontal

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

  • Collector frame made of special aluminum alloy profile (Al Mg Si 0.5) painted with Seaside Class type electrostatic paint for greater protection.
  • Selective titanium absorber with special vacuum coating, high absorption, and low emission, increasing the collector's absorption capacity, welded with new laser technology for immediate heat transfer to the thermal fluid.
  • Absorption coefficient of selective surface with α ≥ 0.95 ± 0.02.
  • Emission coefficient of selective surface with ε ≤ 0.05 ± 0.02.
  • Collector feed and return pipes (headers) made of copper with a diameter of 22mm.
  • Absorber pipes (manifolds) made of copper.
  • Unbreakable safety glass with a thickness of 4mm with a constant expansion coefficient, resistant to adverse weather conditions (e.g., hail, extreme temperature changes, etc.).
  • Glass transparency coefficient with t ≥ 0.90 low in iron oxides (low iron).
  • Rear plate made of aluminum sheet. Except for EPI 56 OL & EPI 57 KL which are galvanized.
  • Rear insulation of the collector made of 30mm thick rock wool with thermal conductivity λ=0.035 W/m grd (measured at 0°C).
  • Side insulation of the collector made of 20mm thick fiberglass to minimize thermal losses.
  • Sealing of the collector with black silicone.

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Selective
Collector Surface m²
3.06 m²
Placement
Horizontal

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
