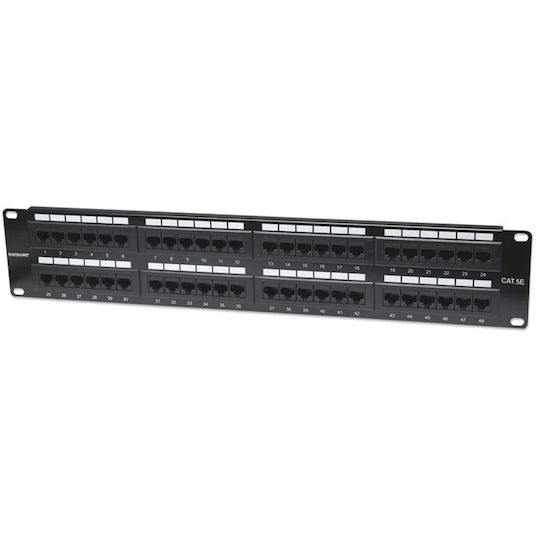

The Manhattan Patchpanel 48 Port connects up to 48 RJ45 ports for Cat5e UTP cables and mounts in a 19" rack, occupying 2U. The contacts are gold-plated, with a thickness of 3 mm and a 50-micron gold coating. Termination is performed using a 110 or Krone punch-down tool.
It supports 22–26 AWG stranded or solid-core cables, as well as the IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards.
- Ports: 48 RJ45
- Cable category: Cat5e
- Cable type: UTP
- Cable compatibility: 22–26 AWG, stranded or solid-core
- Mounting: 19" rack
- Rack capacity: 2U
- Color: Black
- Contacts: Gold-plated, 3 mm thick, with a 50-micron gold coating
- Termination tool: 110 or Krone punch-down tool
- Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Certifications: UL E313857, RoHS
- Dimensions: 482 x 88 x 48 mm
- Horizontal mounting hole spacing: 465 mm
- Vertical mounting hole spacing: 75.8 mm
- Weight: 1.27 kg
- Operating temperature: -40° to 80°C
- Package contents: 48-port RJ45 Cat5e UTP patch panel, 4 mounting screws, quick installation guide
- Product Number
- 513579
- Compatible with Network Cables
- cat5e
- Number of Sockets
- 48
- Rack Capacity
- 2U
- Rack Size
- 19 "
- Colour
- Black
- Cable Category (Cat)
- Cat5e
