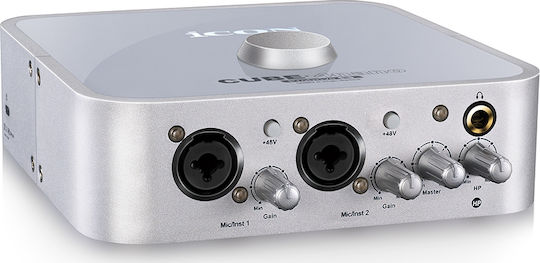

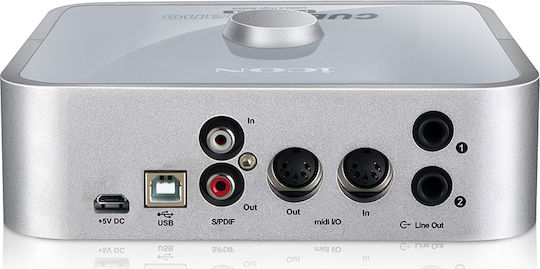

iCON Cube4Nano Pro Drive III
Commercial Sound Cards

iCON Cube4Nano Pro Drive III

  • USB recording interface 24-bit 96/192KHz 4-In/4-Out
  • High dynamic range and S/N ratio:
    DAC: THD+N: -100dB; Dynamic Range, S/N: 114dB
    ADC: THD+N: -98dB; Dynamic Range, S/N: 112dB
  • 22 analog I/O full duplex...
  • USB recording interface 24-bit 96/192KHz 4-In/4-Out
  • High dynamic range and S/N ratio:
    DAC: THD+N: -100dB; Dynamic Range, S/N: 114dB
    ADC: THD+N: -98dB; Dynamic Range, S/N: 112dB
  • 22 analog I/O full duplex recording and playback
  • ICON "ProDrive III" with internal virtual rotation for inputs and outputs
  • Flexible channel routing through software control panel (Windows...
See full description See full description
This product is temporarily unavailable at Skroutz Last updated: 15 days ago
Review the product
Product report

Description

Description

  • USB recording interface 24-bit 96/192KHz 4-In/4-Out
  • High dynamic range and S/N ratio:
    DAC: THD+N: -100dB; Dynamic Range, S/N: 114dB
    ADC: THD+N: -98dB; Dynamic Range, S/N: 112dB
  • 2×2 analog I/O full duplex recording and playback
  • ICON "ProDrive III" with internal virtual rotation for inputs and outputs
  • Flexible channel routing through software control panel (Windows only)
  • Various ProDrive III plugins are provided
  • Dual MIC/Instrument preamps with individual gain control and phantom power switch
  • 2 analog outputs in TRS 1/4" jacks
  • S/PDIF I/O in RCA coaxial jacks
  • 1 x 1 - 16 channel MIDI I/O
  • Main volume control on the front panel
  • 1 headphone output with source assignment and individual volume control
  • Direct monitoring switch for "Stereo, Mono and PC" with individual volume control
  • Equipped with USB2.0 High Speed and powered by USB bus
  • Supports DirectSound, WDM and ASIO2.0
  • Compatible with Mac OS (Intel-Mac), iOS, and Windows 7,8 & 10 (32-bit/64-bit)
  • Full duplex, simultaneous recording/playback
  • The +5V DC power supply jack is equipped for external power when used with iOS
  • Durable aluminum construction


    Manufacturer

    Manufacturer Details

    Warnings & Safety Information
    See full description

    Specifications

    Specifications

    Connectivity

    PC Connectivity
    USB

    Dimensions

    Card Type
    External
    Phantom Power
    Yes

    Phantom Power

    It is a way to power devices such as condenser microphones with a simple cable (usually XLR) and avoid the use of batteries or external power supplies.
    MIDI
    Yes

    MIDI

    It is a protocol designed for recording and playing music on digital synthesizers. Using a software sequencer, you can create music on your computer.
    Loopback
    -
    Auto Gain
    -
    Clip Safe
    -
    DSP
    -
    Word Clock
    -
    Colour
    -

    Audio Ports

    XLR Input
    2
    Headphones
    Yes
    6.3mm Input
    2
    6.3mm Output
    2
    3.5mm
    No
    RCA
    Yes

    Compatibility

    Compatible Software
    Windows, iOS

    Important information

    Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

    See all specifications
    Questions

    Questions

    Do you have a question about the product?

    4 users have this product and can help you

    Ask for the product

    Description & Specifications

    • USB recording interface 24-bit 96/192KHz 4-In/4-Out
    • High dynamic range and S/N ratio:
      DAC: THD+N: -100dB; Dynamic Range, S/N: 114dB
      ADC: THD+N: -98dB; Dynamic Range, S/N: 112dB
    • 2×2 analog I/O full duplex recording and playback
    • ICON "ProDrive III" with internal virtual rotation for inputs and outputs
    • Flexible channel routing through software control panel (Windows only)
    • Various ProDrive III plugins are provided
    • Dual MIC/Instrument preamps with individual gain control and phantom power switch
    • 2 analog outputs in TRS 1/4" jacks
    • S/PDIF I/O in RCA coaxial jacks
    • 1 x 1 - 16 channel MIDI I/O
    • Main volume control on the front panel
    • 1 headphone output with source assignment and individual volume control
    • Direct monitoring switch for "Stereo, Mono and PC" with individual volume control
    • Equipped with USB2.0 High Speed and powered by USB bus
    • Supports DirectSound, WDM and ASIO2.0
    • Compatible with Mac OS (Intel-Mac), iOS, and Windows 7,8 & 10 (32-bit/64-bit)
    • Full duplex, simultaneous recording/playback
    • The +5V DC power supply jack is equipped for external power when used with iOS
    • Durable aluminum construction


      Manufacturer

      Manufacturer Details

      Warnings & Safety Information

      Connectivity

      PC Connectivity
      USB

      Dimensions

      Card Type
      External
      Phantom Power
      Yes

      Phantom Power

      It is a way to power devices such as condenser microphones with a simple cable (usually XLR) and avoid the use of batteries or external power supplies.
      MIDI
      Yes

      MIDI

      It is a protocol designed for recording and playing music on digital synthesizers. Using a software sequencer, you can create music on your computer.
      Loopback
      -
      Auto Gain
      -
      Clip Safe
      -
      DSP
      -
      Word Clock
      -
      Colour
      -

      Audio Ports

      XLR Input
      2
      Headphones
      Yes
      6.3mm Input
      2
      6.3mm Output
      2
      3.5mm
      No
      RCA
      Yes

      Compatibility

      Compatible Software
      Windows, iOS

      Important information

      Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
