- Supports 10th and 11th Gen Intel Core processors, Pentium Gold, and Celeron for LGA 1200 socket
- Supports DDR4 memory, up to 5066(OC) MHz
- Lightning M.2: PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- High-quality thermal solution: Extended heatsink design and M.2 Shield Frozr are built for high-performance systems and uninterrupted tasks
- 2.5G LAN with LAN Manager: Upgraded networking solution for professional and multimedia use. Provides secure, stable, and fast network connection
- Lightning USB 20G: Works with USB 3.2 Gen2x2 controller, offering unprecedented USB speeds up to 20Gb/s with USB Type-C
- Audio Boost: Reward your ears with studio-grade sound quality
- Multi-GPU: Steel armor PCIe slots. Supports 2-Way AMD Crossfire
Spezifikationen
Beschreibung
Produktdetails
- Größe
- Micro ATX
- Tastaturen
- Schreibtisch
Prozessor
- Unterstützte Prozessoren
- Intel
- Modelle
- Celeron Dual Core, Kern i3, Kern i5, Kern i7, Kern i9, Pentium Dual Core
- Unterstützte CPU-Generation
- Kometensee, Raketensee
- Steckdose
- 1200
Chipsatz
- Modell
- Intel B560
Speicher
- Speichertyp
- DDR4
- Menge
- 4 DIMM-Steckplätze
- Speichertaktraten
- 2133, 2400, 2666, 2933, 3000, 3200, 3300OC, 3333OC, 3400OC, 3466OC, 3600OC, 3733OC, 3866OC, 4000OC, 4133OC, 4200OC, 4266OC, 4300OC, 4400OC, 4533OC, 4600OC, 4800OC, 5000OC
- Speicherkanäle
- Zweikanal
Interne Anschlüsse
- PCI Express x16 4.0
- 1 Steckplatz
- SATA III 6Gb/s
- 6 Hafen
- M.2 Typ
- 2 PCIe 4.0-Anschlüsse
- M.2 Steckplätze
- 0
Externe Anschlüsse
- Hintere USB-A-Ausgänge
- 2 USB 2.0-Anschlüsse, 4 USB 3.2-Anschlüsse
- Ethernet (LAN)
- 1
- Bildschirmverbindungen
- DisplayPort, HDMI
Spezifikationen
- RGB-Beleuchtung
- Nein
- WiFi/Bluetooth
- Nein
- Zusätzlich
- RGB-Kopfzeile
Karten
- Soundkartenkanäle
- 7.1
- Zusätzliche Audioanschlüsse
- -
Top-Spezifikationen
- Erinnerung
- -
Wichtige Informationen
Spezifikationen werden von offiziellen Hersteller-Websites gesammelt. Bitte überprüfen Sie die Spezifikationen, bevor Sie Ihren endgültigen Kauf tätigen. Wenn Sie ein Problem bemerken, können Sie melden Sie es hier
Beschreibung

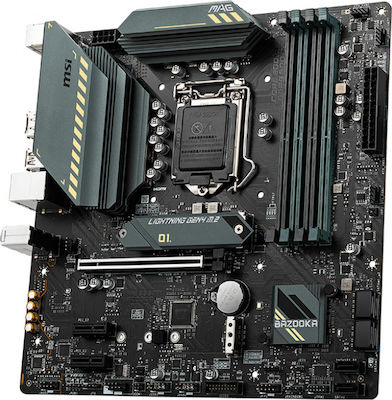

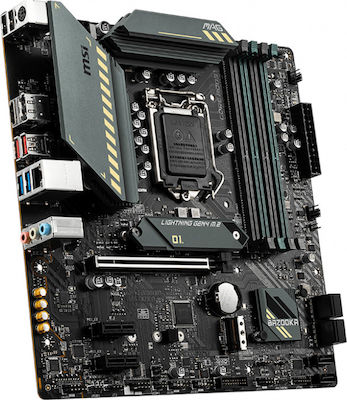

The MSI MAG B560M Bazooka motherboard is designed for users who want to build a powerful computer with maximum performance in a relatively small size. This motherboard is based on the B560 chipset and supports 10th and 11th generation Intel Core processors with LGA 1200 socket.
The MSI MAG B560M Bazooka offers flexible expansion and connectivity options. With a variety of PCIe slots, an M.2 slot for fast SSD storage, and USB and Ethernet ports, it can support various devices and expansions.
In addition, the motherboard features gaming-enhanced capabilities, such as high-speed LAN ports and support for advanced audio systems.
The MSI MAG B560M Bazooka is a good choice for users who want strong performance and flexibility in a small motherboard size.
- Supports 10th and 11th Gen Intel Core processors, Pentium Gold, and Celeron for LGA 1200 socket
- Supports DDR4 memory, up to 5066(OC) MHz
- Lightning M.2: PCIe Gen4 x4 maximizes performance for NVMe based SSDs
- High-quality thermal solution: Extended heatsink design and M.2 Shield Frozr are built for high-performance systems and uninterrupted tasks
- 2.5G LAN with LAN Manager: Upgraded networking solution for professional and multimedia use. Provides secure, stable, and fast network connection
- Lightning USB 20G: Works with USB 3.2 Gen2x2 controller, offering unprecedented USB speeds up to 20Gb/s with USB Type-C
- Audio Boost: Reward your ears with studio-grade sound quality
- Multi-GPU: Steel armor PCIe slots. Supports 2-Way AMD Crossfire
Large heatsink
With more processor cores, thermal design and power design are more important to ensure that the temperature remains lower. MSI's extended PWM heatsink and enhanced circuit design ensure that even high-spec Intel CPUs will operate at full speed with MSI motherboards.
Stickers
In the package, decorative stickers for the heatsink and motherboard battery are included.
2.5G LAN
The 2.5Gbps LAN provides incredible data transfer speed faster than the standard Gigabit LAN. It is a premium solution for demanding users.
Back panel
- 1. Mouse / Keyboard
- 2. DisplayPort
- 3. 2.5G LAN Port
- 4. Audio Connectors
- 5. USB 2.0
- 6. HDMI
- 7. USB 3.2 Gen 2 10Gbps Type-A
- 8. USB 3.2 Gen 1 5Gbps Type-A

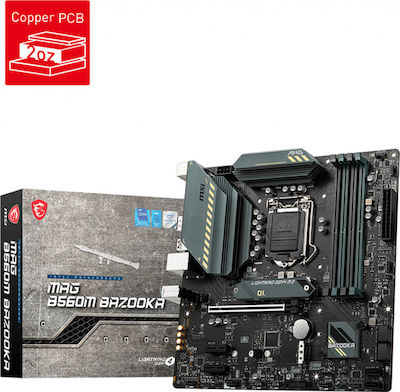

Package Contents
