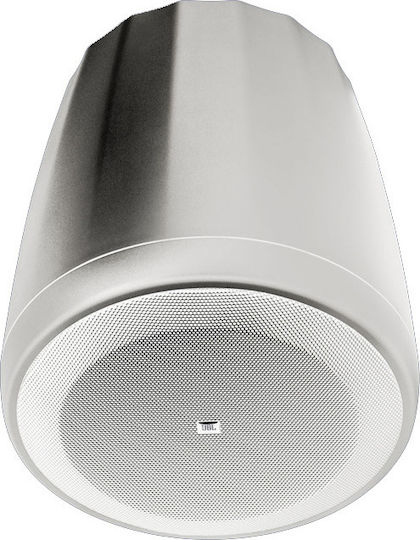

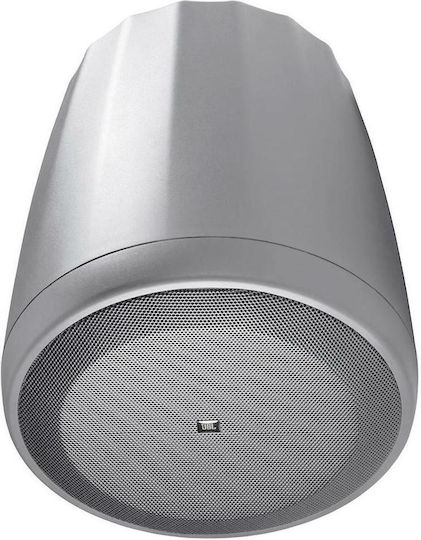

Hanging 2-way coaxial speaker with:
- 5.1/4 in. low frequency driver and 1 in. aluminum voice coil.
- Power capacity of 75 Watt continuous Pink noise (300 Watt peaks) and 150 Watt continuous program power.
- Impedance 8 Ohm.
- Selector switch with transformer for 70V /100V applications (70V: 60W, 30W, 15W, 7.5W 100V: 60W, 30W, 15W).
- Sensitivity 105dB maximum SPL and 111 dB peak.
- Conical dispersion 120 degrees.
- Frequency response 78Hz - 18 kHz (± 3 dB).
- Designed based on RBI technology (Radiation Boundary Integrator).
- Includes 2 hanging cables 4.5m and special Gripple fasteners for height adjustment.
- Color white.
- Dimensions: 234mm diameter, 259mm height, weight 3.7 kg.
- Protection class: IP 44.
Technical Specifications
- Power (RMS)
- 60 W
- Freequency Range
- 78 - 18000 Hz
- Driver Configuration
- 2 No of Drivers
- Nominal Impendance
- 8 ohm
- Sensitivity
- 86 dB
Main Specifications
- Placing
- Ceiling
- Quantity
- Piece
- Colour
- White
- Functionality
- Passive
Dimensions
- Width
- 23.4 cm
