Product Details

Size

SSI CEB

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

SSI CEB

Typical layout for servers/workstations, similar to E-ATX.

Type

Server

Type

Server

Motherboards designed for use in server computers.

Processor

Supported Processors

AMD

Models

Ryzen Threadripper

Supported CPU Generation

Zen 2

Socket

SP3

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model

AMD WRX80

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type

DDR4

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR4

The most common type of memory, with timings starting from 2133Hz.

Quantity

8 DIMM Slots

Memory Speeds

2600, 2933, 3200

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.

Internal Connectors

PCI Express x16 4.0

6 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.

SATA III 6Gb/s

4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.

M.2 Type

2 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.

M.2 Slots

0

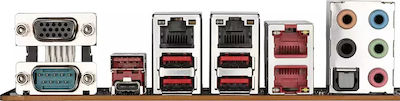

External Connectors

Rear USB-A outputs

5 USB 3.2 Ports

Rear USB-C outputs

1 USB 3.2 Port

Ethernet (LAN)

2

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.

Screen Connections

VGA

Specifications

RGB Lighting

No

WiFi/Bluetooth

No

Sound

Sound Card Channels

7.1

Additional Audio Connections

Optical S/PDIF

Top Specs

Memory

-

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
