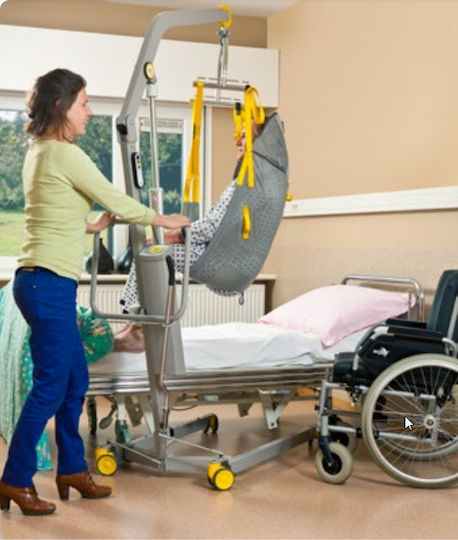

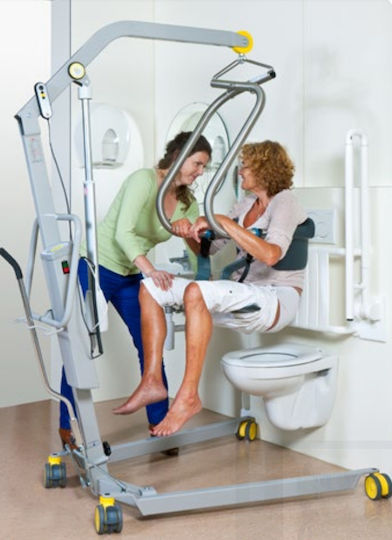

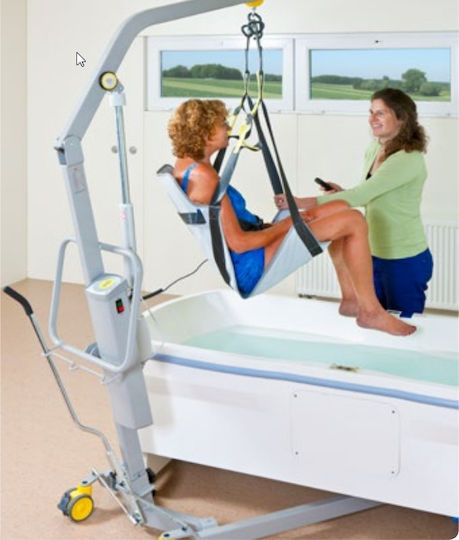

Mobile patient lifting crane 1640, suitable for home and hospital use.

Its wide lifting range (77.5-208.5 cm) allows lifting from high surfaces as well as from the ground. Its legs have a manual spreader function for the crane to access any seat.

It features an ergonomic double handle for easy use by the caregiver.

The use of a wired controller allows the caregiver to maintain visual contact with the user throughout the lifting process.

For maximum user safety, the crane has a mechanical emergency descent mechanism in case of function failure, as well as up-down switches on the frame.

Technical Specifications:

• Maximum lifting capacity: 386 lbs / 175 kg
• Emergency descent: Mechanical
• Weight: 110.23 lbs / 50 kg
• Batteries: maintenance-free and sealed
• Charger: input: 0.9 A 100 - 240 Vac 50 - 60 Hz, output: 24 Vdc maximum 1.3 A
• Turning radius: 53.94 inches / 1370 mm

Proper and safe use of the crane requires annual inspection by specialized personnel to support its safe operation. The inspection follows the guidelines of the international standard EN/ISO 10535:2021.
