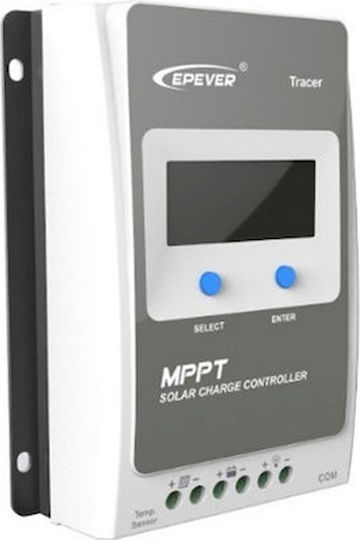

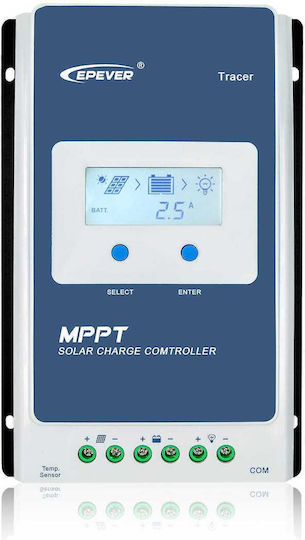

The Epever Tracer AN4210 charge controller uses MPPT technology to detect the maximum power point of photovoltaic panels based on sunlight and temperature. It is suitable for off-grid photovoltaic systems and monocrystalline or polycrystalline silicon panels. The built-in display shows system readings.
It includes electronic protection against short circuits on the photovoltaic and load sides, battery over-discharge and overcharge, load overload, reverse photovoltaic polarity, and incorrect battery polarity connections.
- Type: MPPT
- Battery voltage: 24 V
- Maximum charging current: 40 A
- Maximum photovoltaic input power: 1,040 W at 24 V
- Maximum photovoltaic open-circuit voltage: 100 V
- Display: Built-in
- Protection rating: IP30
- Dimensions: 252 × 180 × 63 mm
- Weight: 1.65 kg
- Type
- MPPT
- Maximum Voltage
- 24 V
- Maximum Short Circuit Current
- 40 A
