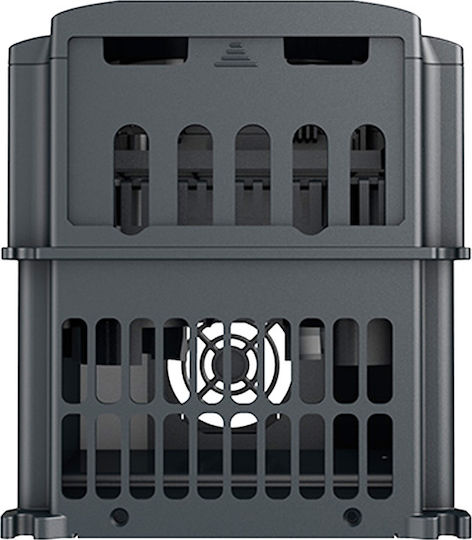

General purpose speed controller GD200A (Three-phase). Applications: Conveyors, cranes, pumping stations, agitators, fans, ventilation systems, burners, and other industrial applications.

• More than 30 fault protection functions
• Advanced OPEN LOOP control
• Built-in potentiometer and screen-keyboard (removable / capability to use an LCD screen)
• Integrated "PID" control
• Built-in C3 / EMC filter
• Built-in brake unit in models
• Fast fault location function
• Uninterrupted operation in case of momentary power loss
• Input voltage: 400V (3Φ)
• Input frequency: 47 ~ 63Hz
• Output frequency: 0 ~ 400Hz
• Power: 110 / 132kW
• Output current: 215 / 260A
• Adjustable speed ratio: 1:100
• Control type: V/F (high precision)
• Inputs:
  • 1 analog 0-10V / 0-20 mA
  • 1 analog -10-10V
  • 8 digital (max frequency 1kHz)
  • 1 high-speed digital (max frequency 50kHz)
• Outputs:
  • 2 analog 0-10V / 0-20 mA
  • 1 Y digital
  • 1 high-speed digital (max frequency 50kHz)
  • 1 programmable relay digital
• Overload: 150% of rated current for 60s
• Easy pump control for water feed (via pressure feedback from pressure switch)
• Built-in RS-485 communication port (Modbus RTU)
• Dimensions (W x D x H): 325 x 365 x 680mm

Certifications: ISO 9001, ISO 14001, CE
