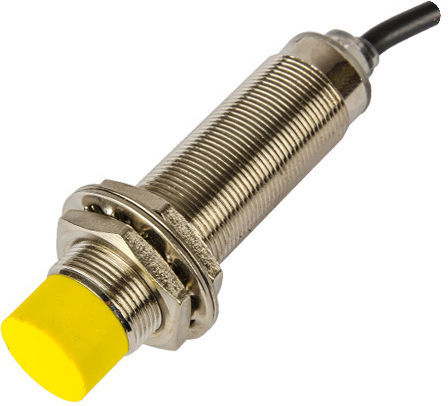

Capacitive sensors are used in machine systems and equipment for monitoring motion without contact.
They consist of two coaxial electrodes, a capacitor, and an RC generator. They respond to metal and non-metallic objects, as the transmission distance for non-metallic objects depends on their dielectric constants. They allow for adjustable detection distance for non-magnetic conductive materials.
They are developed based on PNP and NPN transitions. They have small dimensions and feature a metal cylindrical housing that is resistant to vibrations and a plastic cover that is resistant to oil and water.
- Insulating resistance: ≥ 50 M Ω
- Gearing distance: from 2 mm to 15 mm
- Precision of repetition: 0.01
- Ambient temperature: -25˚С to +65˚С
- Gearing speed: 5mm/s
- Rated voltage: 6~36VDC; 90~230VAC
- IP code: IP 54
- Type
- Motion
