TECHNICAL DATA:

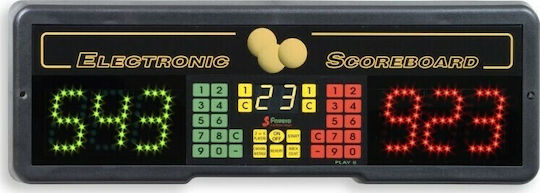

Attractive design that fits perfectly everywhere.

Extremely slim: thickness 4cm - height 19.5cm - length 56cm.

Height numbers 60 millimeters, red and green like the corresponding buttons.

Additionally, it features a yellow central screen with a height of 25 millimeters, very useful during carom to display the number of strokes or in other games to display other data (snooker frames, games, penalties, etc.).

Flat, membrane keypad with large buttons and clear print making the use of the keypad easy and pleasing to the eye. Self-sealing against dust and smoke, it eliminates uncertain contact issues by players over time. Minimum lifespan of each button: five million presses.

In the event of a power failure, no points held in memory will be lost, and all this without the use of batteries.

Durable plastic case, fully insulated without the need for ground connection. Comes with a cable and plug, but can be easily opened at the back for possible direct connection.

Wall mounting is simple, sturdy, and immediate with the use of 2 front screws.

Negligible power consumption: maximum 6VA at 230Vac (115Vac version available).

BUTTON FUNCTIONS:

• ON/OFF button: turns on and off.
• START button: resets the score to zero for starting a game.
• Buttons 0 to 9: for setting points to be added; the addition will occur automatically three seconds after entering them.
• Buttons (C) and (-): for deleting the last entry and for reducing points respectively.
• MEMORY button: displays the points previously recorded (as confirmation).
• MATCH COUNT button: if desired, counts the victories as well as the score.
• 2 or 6 PLAYERS button: allows keeping scores for 2 or 6 players. When set for 6 players, one side shows the player's number and the other the corresponding score.
• CARAMB. AVERAGE button: used in carom to display the average score per stroke -- that is, the ratio between points and the number of strokes (or shots made).
• Yellow buttons (1) and (C): For increasing and clearing the yellow central screen.
