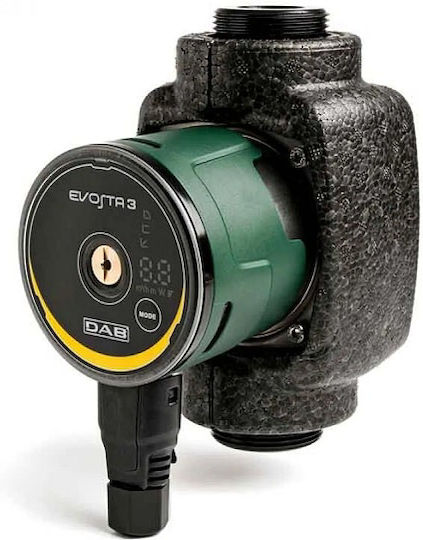

Circulator DAB EVOSTA 3 80/180 R 1''
The new series of EVOSTA 3 circulators combines the power and durability of conventional circulators with the advantages and capabilities of electronic ones. Thanks to the modern permanent magnet motor and inverter operation, the EVOSTA 3 family ranks among the best products in their category in terms of performance and reliability.
TECHNICAL CHARACTERISTICS:
- Operating range: 0.4-4.2 m3/h head up to 8 m
- Liquid temperature range: from -10°C to +110°C
- Max operating pressure: 10 bar (1000 kPa)
- Protection class: IPX5
- Insulation class: F
- Minimum suction pressure: 10 m.w.c
- Motor voltage: single-phase 1 x 230 V ~ 50/60 Hz
- Type of pumped liquid: clean, free of solids and mineral oils, non-viscous, chemically neutral, with properties similar to water (glycol max 30%)
ITALIAN MADE
⇒ Price includes connectors.
Product Details
- Electronic
- No
- Application
- Heating, Air Conditioning
- Maximum Pressure Head (m)
- 8 m
Dimensions
- Length
- 180 mm
