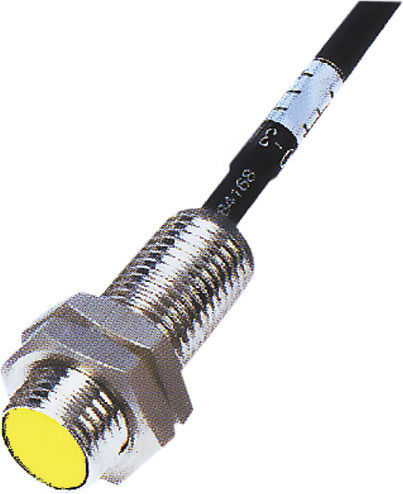

Capacitive sensors are used in machinery systems and equipment for monitoring motion without contact.
They consist of two coaxial electrodes, a capacitor, and an RC generator. They respond to both metal and non-metallic objects, as the transmission distance for non-metallic objects depends on their dielectric constants. They allow for speed adjustment of distance for non-magnetic conductive materials. They are developed based on PNP and NPN transitions.
They have small dimensions and feature a metallic cylindrical shell that is vibration-resistant and a plastic cap that is resistant to oil and water.
- Single circuit compensation: ≥ 50 M Ω
- Activation distance: from 2 mm to 15 mm
- Repeatability accuracy: 0.01
- Ambient temperature: -25˚C to +65˚C
- Activation speed: 5mm/s
- Nominal voltage: 6~36VDC; 90~230VAC
- IP code: IP 54
- Type
- Motion
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
