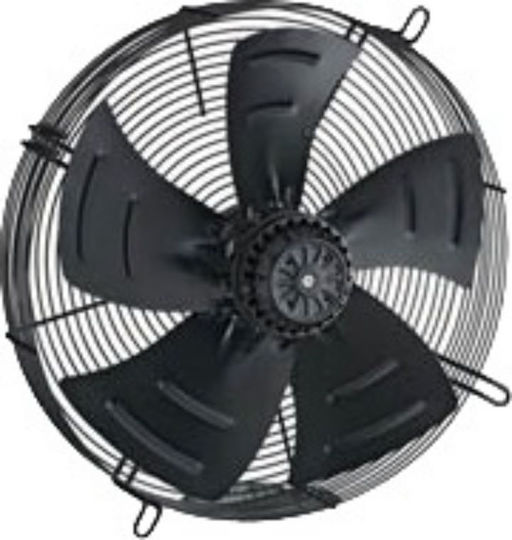

Axial Cooling Fan
- Material: Housing made of galvanized steel sheet, impeller made of steel
- Rotation: Clockwise direction
- Insulation class: B, F
- Poles: Four (4) poles
- Applications: Professional Cooling
- Certificates: CE, TSE, ISO

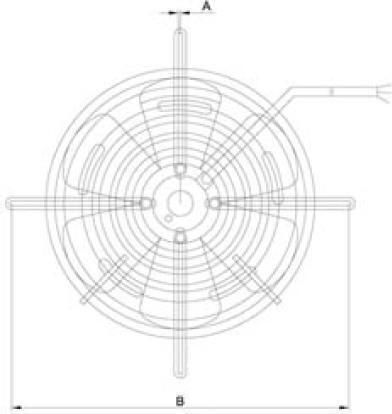

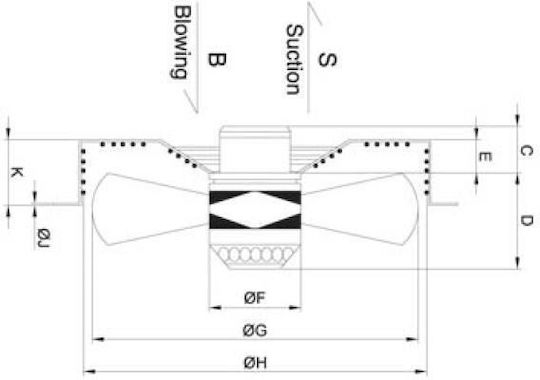

- Dimensions: A: 7 mm, B: 360 mm, C: 55 mm, D: 82 mm, E: 30 mm, F: 92 mm, G: 300 mm, H: 322 mm, J: 4 mm, K: 80 mm
Voltage: 230/50 V/Hz
Power: 72 W
Speed: 1300 r/min

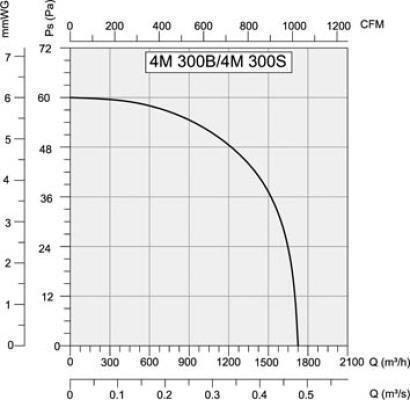

Airflow: 1700 m³/h
Noise level: 50 db
Capacitance: 2.5 μF
Weight: 4.0 Kg
- Product Number
- 01.031.0198
- Type
- Axial
- Output Voltage
- Three-phase
- Air Delivery
- 1700 m³/h
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
