Description
Specifications

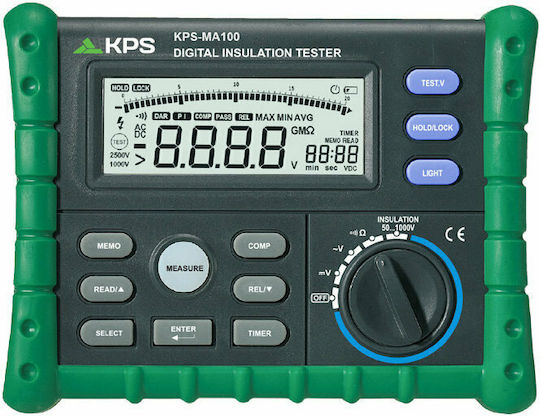

Digital Insulation Meter Mastech kps-ma100
- dc(v): 200/1000v (±0.5%)
- ac(v): 200/750v (±1.5%)
- Resistance: 20/200Ω (±1%)
- Insulation Resistance:
- 50vdc: 0 ~ 50mΩ (±3%)
- 100vdc: 0 ~ 100mΩ (±3%)
- 250vdc: 0 ~ 250mΩ (±3%)
- 500vdc: 0 ~ 500mΩ (±3%)
- 1000vdc: 0 ~ 1000mΩ (±3%)
- 1000vdc: 1 ~ 5gΩ (±5%)
- 1000vdc: 5 ~ 10gΩ (±10%)
Features:
- Data hold
- Min/avg/max recording
- Test lock
- Measurement dap/pi
- Automatic shutdown
- Storage of up to 20 measurement values
- Compare function
- Resistance continuity measurement with buzzer
- Auxiliary lighting
- Measurement with relative value (rel)
- Low battery indication
- Dimensions: 155x200x76mm
Included in the package: Probes, crocodile clips, screwdriver, carrying case, batteries
- Colour
- Green
- with LCD Screen
- No
- True RMS
- No
- with Buzzer
- Yes
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
