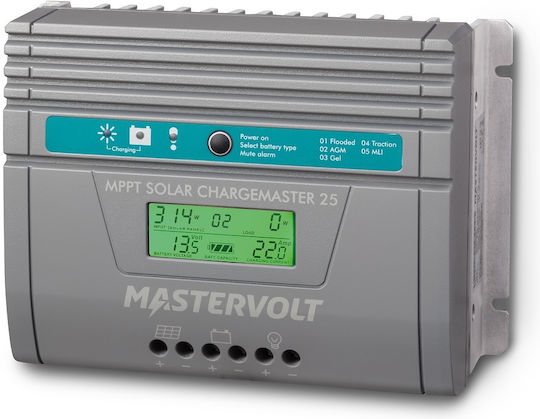

The Mastervolt SCM25 MPPT charge controller manages photovoltaic panels with a total power output of 200 to 700 Wp and supports 36-, 60- and 72-cell panels. MPPT technology increases panel efficiency and can charge batteries up to 30% faster than PWM controllers with the same number of panels. It features automatic 12/24 V voltage detection and is suitable for all battery types, including Mastervolt Lithium Ion batteries.
Preset charging profiles can be selected at the touch of a button, while the battery temperature sensor helps extend battery life. The illuminated display, switched output and audible fault signal make it easy to monitor operation. The durable housing provides IP23 protection against moisture condensation.
- Type: MPPT
- Maximum voltage: 24 V
- Maximum current: 20 A
- Supported photovoltaic panel power: 200–700 Wp
- Compatible panels: 36, 60 and 72 cells
- Battery types: All, including Mastervolt Lithium Ion
- Voltage detection: Automatic 12/24 V
- Charging profiles: Preset, selected via button
- Sensor: Battery temperature
- Output: Switched
- Indicators: Illuminated display and audible fault signal
- Protections: Overload, high and low battery voltage, overheating, short circuit and reverse polarity
- Noise level: Very low
- Housing protection: IP23
- Type
- MPPT
- Maximum Voltage
- 24 V
- Maximum Short Circuit Current
- 20 A
