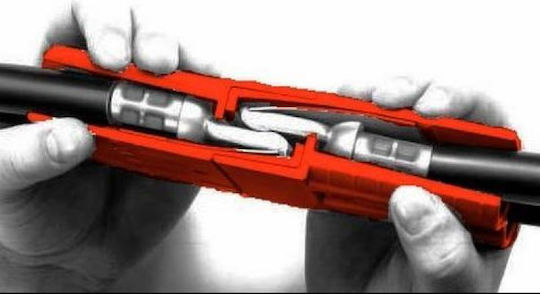

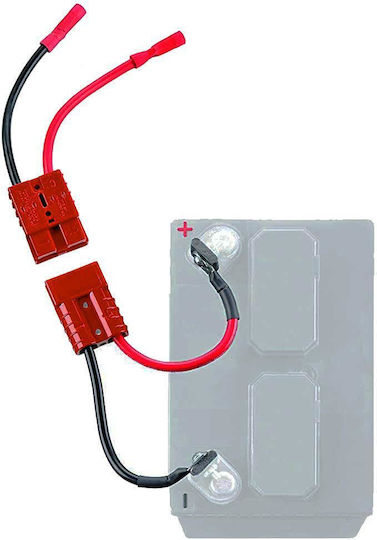

The BC connector quickly connects and disconnects a battery from devices and power systems, such as chargers, power inverters, and photovoltaic installations. The two poles have hermaphroditic connectors, so either end can be connected to the source side or the load side. The design allows connection in only one way, preventing reverse polarity.

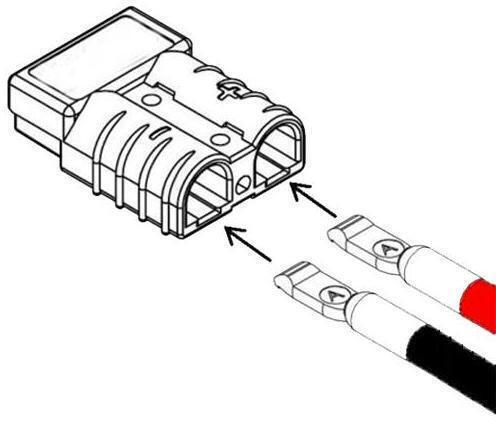

The polycarbonate housing is flame-resistant, while the copper-alloy contacts have a silver-plated finish. The contacts are connected by crimping.
- Type: Anderson-style battery connector
- Poles: 2
- Maximum current: 120 A
- Rated voltage: 600 V AC or DC
- Connection type: Wire-to-wire
- Mounting: Cable-mounted
- Colour: Red
- Housing material: Flame-resistant polycarbonate
- Contact material: Copper alloy
- Contact finish: Silver-plated
- Operating temperature: -20 °C to 105 °C

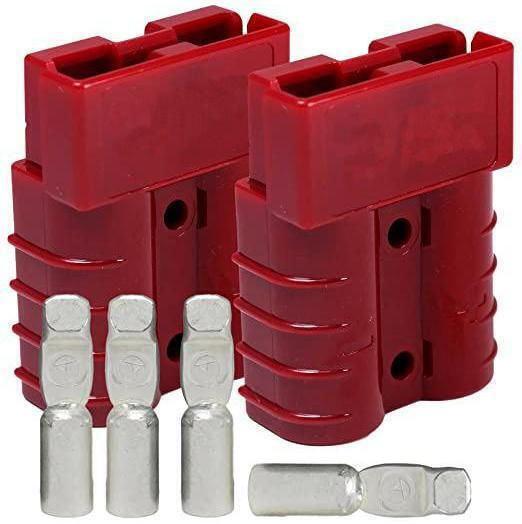

- Package contents: Plastic housing and 2 metal contacts
