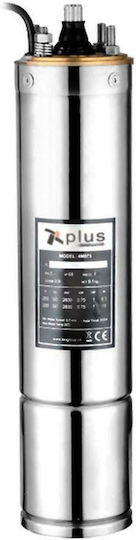

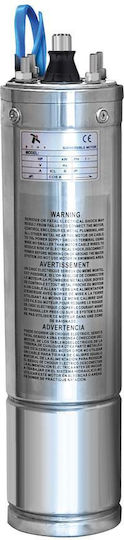

Plus Three-phase Pump Drilling 5.5hp 230220
Submersible Water Pumps

Plus Three-phase Pump Drilling 5.5hp 230220

The motor is water-cooled and oil lubricated.

Includes a cable.

The axial load is received by bearings.

Temperature of pumped liquid up to 35°C.

  • Minimum cooling motor flow rate: 8 cm/sec
  • Maximum...

The motor is water-cooled and oil lubricated.

Includes a cable.

The axial load is received by bearings.

Temperature of pumped liquid up to 35°C.

  • Minimum cooling motor flow rate: 8 cm/sec
  • Maximum submersion depth: 80m
  • Average starts per hour: 20 times
  • Drilling capacity diameter: 4"-100mm
  • Power: 5.5Hp-4Kw
  • Voltage: 380 Volt/50 Hz
  • Cooling: Water-cooled
  • ...
See full description See full description

Top specs

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Voltage

    Three-Phase

    It is mainly used for pumps and other industrial devices that require greater power or higher efficiency. Three-phase power supply is ideal for large installations or applications with increased energy demands.

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
  • See all
224 90 €
Delivery by Tue, 03 Nov
13,00 €

Reduced Shipping

For purchases from Skroutz a discount is applied for this particular product.

Learn more
Do you want it with 8,00 € shipping?
From Drill tools
Θεσσαλονίκη, Θεσσαλονίκης
20+ pieces
See Water Pumps on the page of Drill tools
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

The motor is water-cooled and oil lubricated.

Includes a cable.

The axial load is received by bearings.

Temperature of pumped liquid up to 35°C.

  • Minimum cooling motor flow rate: 8 cm/sec
  • Maximum submersion depth: 80m
  • Average starts per hour: 20 times
  • Drilling capacity diameter: 4"-100mm
  • Power: 5.5Hp-4Kw
  • Voltage: 380 Volt/50 Hz
  • Cooling: Water-cooled
  • Absorption: 9.50A
  • Max RPM: 2820 RPM
  • Body material: Stainless steel AISI 304
  • Net weight: 22.20Kg
  • Product dimensions: Length 9.30cm, Width 9.30cm, Height 72.00cm
  • Axial load: 4500N
  • Packaging dimensions: Length 77.00cm, Width 15.00cm, Height 15.00cm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Drilling

Type

Drilling
Drilling pumps are used for pumping water or other liquids from underground boreholes (water sources) to surfaces for various purposes, such as water supply, irrigation, industrial applications
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Three-Phase

Voltage

Three-Phase

It is mainly used for pumps and other industrial devices that require greater power or higher efficiency. Three-phase power supply is ideal for large installations or applications with increased energy demands.
Horsepower
5.5 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
4125 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Motor Rotation Speed
2820 rpm

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
No

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Vortex
No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Pump Submersion Depth
80 m
Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
No
Stainless
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

The motor is water-cooled and oil lubricated.

Includes a cable.

The axial load is received by bearings.

Temperature of pumped liquid up to 35°C.

  • Minimum cooling motor flow rate: 8 cm/sec
  • Maximum submersion depth: 80m
  • Average starts per hour: 20 times
  • Drilling capacity diameter: 4"-100mm
  • Power: 5.5Hp-4Kw
  • Voltage: 380 Volt/50 Hz
  • Cooling: Water-cooled
  • Absorption: 9.50A
  • Max RPM: 2820 RPM
  • Body material: Stainless steel AISI 304
  • Net weight: 22.20Kg
  • Product dimensions: Length 9.30cm, Width 9.30cm, Height 72.00cm
  • Axial load: 4500N
  • Packaging dimensions: Length 77.00cm, Width 15.00cm, Height 15.00cm

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
Drilling

Type

Drilling
Drilling pumps are used for pumping water or other liquids from underground boreholes (water sources) to surfaces for various purposes, such as water supply, irrigation, industrial applications
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Three-Phase

Voltage

Three-Phase

It is mainly used for pumps and other industrial devices that require greater power or higher efficiency. Three-phase power supply is ideal for large installations or applications with increased energy demands.
Horsepower
5.5 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
4125 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Motor Rotation Speed
2820 rpm

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
No

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Vortex
No

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Pump Submersion Depth
80 m
Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
No
Stainless
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
