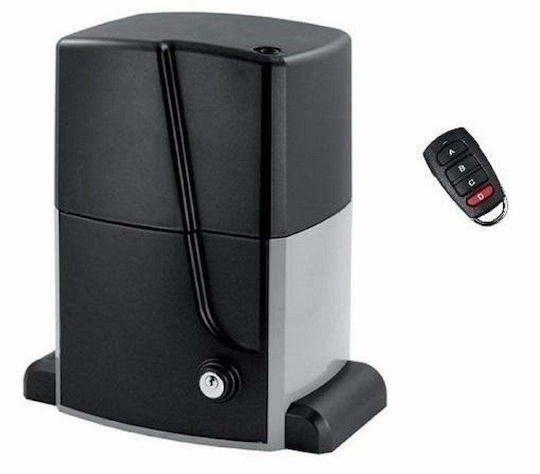

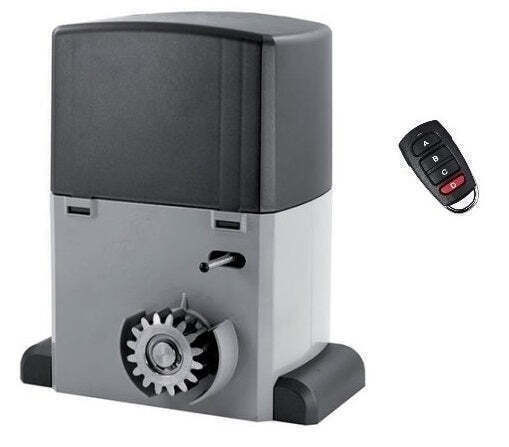

Garage door mechanism in oil bath for sliding garage doors with NORTON-2500-OIL motor suitable for gates weighing up to 2500 kg and for intensive use, with built-in control panel and 1 remote control.

• Power supply: 230 Vac - 50|60 Hz
• Motor rotation speed: 1400
• Current intensity: 2.4 A
• Motor power: 650 W
• Thermal protection: 130°
• Capacitor: 25 μf
• Transmission ratio in the reducer: 1:30
• Gear: module 4 - Z16
• Type of oil: Total Carter EP68
• Type of lubrication: Immersion in oil bath 1 L
• Operating temperature: -20°C +55°C
• Protection class: IP 44
• Limit switches: mechanical
• Door speed: 9.6 m|min
• Height of gear from the floor to the rack: 98 mm
• Maximum allowable door weight: 2500 kg
• Maximum number of continuous openings/closings: up to 50
• Up to 150 openings/closings per day.
• Motor weight: 17 kg
• Dimensions (LxWxH): 290 x 210 x 335
