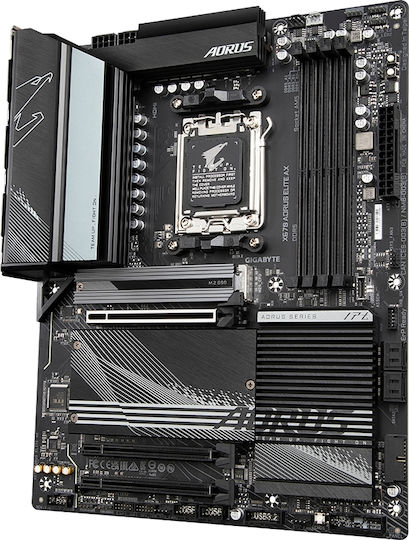

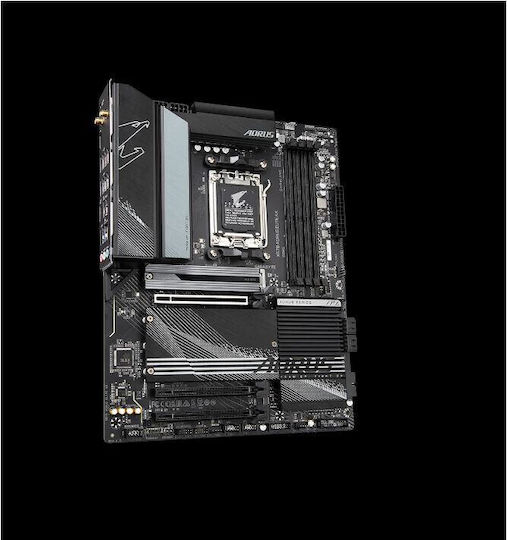

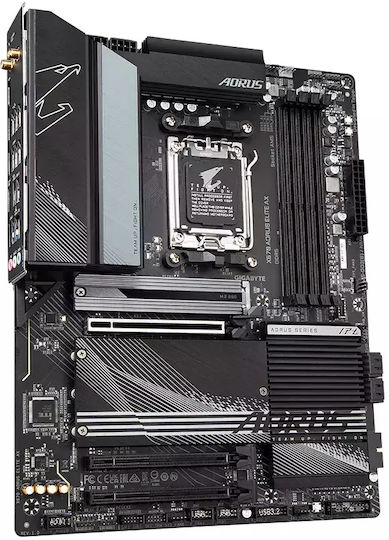

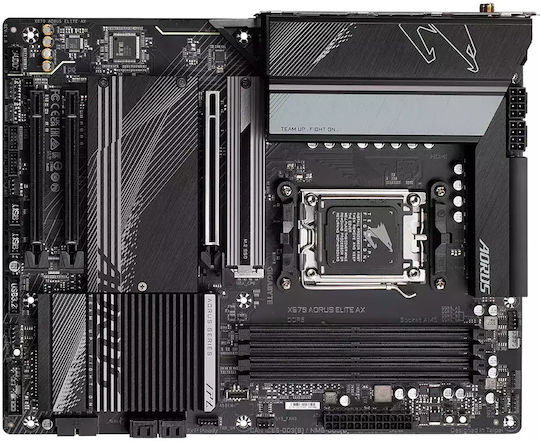

Gigabyte X670 Aorus Elite AX rev. 1.0 Wi-Fi Motherboard ATX with AMD AM5 Socket
Motherboards

Gigabyte X670 Aorus Elite AX rev. 1.0 Wi-Fi Motherboard ATX with AMD AM5 Socket

Key features:

  • 4 DDR5 Ram slots up to 6666(O.C.)
  • For AMD Ryzen 7000 processors
  • Support for 2x PCI Express 4.0 x16
  • HDMI display connections
  • Slots for 4x Sata III and 4x M.2
  • 9 USB 3.2 ports, 4 USB 2.0 ports
See full description

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    ATX

    Classic size with full feature support and many expansion slots.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
The product is not available at Skroutz Last updated: 3 months ago
Product report

Description

Description

The Gigabyte X670 Aorus Elite AX motherboard is aimed at users who want to create a powerful high-performance system for professional use, gaming, and multimedia. This motherboard uses the socket AM5 and supports AMD Ryzen 7000 series processors.

The motherboard has four M.2 slots for SSD installation, supports memory speeds up to DDR5 6666, and features multiple communication ports, such as USB 3.2 Gen 2, USB Type-C, Wi-Fi 6, and Ethernet. The motherboard also includes advanced technologies for increased data transfer speeds and Smart Fan 6 for ultra-quiet operation.

Overall, the Gigabyte X670 Aorus Elite AX motherboard is aimed at users looking for an advanced motherboard with high performance and multiple functions, for professional use and gaming.

  • AMD Socket AM5: Supports AMD Ryzen 7000 Series processors
  • Unmatched performance: Twin 16*+2+2 phase digital VRM solution
  • Dual channel DDR5: 4*SMD DIMMs with support for AMD EXPO & Intel XMP memory modules
  • Next-generation storage: 1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
  • Mega-Heatpipe & M.2 Thermal Guard: Ensures VRM power stability and performance of the 25110 PCIe 5.0 M.2 SSD
  • EZ-Latch: PCIe x16 slot & M.2 connectors with quick release and screwless design
  • Fast networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Expanded connectivity: HDMI, Dual USB-C 20Gbps and upcoming support for Gigabyte USB4 AIC
  • Smart Fan 6: Features multiple temperature sensors, hybrid fan headers with FAN STOP
  • Q-Flash Plus: Update BIOS without installing the CPU, memory, and graphics card

Twin Digital VRM Design

To ensure maximum Turbo Boost performance and overclocking of the new generation AMD CPU, the AORUS series motherboard from GIGABYTE equips the best VRM design ever built with the highest quality components.

PCIe 5.0 Design

Ultra Durable SMD PCIe 5.0 x4 M.2 Slot

The first PCIe 5.0 x4 M.2 slot supports the latest M.2 25110 form factor. Reinforced PCIe 5.0 M.2 slots with metal shielding for greater durability.

Support for EXPO and XMP

Aorus offers a tried and proven platform where the memory overclocking capability can reach up to 6666 and even beyond. All users need to do to achieve this memory performance boost is to ensure that the DDR5 memory modules are capable of AMD EXPO/ Intel XMP and that the EXPO/XMP function is enabled on the motherboard.

Cooling Design

  • Covered MOSFET heatsink
  • M.2 Thermal Guard
  • 8mm Mega-Heatpipe
  • 7 W/mK Thermal Pad
  • 8-Layer & 2X Copper PCB

M.2 Thermal Guard

With durability in mind, Gigabyte provides a thermal solution for M.2 SSD units. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs, as it helps dissipate heat before it becomes an issue.

2X copper PCB

By adopting 2X copper in the inner layer of the PCB, it reduces the component temperature by at least 3% by turning the PCB into an ultra-thin copper heatsink of PCB size for effective heat dissipation from the components, due to its high thermal conductivity and lower composite resistance.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support both PWM/DC fans and pumps, and users can easily set each fan curve based on different temperature sensors across the system through an intuitive user interface.

Cooling Features

  • High Current Support

Each fan header supports PWM and DC fan and water cooling pump, and up to 24W (12V x 2A) with overcurrent protection

  • Precision Control

Multiple temperature/fan speed control points for precise fan curve

  • Dual Curve Mode

Dual slope/stair mode for different user scenarios

  • Fan Stop

The fan can stop completely below the user-defined temperature point

802.11ax Wi-Fi 6E

The latest 802.11ax Wi-Fi 6E wireless solution with a new exclusive 6GHz band allows gigabit wireless performance, provides smooth video streaming, better gaming experience, fewer dropped connections, and speeds up to 2.4Gbps.

Additionally, Bluetooth 5 offers 4 times the range compared to BT 4.2 and faster transmission.

2.5GbE LAN

  • The adoption of LAN 2.5G provides network connectivity up to 2.5GbE, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with an ultimate online gaming experience.
  • Support for Ethernet RJ-45 Multi-Gig (10/100/1000/2500Mbps)

USB 3.2 Gen 2x2 Type-C

It features USB 3.2 Gen 2x2 design, which doubles the performance compared to the previous generation USB 3.2 Gen 2. It operates with ultra-fast data transfer speeds of up to 20 Gbps when connected to USB 3.2 compatible peripherals. Through the USB Type-C port, users can enjoy the flexibility of reversible connection for quick access and storage of large volumes of data.

Hi-Fi Audio

  • High-End Audio Capacitors

AORUS motherboards use high-quality audio capacitors. These high-quality capacitors help deliver high-resolution and high-fidelity audio, providing the most realistic sound effects for gamers.

  • Audio Noise Guard

AORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the board level.

RGB Fusion

Offering more LED customizations than ever before, users can truly personalize their computer to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs surrounding the motherboard.

UEFI BIOS

UEFI BIOS is a type of BIOS that replaces the older BIOS (Basic Input/Output System) in computers. UEFI (Unified Extensible Firmware Interface) is a software-hardware interface standard used for managing computer boot processes and basic system functions.

Gigabyte Control Center

The Gigabyte Control Center (GCC) is a unified software for all products supported by Gigabyte. It provides a newly designed intuitive user interface for controlling all key functions.

  • Unified software platform for all supported Gigabyte products
  • Intuitive user interface for an easy experience
  • Modular control elements only for installed hardware
  • Auto-update function to keep the system up-to-date and support future products

Multi-key

A multi-function reset button that can be reassigned to other functions in the BIOS for different user scenarios.

  • RGB Switch

Turn off all lighting effects on the motherboard.

  • Direct-To-BIOS

Boot into the BIOS menu directly without pressing any keyboard button.

  • Safe Mode

Boot into BIOS safe mode to change a specific option without losing other BIOS settings.

Q-Flash Plus

Update the BIOS easily

With Gigabyte Q-Flash Plus, you don't need to install the processor, memory, and graphics card or enter the BIOS menu. Simply download and save a new BIOS file to a USB drive, then press the exclusive Q-Flash Plus button and you're ready to go.

EZ-Latch Plus PCIe

The newly integrated EZ-Latch Plus design on X670E AORUS motherboards simplifies the computer building process, as it makes removing the graphics card easy with a simple press of a button.

EZ-Latch Plus M.2

The newly integrated EZ-Latch Plus design on X670E AORUS motherboards simplifies the PC building process, making M.2 SSD installation easier than ever, without the need for a single screw.

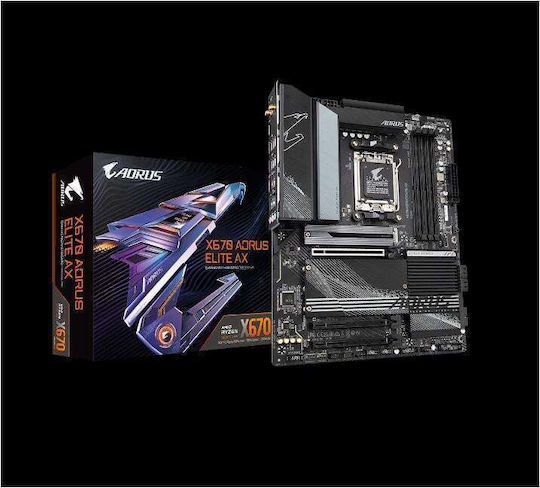

Official Unboxing

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4
Socket
AM5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD X670

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
4400OC, 4800, 5200OC, 5600OC, 6000OC, 6200OC, 6400OC, 6600OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 3.0
1 Slot

PCI Express x16 3.0

The available slots for PCI Express x16 3.0 expansion cards on the motherboard.

Usually, the graphics card is connected to this slot. The most common version is 3.0, while the latest generation graphics cards use 4.0.
PCI Express x16 4.0
2 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 5.0 Port, 3 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

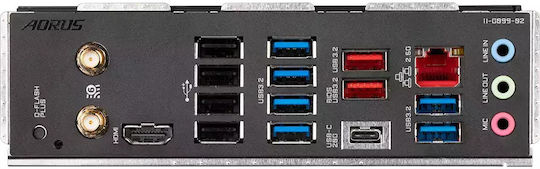

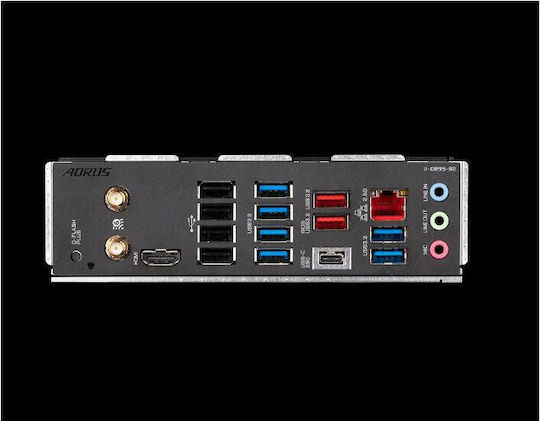

External Connectors

Rear USB-A outputs
4 USB 2.0 Ports, 8 USB 3.2 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI

Specifications

RGB Lighting
No
WiFi/Bluetooth
Yes
Extra
Bios Flashback, RGB Header

Extra

Bios Flashback

Ability to update the BIOS without requiring a CPU and RAM installed on the motherboard. This advanced feature is intended for experienced users and is useful for supporting newer processors on older motherboards. Please refer to the manufacturer's instructions for the process, as it may vary between manufacturers.

For example, if you want to install a Ryzen 5000 series processor on a chipset that only supports it after a BIOS upgrade, BIOS Flashback can be used without having an older processor on the motherboard.

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (24)

Reviews

4.9
24
4.9
Review this product
  1. 21
  2. 3
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Number of ports
  • Easy hardware connection to the motherboard
  • Easy installation in the case
  • Temperature
  • Number of BIOS functions
  • Reliability
  • Value for money

Reviews photos

Reviews photos
Reviews photos
Reviews photos
Reviews photos

Reviews by our members

  • History+
    5
    History+

    Verified purchase

    Very good, no issues with the BIOS which is very user-friendly and overall for its price you get a lot of features unless you are a square PC enthusiast.

    Translated from Greek ·
    Did you find this review helpful?
  • Hlias455gr
    5
    3 out of 4 members found this review helpful
    Hlias455gr

    Verified purchase

    den exw oute ena parapono ola kanoun update katefthian apo to app tis motherboard kai genikotera poli kalo sima wifi kai bluetooth

    Did you find this review helpful?
  • irisdel
    5
    0 out of 3 members found this review helpful
    irisdel

    very durable (i dropped it a few times), a lot of USB ports, and the non-rgb black/silver look is beautiful.

    Did you find this review helpful?
  • Drmzzy
    5
    5 out of 6 members found this review helpful
    Drmzzy

    One of the most all-around X670 motherboards available. Easy BIOS, good investment in components, multiple USB, NVME, and SATA ports.

    Temperatures very good even in summer with heavy gaming use.

    Combined with Ryzen 7 7800X3D, RTX 3080, 32GB RAM 6000 CL32, 2 NVMEs, 2 SATAs & 280mm AIO CPU Cooler.

    Don't be alarmed if you open your PC and it doesn't boot immediately, AMD does a memory train on the RAM and it takes a little time.

    Translated from Greek ·
    Did you find this review helpful?
  • Kostas_Karatsiolis
    5
    12 out of 13 members found this review helpful
    Kostas_Karatsiolis

    Although I didn't want to go for a Gigabyte motherboard, I ended up choosing it in the end.
    I was looking for a motherboard with DDR5 up to 400 euros for this socket.
    The reasons I went for this one are the ones in the photos.
    Better temperatures with better power and VRM compared to other brands for this money!
    The motherboard is great, everything is good! Just don't lose the receipt because Gigabyte is known for being difficult with such issues and their service requires patience.

    Translated from Greek ·
    • Number of ports
    • Number of BIOS functions
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    Did you find this review helpful?
  • Lefteris C.
    4
    6 out of 22 members found this review helpful
    Lefteris C.

    Verified purchase

    I would give it 5 stars, but Gigabyte motherboards come with bloatware (Norton Security and their own software, which I recommend uninstalling). It's a pretty low profile motherboard, it doesn't scream GAMING when you look at it, which I prefer. The BIOS is easy to use and updating it is a quick process. So far, I've only had one issue where my computer wouldn't boot because it was training the DDR5 memory, but that's a problem with the new AMD platform in general. If you buy it, I recommend updating the BIOS only if you have any system issues. You can check Gigabyte's website for BIOS updates and Reddit for beta BIOS. Overall, it's a good purchase despite the bloatware.

    Translated from Greek ·
    • Number of ports
    • Number of BIOS functions
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Reliability
    Did you find this review helpful?
  • DionGR
    5
    16 out of 16 members found this review helpful
    DionGR

    Excellent motherboard. I will analyze each category.

    Materials - Connectivity:
    Very sturdy and heavy (the heaviest I have so far).
    Very good heatsinks, integrated IO shield, and plenty of M2 drive slots. Obviously infinite USB ports (3.2!!!). Fan connections in convenient locations.

    Capabilities:
    Exceptional integrated WiFi 6/Bluetooth 5.2, I did not expect that. The buttons for BIOS Q-Flash and POWER/RESET switches are very convenient for quick testing. Error LEDs in case it does not boot so you know what is wrong.

    BIOS is very good and user-friendly. It offers many capabilities and is relatively well-made. It has everything I need for tweaking/OCing, and can handle good OC as far as I have tested.

    It does not have RGB, which is irrelevant to me.

    I would highly recommend it since it is currently one of the "budget" X670s that offers enthusiast features.

    I will not deduct stars for the price, because no X670 has a reasonable price at the moment.

    Translated from Greek ·
    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Value for money
    Did you find this review helpful?
  • 4
    0 out of 2 members found this review helpful
    tsakisback

    Verified purchase

    Quite good both in construction and appearance but the price is high

    Translated from Greek ·
    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Value for money
    Did you find this review helpful?
  • 5
    GeoBiG

    Verified purchase

  • 5
    sotogun7

    Verified purchase

  • 5
    Apostolis_Louk

    Verified purchase

  • 5
    hellios_apollon

    Verified purchase

  • 5
    Haris_Konstantinidis

    Verified purchase

    • Number of ports
    • Reliability
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Number of BIOS functions
    • Value for money
  • 5
    Xr.SMT

    Verified purchase

  • 5
    Mpalis.

    • Number of ports
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    DeadSpace

    Verified purchase

  • 5
    MusicDodos

  • 5
    Yumash

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    vagsboul

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    Panagiotis_Vergotis

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    lamar46

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    antonis166

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    George_Giannoulelis

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 4
    NikosBF2042

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Value for money
  • History+
    5
    History+

    Very good, no issues with the BIOS which is very user-friendly and overall for its price you get a lot of features unless you are a square PC enthusiast.

    Translated from Greek ·
    0
  • Hlias455gr
    5
    Hlias455gr

    den exw oute ena parapono ola kanoun update katefthian apo to app tis motherboard kai genikotera poli kalo sima wifi kai bluetooth

    3
  • irisdel
    5
    irisdel

    very durable (i dropped it a few times), a lot of USB ports, and the non-rgb black/silver look is beautiful.

    0
  • Drmzzy
    5
    Drmzzy

    One of the most all-around X670 motherboards available. Easy BIOS, good investment in components, multiple USB, NVME, and SATA ports.

    Temperatures very good even in summer with heavy gaming use.

    Combined with Ryzen 7 7800X3D, RTX 3080, 32GB RAM 6000 CL32, 2 NVMEs, 2 SATAs & 280mm AIO CPU Cooler.

    Don't be alarmed if you open your PC and it doesn't boot immediately, AMD does a memory train on the RAM and it takes a little time.

    Translated from Greek ·
    5
  • Kostas_Karatsiolis
    5
    Kostas_Karatsiolis

    Although I didn't want to go for a Gigabyte motherboard, I ended up choosing it in the end.
    I was looking for a motherboard with DDR5 up to 400 euros for this socket.
    The reasons I went for this one are the ones in the photos.
    Better temperatures with better power and VRM compared to other brands for this money!
    The motherboard is great, everything is good! Just don't lose the receipt because Gigabyte is known for being difficult with such issues and their service requires patience.

    Translated from Greek ·
    12
  • See all
Questions (5)

Questions

255 users have this product and can help you

Ask for the product
jonny_77gate
jonny_77gate 2023-11-05
1 Reply Reply to
karanikas84

η αεροψυξη Noctua NH-D15 μπαίνει αραγε; μόλις διάβασα σχόλιο ότι δεν την παίρνει

karanikas84 2023-06-20
peponas

που το διαβασες αυτο φιλε γιατι και εγω σκεφτομαι να την παρω την μητρικη και εχω ηδη την ψυκτρα.δεν μπορω να καταλαβω για ποιον λογο δεν την παιρνει...

peponas 2023-06-22
1 Reply Reply to
mikepavlidis3633

Μιά ερώτηση. Ποιές μνήμες προτιμήσατε οι κάτοχοι? 32gb (2x16) 5600 - C36 είναι όκ ή να κοιτάξω για 6000 ?

mikepavlidis3633 2023-02-14
Geeky_John
Geeky_John 2023-04-29
1 Reply Reply to
PanosDelta

Αφελής ερώτηση: Στις εσωτερικές συνδέσεις απουσιάζει η PCI Express x16 5.0. Θα έχει αυτό κάποια επίπτωση στις επιδόσεις του AMD 7700 που στα χαρακτηριστικά αναφέρει τη σύνδεση
PCI Express® Version PCIe® 5.0 ;

PanosDelta 2024-03-12
0 Replies Reply to
See all questions (5)

Description & Specifications

Product Details

Size
ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

ATX
Classic size with full feature support and many expansion slots.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 4
Socket
AM5

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD X670

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



Memory

Memory type
DDR5

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR5

The latest memory type, with speed starting from 4000 MT/s.
Quantity
4 DIMM Slots
Memory Speeds
4400OC, 4800, 5200OC, 5600OC, 6000OC, 6200OC, 6400OC, 6600OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 3.0
1 Slot

PCI Express x16 3.0

The available slots for PCI Express x16 3.0 expansion cards on the motherboard.

Usually, the graphics card is connected to this slot. The most common version is 3.0, while the latest generation graphics cards use 4.0.
PCI Express x16 4.0
2 Slot

PCI Express x16 4.0

The available PCI Express x16 4.0 expansion card slots of the motherboard.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 5.0 Port, 3 PCIe 4.0 Ports

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
4 USB 2.0 Ports, 8 USB 3.2 Ports
Rear USB-C outputs
1 USB 3.2 Port
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
HDMI

Specifications

RGB Lighting
No
WiFi/Bluetooth
Yes
Extra
Bios Flashback, RGB Header

Extra

Bios Flashback

Ability to update the BIOS without requiring a CPU and RAM installed on the motherboard. This advanced feature is intended for experienced users and is useful for supporting newer processors on older motherboards. Please refer to the manufacturer's instructions for the process, as it may vary between manufacturers.

For example, if you want to install a Ryzen 5000 series processor on a chipset that only supports it after a BIOS upgrade, BIOS Flashback can be used without having an older processor on the motherboard.

RGB Header
Special connector for connecting LED strips or connecting other parts with RGB that require separate power supply.

Sound

Sound Card Channels
7.1

Top Specs

Memory
4x DDR5

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

The Gigabyte X670 Aorus Elite AX motherboard is aimed at users who want to create a powerful high-performance system for professional use, gaming, and multimedia. This motherboard uses the socket AM5 and supports AMD Ryzen 7000 series processors.

The motherboard has four M.2 slots for SSD installation, supports memory speeds up to DDR5 6666, and features multiple communication ports, such as USB 3.2 Gen 2, USB Type-C, Wi-Fi 6, and Ethernet. The motherboard also includes advanced technologies for increased data transfer speeds and Smart Fan 6 for ultra-quiet operation.

Overall, the Gigabyte X670 Aorus Elite AX motherboard is aimed at users looking for an advanced motherboard with high performance and multiple functions, for professional use and gaming.

  • AMD Socket AM5: Supports AMD Ryzen 7000 Series processors
  • Unmatched performance: Twin 16*+2+2 phase digital VRM solution
  • Dual channel DDR5: 4*SMD DIMMs with support for AMD EXPO & Intel XMP memory modules
  • Next-generation storage: 1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
  • Mega-Heatpipe & M.2 Thermal Guard: Ensures VRM power stability and performance of the 25110 PCIe 5.0 M.2 SSD
  • EZ-Latch: PCIe x16 slot & M.2 connectors with quick release and screwless design
  • Fast networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Expanded connectivity: HDMI, Dual USB-C 20Gbps and upcoming support for Gigabyte USB4 AIC
  • Smart Fan 6: Features multiple temperature sensors, hybrid fan headers with FAN STOP
  • Q-Flash Plus: Update BIOS without installing the CPU, memory, and graphics card

Twin Digital VRM Design

To ensure maximum Turbo Boost performance and overclocking of the new generation AMD CPU, the AORUS series motherboard from GIGABYTE equips the best VRM design ever built with the highest quality components.

PCIe 5.0 Design

Ultra Durable SMD PCIe 5.0 x4 M.2 Slot

The first PCIe 5.0 x4 M.2 slot supports the latest M.2 25110 form factor. Reinforced PCIe 5.0 M.2 slots with metal shielding for greater durability.

Support for EXPO and XMP

Aorus offers a tried and proven platform where the memory overclocking capability can reach up to 6666 and even beyond. All users need to do to achieve this memory performance boost is to ensure that the DDR5 memory modules are capable of AMD EXPO/ Intel XMP and that the EXPO/XMP function is enabled on the motherboard.

Cooling Design

  • Covered MOSFET heatsink
  • M.2 Thermal Guard
  • 8mm Mega-Heatpipe
  • 7 W/mK Thermal Pad
  • 8-Layer & 2X Copper PCB

M.2 Thermal Guard

With durability in mind, Gigabyte provides a thermal solution for M.2 SSD units. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs, as it helps dissipate heat before it becomes an issue.

2X copper PCB

By adopting 2X copper in the inner layer of the PCB, it reduces the component temperature by at least 3% by turning the PCB into an ultra-thin copper heatsink of PCB size for effective heat dissipation from the components, due to its high thermal conductivity and lower composite resistance.

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintains its performance while staying cool and quiet. Multiple fan headers can support both PWM/DC fans and pumps, and users can easily set each fan curve based on different temperature sensors across the system through an intuitive user interface.

Cooling Features

  • High Current Support

Each fan header supports PWM and DC fan and water cooling pump, and up to 24W (12V x 2A) with overcurrent protection

  • Precision Control

Multiple temperature/fan speed control points for precise fan curve

  • Dual Curve Mode

Dual slope/stair mode for different user scenarios

  • Fan Stop

The fan can stop completely below the user-defined temperature point

802.11ax Wi-Fi 6E

The latest 802.11ax Wi-Fi 6E wireless solution with a new exclusive 6GHz band allows gigabit wireless performance, provides smooth video streaming, better gaming experience, fewer dropped connections, and speeds up to 2.4Gbps.

Additionally, Bluetooth 5 offers 4 times the range compared to BT 4.2 and faster transmission.

2.5GbE LAN

  • The adoption of LAN 2.5G provides network connectivity up to 2.5GbE, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with an ultimate online gaming experience.
  • Support for Ethernet RJ-45 Multi-Gig (10/100/1000/2500Mbps)

USB 3.2 Gen 2x2 Type-C

It features USB 3.2 Gen 2x2 design, which doubles the performance compared to the previous generation USB 3.2 Gen 2. It operates with ultra-fast data transfer speeds of up to 20 Gbps when connected to USB 3.2 compatible peripherals. Through the USB Type-C port, users can enjoy the flexibility of reversible connection for quick access and storage of large volumes of data.

Hi-Fi Audio

  • High-End Audio Capacitors

AORUS motherboards use high-quality audio capacitors. These high-quality capacitors help deliver high-resolution and high-fidelity audio, providing the most realistic sound effects for gamers.

  • Audio Noise Guard

AORUS motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the board level.

RGB Fusion

Offering more LED customizations than ever before, users can truly personalize their computer to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs surrounding the motherboard.

UEFI BIOS

UEFI BIOS is a type of BIOS that replaces the older BIOS (Basic Input/Output System) in computers. UEFI (Unified Extensible Firmware Interface) is a software-hardware interface standard used for managing computer boot processes and basic system functions.

Gigabyte Control Center

The Gigabyte Control Center (GCC) is a unified software for all products supported by Gigabyte. It provides a newly designed intuitive user interface for controlling all key functions.

  • Unified software platform for all supported Gigabyte products
  • Intuitive user interface for an easy experience
  • Modular control elements only for installed hardware
  • Auto-update function to keep the system up-to-date and support future products

Multi-key

A multi-function reset button that can be reassigned to other functions in the BIOS for different user scenarios.

  • RGB Switch

Turn off all lighting effects on the motherboard.

  • Direct-To-BIOS

Boot into the BIOS menu directly without pressing any keyboard button.

  • Safe Mode

Boot into BIOS safe mode to change a specific option without losing other BIOS settings.

Q-Flash Plus

Update the BIOS easily

With Gigabyte Q-Flash Plus, you don't need to install the processor, memory, and graphics card or enter the BIOS menu. Simply download and save a new BIOS file to a USB drive, then press the exclusive Q-Flash Plus button and you're ready to go.

EZ-Latch Plus PCIe

The newly integrated EZ-Latch Plus design on X670E AORUS motherboards simplifies the computer building process, as it makes removing the graphics card easy with a simple press of a button.

EZ-Latch Plus M.2

The newly integrated EZ-Latch Plus design on X670E AORUS motherboards simplifies the PC building process, making M.2 SSD installation easier than ever, without the need for a single screw.

Official Unboxing

Manufacturer

Manufacturer Details

Warnings & Safety Information

Reviews (24)

4.9
24
4.9
Review this product
  1. 21
  2. 3
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
  • Number of ports
  • Easy hardware connection to the motherboard
  • Easy installation in the case
  • Temperature
  • Number of BIOS functions
  • Reliability
  • Value for money

Reviews photos

Reviews photos
Reviews photos
Reviews photos
Reviews photos

Reviews by our members

  • History+
    5
    History+

    Verified purchase

    Very good, no issues with the BIOS which is very user-friendly and overall for its price you get a lot of features unless you are a square PC enthusiast.

    Translated from Greek ·
    Did you find this review helpful?
  • Hlias455gr
    5
    3 out of 4 members found this review helpful
    Hlias455gr

    Verified purchase

    den exw oute ena parapono ola kanoun update katefthian apo to app tis motherboard kai genikotera poli kalo sima wifi kai bluetooth

    Did you find this review helpful?
  • irisdel
    5
    0 out of 3 members found this review helpful
    irisdel

    very durable (i dropped it a few times), a lot of USB ports, and the non-rgb black/silver look is beautiful.

    Did you find this review helpful?
  • Drmzzy
    5
    5 out of 6 members found this review helpful
    Drmzzy

    One of the most all-around X670 motherboards available. Easy BIOS, good investment in components, multiple USB, NVME, and SATA ports.

    Temperatures very good even in summer with heavy gaming use.

    Combined with Ryzen 7 7800X3D, RTX 3080, 32GB RAM 6000 CL32, 2 NVMEs, 2 SATAs & 280mm AIO CPU Cooler.

    Don't be alarmed if you open your PC and it doesn't boot immediately, AMD does a memory train on the RAM and it takes a little time.

    Translated from Greek ·
    Did you find this review helpful?
  • Kostas_Karatsiolis
    5
    12 out of 13 members found this review helpful
    Kostas_Karatsiolis

    Although I didn't want to go for a Gigabyte motherboard, I ended up choosing it in the end.
    I was looking for a motherboard with DDR5 up to 400 euros for this socket.
    The reasons I went for this one are the ones in the photos.
    Better temperatures with better power and VRM compared to other brands for this money!
    The motherboard is great, everything is good! Just don't lose the receipt because Gigabyte is known for being difficult with such issues and their service requires patience.

    Translated from Greek ·
    • Number of ports
    • Number of BIOS functions
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    Did you find this review helpful?
  • Lefteris C.
    4
    6 out of 22 members found this review helpful
    Lefteris C.

    Verified purchase

    I would give it 5 stars, but Gigabyte motherboards come with bloatware (Norton Security and their own software, which I recommend uninstalling). It's a pretty low profile motherboard, it doesn't scream GAMING when you look at it, which I prefer. The BIOS is easy to use and updating it is a quick process. So far, I've only had one issue where my computer wouldn't boot because it was training the DDR5 memory, but that's a problem with the new AMD platform in general. If you buy it, I recommend updating the BIOS only if you have any system issues. You can check Gigabyte's website for BIOS updates and Reddit for beta BIOS. Overall, it's a good purchase despite the bloatware.

    Translated from Greek ·
    • Number of ports
    • Number of BIOS functions
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Reliability
    Did you find this review helpful?
  • DionGR
    5
    16 out of 16 members found this review helpful
    DionGR

    Excellent motherboard. I will analyze each category.

    Materials - Connectivity:
    Very sturdy and heavy (the heaviest I have so far).
    Very good heatsinks, integrated IO shield, and plenty of M2 drive slots. Obviously infinite USB ports (3.2!!!). Fan connections in convenient locations.

    Capabilities:
    Exceptional integrated WiFi 6/Bluetooth 5.2, I did not expect that. The buttons for BIOS Q-Flash and POWER/RESET switches are very convenient for quick testing. Error LEDs in case it does not boot so you know what is wrong.

    BIOS is very good and user-friendly. It offers many capabilities and is relatively well-made. It has everything I need for tweaking/OCing, and can handle good OC as far as I have tested.

    It does not have RGB, which is irrelevant to me.

    I would highly recommend it since it is currently one of the "budget" X670s that offers enthusiast features.

    I will not deduct stars for the price, because no X670 has a reasonable price at the moment.

    Translated from Greek ·
    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Value for money
    Did you find this review helpful?
  • 4
    0 out of 2 members found this review helpful
    tsakisback

    Verified purchase

    Quite good both in construction and appearance but the price is high

    Translated from Greek ·
    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Value for money
    Did you find this review helpful?
  • 5
    GeoBiG

    Verified purchase

  • 5
    sotogun7

    Verified purchase

  • 5
    Apostolis_Louk

    Verified purchase

  • 5
    hellios_apollon

    Verified purchase

  • 5
    Haris_Konstantinidis

    Verified purchase

    • Number of ports
    • Reliability
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Number of BIOS functions
    • Value for money
  • 5
    Xr.SMT

    Verified purchase

  • 5
    Mpalis.

    • Number of ports
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    DeadSpace

    Verified purchase

  • 5
    MusicDodos

  • 5
    Yumash

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    vagsboul

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    Panagiotis_Vergotis

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    lamar46

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    antonis166

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 5
    George_Giannoulelis

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Value for money
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
  • 4
    NikosBF2042

    Verified purchase

    • Number of ports
    • Number of BIOS functions
    • Reliability
    • Easy hardware connection to the motherboard
    • Easy installation in the case
    • Temperature
    • Value for money
  • History+
    5
    History+

    Very good, no issues with the BIOS which is very user-friendly and overall for its price you get a lot of features unless you are a square PC enthusiast.

    Translated from Greek ·
    0
  • Hlias455gr
    5
    Hlias455gr

    den exw oute ena parapono ola kanoun update katefthian apo to app tis motherboard kai genikotera poli kalo sima wifi kai bluetooth

    3
  • irisdel
    5
    irisdel

    very durable (i dropped it a few times), a lot of USB ports, and the non-rgb black/silver look is beautiful.

    0
  • Drmzzy
    5
    Drmzzy

    One of the most all-around X670 motherboards available. Easy BIOS, good investment in components, multiple USB, NVME, and SATA ports.

    Temperatures very good even in summer with heavy gaming use.

    Combined with Ryzen 7 7800X3D, RTX 3080, 32GB RAM 6000 CL32, 2 NVMEs, 2 SATAs & 280mm AIO CPU Cooler.

    Don't be alarmed if you open your PC and it doesn't boot immediately, AMD does a memory train on the RAM and it takes a little time.

    Translated from Greek ·
    5
  • Kostas_Karatsiolis
    5
    Kostas_Karatsiolis

    Although I didn't want to go for a Gigabyte motherboard, I ended up choosing it in the end.
    I was looking for a motherboard with DDR5 up to 400 euros for this socket.
    The reasons I went for this one are the ones in the photos.
    Better temperatures with better power and VRM compared to other brands for this money!
    The motherboard is great, everything is good! Just don't lose the receipt because Gigabyte is known for being difficult with such issues and their service requires patience.

    Translated from Greek ·
    12
  • See all
