Multilayer Pipe Valsir Pexal Φ20 x 2 with Insulation and Aluminum Thickness 0.40mm.

Characteristics

• Pexal the most reliable and safe solution for WATER and HEATING installations.
• Combines the characteristic advantages of metal pipes with those of plastic pipes.
• Oxygen impermeable barrier thanks to the intermediate aluminum layer.
• One pipe for numerous applications in water and heating systems.
• Certification for drinking water.
• High degree of hygiene.
• Maximum operating temperature 90°C and pressure 10bar.
• Cross-linked pipe both internally and externally.
• Speed and exceptional ease of installation. When the pipe is bent, it retains its curvature.
• The pipe can be bent multiple times.

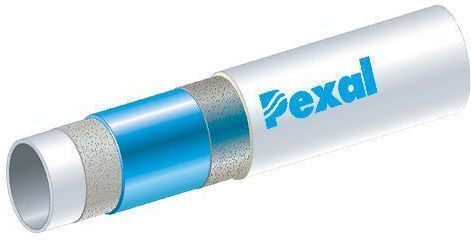

The Pexal multilayer pipe consists of:

• Outer layer of cross-linked polyethylene PE-Xb.(1)
• Two intermediate layers of special adhesive which bond the middle aluminum sheet with the inner and outer cross-linked polyethylene pipe.(3)
• Middle layer of aluminum alloy stitched lengthwise head to head.(2)
• Inner layer of cross-linked polyethylene PE-Xb.(4)

Origin: Italy

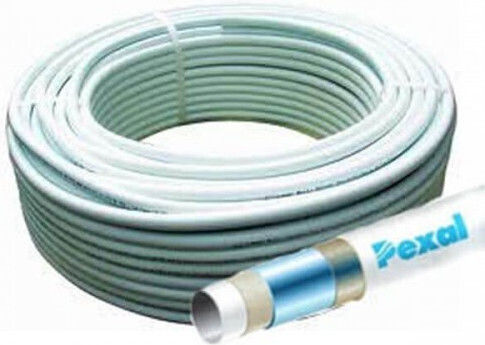

The Multilayer Pipe Valsir Pexal Φ20 x 2 with Aluminum Thickness 0.40mm is available in 50m coils with self-extinguishing insulation thickness of 6 mm.
