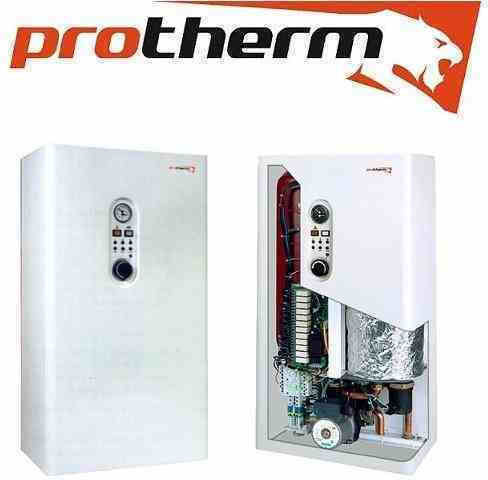

Protherm Ray 9K Wall-mounted Boiler Electric Current 7738kcal/h
Boilers

Protherm Ray 9K Wall-mounted Boiler Electric Current 7738kcal/h

The Protherm Ray 9K boiler is wall-mounted and powered by electricity. It features an intelligent control system, fault alerts, and external compensation. It can be connected to a single-phase power...

The Protherm Ray 9K boiler is wall-mounted and powered by electricity. It features an intelligent control system, fault alerts, and external compensation. It can be connected to a single-phase power supply.

  • Rated heat output: 7738 kcal/h
  • Power: 9 kW
  • Efficiency: 99.5%
  • Installation: Wall-mounted
  • Power supply: Electricity
  • Expansion vessel: 7 l
  • Voltage: 220 V
  • ...
See full description See full description
1129 00 €
Preparation for shipment within 2 days
Free  shipping cost
View at store
From ClimaReport
Ηράκλειο, Αττικής
Shop homepage
Review the product
Product report

Description

Description

The Protherm Ray 9K boiler is wall-mounted and powered by electricity. It features an intelligent control system, fault alerts, and external compensation. It can be connected to a single-phase power supply.

  • Rated heat output: 7738 kcal/h
  • Power: 9 kW
  • Efficiency: 99.5%
  • Installation: Wall-mounted
  • Power supply: Electricity
  • Expansion vessel: 7 l
  • Voltage: 220 V
  • Frequency: 50 Hz
  • Protection rating: IP 40
  • Dimensions: 410 × 740 × 310 mm
  • Weight: 34 kg
  • Heating elements: 3 kW + 6 kW
  • Maximum current: 39 A
  • Recommended fuse: 50 A
  • Recommended cable size: 10 mm²

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Nominal Power Output Rate
7738 kcal/h
Placement
Wall Mounted
Individual Unit
No

Individual Unit

Compact boiler room system.
Condensation
No

Condensation

They also utilize the temperature of their exhaust gases, thus greatly increasing their efficiency and achieving greater fuel economy.
Pyrolysis
No

Pyrolysis

They maximize the use of solid fuels, increasing their efficiency while reducing waste.
Air Duct Boiler
No
with Burner
No

Provision

Petroleum
No
Gas
No
Of Wood
No
Pellet
No
Electric Current
Yes
Biomass
No

Energy Label

Energy Class
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

The Protherm Ray 9K boiler is wall-mounted and powered by electricity. It features an intelligent control system, fault alerts, and external compensation. It can be connected to a single-phase power supply.

  • Rated heat output: 7738 kcal/h
  • Power: 9 kW
  • Efficiency: 99.5%
  • Installation: Wall-mounted
  • Power supply: Electricity
  • Expansion vessel: 7 l
  • Voltage: 220 V
  • Frequency: 50 Hz
  • Protection rating: IP 40
  • Dimensions: 410 × 740 × 310 mm
  • Weight: 34 kg
  • Heating elements: 3 kW + 6 kW
  • Maximum current: 39 A
  • Recommended fuse: 50 A
  • Recommended cable size: 10 mm²

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Nominal Power Output Rate
7738 kcal/h
Placement
Wall Mounted
Individual Unit
No

Individual Unit

Compact boiler room system.
Condensation
No

Condensation

They also utilize the temperature of their exhaust gases, thus greatly increasing their efficiency and achieving greater fuel economy.
Pyrolysis
No

Pyrolysis

They maximize the use of solid fuels, increasing their efficiency while reducing waste.
Air Duct Boiler
No
with Burner
No

Provision

Petroleum
No
Gas
No
Of Wood
No
Pellet
No
Electric Current
Yes
Biomass
No

Energy Label

Energy Class
-

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
