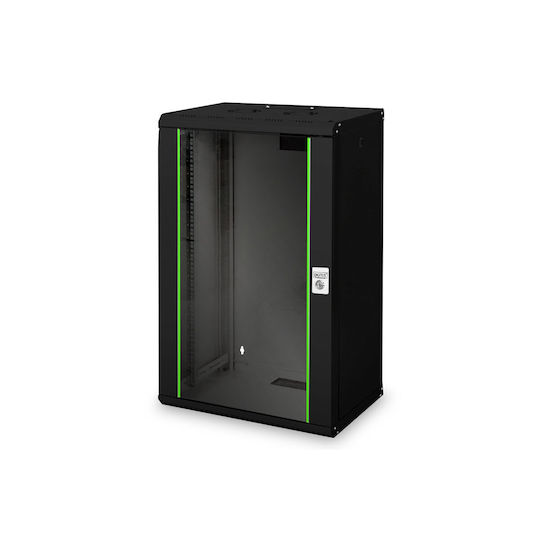

The Digitus DN-19 20-U-SW wall-mounted rack cabinet features a steel construction made from 1.5 mm sheet steel and adjustable 483 mm (19") mounting rails. The lockable safety glass door has a steel frame and opens to 210°. Delivered assembled.
The removable side panels provide easy access to the interior, while the cable entries at the rear and bottom have plastic covers. The top features ventilation slots and a sliding cover.
- Mounting: Wall-mounted
- Rack units: 20U
- Dimensions: 60 x 45 x 99.8 cm (W x D x H)
- Weight: 36 kg
- Maximum load: 100 kg
- Material: 1.5 mm sheet steel
- Mounting rails: Two pairs, front and rear, adjustable, 483 mm (19")
- Door: Glass, lockable, with steel frame and 210° opening angle
- Lock: Single-point
- Side panels: Removable
- Cable entries: Rear and bottom, with plastic covers
- Top: Ventilation slots and sliding cover
- Protection rating: IP20
- Colour: Black (RAL 9005)
- Package contents: Installation kit with screws, cage nuts and washers
Main Specifications
- Placing
- Wall Mounted
- Rack Unit
- 20U
- Colour
- Black
- Weight
- 36 kg
Dimensions
- Length (cm)
- 60 cm
- Depth (cm)
- 45 cm
- Height (cm)
- 99.8 cm
