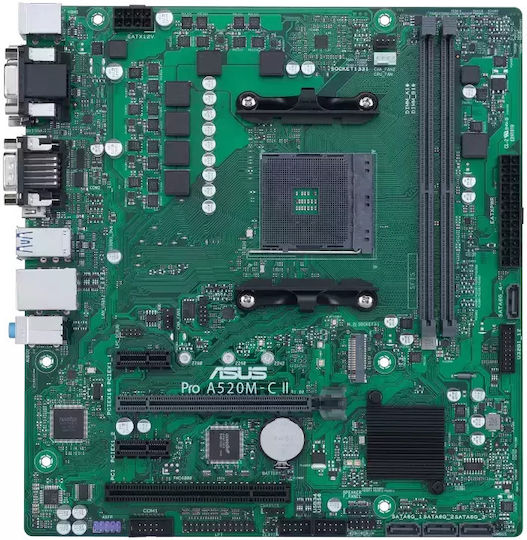

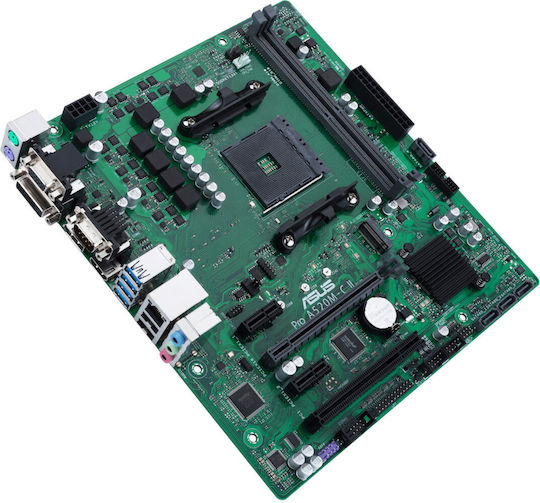

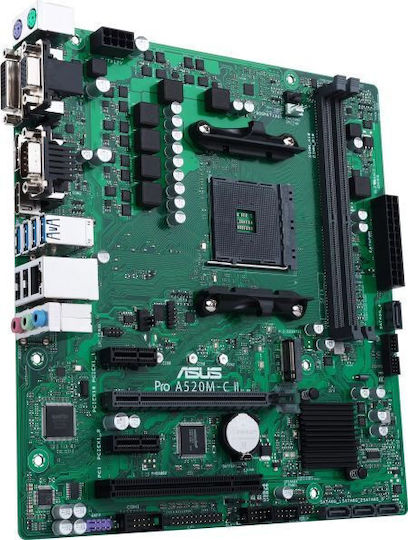

Asus Pro A520M-C II/CSM Motherboard Micro ATX with AMD AM4 Socket
Motherboards

Asus Pro A520M-C II/CSM Motherboard Micro ATX with AMD AM4 Socket

ASUS PRO A520M-C II/CSM

  • Processor manufacturer: AMD
  • Processor socket: AM4
  • Processor: AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7
  • Supported memory types: DDR4-SDRAM
  • Maximum internal memory: 64 GB
  • Memory...

ASUS PRO A520M-C II/CSM

  • Processor manufacturer: AMD
  • Processor socket: AM4
  • Processor: AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7
  • Supported memory types: DDR4-SDRAM
  • Maximum internal memory: 64 GB
  • Memory slot types: DIMM
  • Supported storage device interfaces: M.2, SATA III
  • Supported storage drive types: HDD & SSD
  • RAID levels: 0, 1, 10
  • USB connector: USB Type-A
  • ...
See full description See full description

Top specs

  • Socket

    The processor socket type.

    The processor we choose should have the same socket in order to fit into the motherboard.

    In addition to the socket, the motherboard chipset must also be supported by the processor.

  • Size

    The size of the motherboard is expressed with a code name (standard).
    2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

    Micro ATX

    Smaller than ATX, with fewer slots but sufficient for everyday use.

  • Usage

    Desktop

    Motherboards designed for use in desktop computers.

  • Chipset

    The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

    The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

    If the motherboard chipset is supported by the processor, then the socket will also be compatible.



    AMD A520

    AMD chipset for easy use with basic connectivity options. Supports Ryzen 5000 series processors.

  • Memory

    Memory Type and RAM Slots

    Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.
  • See all
97 30 €
98 Coins 98 Coins
Delivery Wed, 07 Oct - Tue, 13 Oct
Free   shipping cost
From Visionstudio 4.8 (63)
4.8 (63 reviews)
Θεσσαλονίκη, Θεσσαλονίκης
2 pieces
See Computer Hardware on the page of Visionstudio
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Product report

Description

Description

ASUS PRO A520M-C II/CSM

  • Processor manufacturer: AMD
  • Processor socket: AM4
  • Processor: AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7
  • Supported memory types: DDR4-SDRAM
  • Maximum internal memory: 64 GB
  • Memory slot types: DIMM
  • Supported storage device interfaces: M.2, SATA III
  • Supported storage drive types: HDD & SSD
  • RAID levels: 0, 1, 10
  • USB connector: USB Type-A
  • Ethernet interface type: Gigabit Ethernet
  • Number of USB 2.0 ports: 2
  • USB 3.2 Gen 1 ports: 1
  • Number of SATA III connections: 4
  • VGA ports: 1
  • HDMI ports: 1
  • DVI-D ports: 1
  • PS/2 ports: 2
  • Number of display interface ports: 1
  • Microphone/line-in jack: YES
  • Wi-Fi support: NO
  • Motherboard chipset: AMD A520
  • Audio chip: Realtek ALC897
  • Supported operating systems: Windows 10 x64
  • BIOS type: UEFI AMI
  • BIOS memory size: 128Mbit
  • Width: 244mm
  • Depth: 229mm
  • Package contents: SATA cables included

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 2
Socket
AM4

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD A520

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



AMD A520
AMD chipset for easy use with basic connectivity options. Supports Ryzen 5000 series processors.

Memory

Memory type
DDR4

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR4

The most common type of memory, with timings starting from 2133Hz.
Quantity
2 DIMM Slots
Memory Speeds
2133, 2400, 2666, 2800, 3000, 3200, 3333OC, 3466OC, 3600OC, 3733OC, 3866OC, 4000OC, 4400OC, 4600OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 3.0
1 Slot

PCI Express x16 3.0

The available slots for PCI Express x16 3.0 expansion cards on the motherboard.

Usually, the graphics card is connected to this slot. The most common version is 3.0, while the latest generation graphics cards use 4.0.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 3.0 Port

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

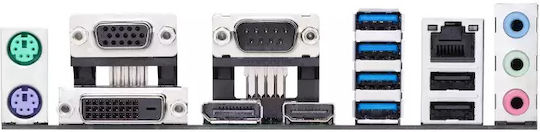

Rear USB-A outputs
2 USB 2.0 Ports, 4 USB 3.2 Ports
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DVI-D, DisplayPort, HDMI, VGA

Specifications

RGB Lighting
No
Wi-Fi/Bluetooth
No

Sound

Sound Card Channels
5.1
Additional Audio Connections
-

Top Specs

Memory
2x DDR4

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (1)

Reviews

5.0
1
5.0
Review this product
  1. 1
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1 star
    0
Review this product
Questions

Questions

Do you have a question about the product?

3 users have this product and can help you

Ask for the product

Description & Specifications

Product Details

Size
Micro ATX

Size

The size of the motherboard is expressed with a code name (standard).
2. We make sure that the computer case in which the motherboard will be installed supports the corresponding standard in order to fit it.

Micro ATX
Smaller than ATX, with fewer slots but sufficient for everyday use.
Type
Desktop

Type

Desktop

Motherboards designed for use in desktop computers.

Processor

Supported Processors
AMD
Models
Ryzen
Supported CPU Generation
Zen 2
Socket
AM4

Socket

The processor socket type.

The processor we choose should have the same socket in order to fit into the motherboard.

In addition to the socket, the motherboard chipset must also be supported by the processor.

Chipset

Model
AMD A520

Model

The motherboard chip that manages connections with motherboard components (e.g. CPU, RAM memory, hard disk, USB ports).

The processor we choose must support the motherboard chipset in order to be 100% compatible with each other and to fully utilize the motherboard connections.

If the motherboard chipset is supported by the processor, then the socket will also be compatible.



AMD A520
AMD chipset for easy use with basic connectivity options. Supports Ryzen 5000 series processors.

Memory

Memory type
DDR4

Memory type

The type of RAM memory that is compatible with the motherboard.

DDR4

The most common type of memory, with timings starting from 2133Hz.
Quantity
2 DIMM Slots
Memory Speeds
2133, 2400, 2666, 2800, 3000, 3200, 3333OC, 3466OC, 3600OC, 3733OC, 3866OC, 4000OC, 4400OC, 4600OC

Memory Speeds

The supported RAM memory speeds.

The RAM and processor that will be installed in the computer should be able to reach these speeds, while special settings may be required to reach maximum speeds.
Memory Channels
Dual Channel

Memory Channels

Dual Channel

It is possible to install two identical RAM modules that will work in parallel and provide more speed to applications that require a lot of memory (e.g. video editing). 2. For example, if two identical 8GB RAM modules are installed in a dual channel motherboard, they will perform better than installing one 16GB module.

Internal Connectors

PCI Express x16 3.0
1 Slot

PCI Express x16 3.0

The available slots for PCI Express x16 3.0 expansion cards on the motherboard.

Usually, the graphics card is connected to this slot. The most common version is 3.0, while the latest generation graphics cards use 4.0.
SATA III 6Gb/s
4 Port

SATA III 6Gb/s

Modern hard drive connection standard.

Most SSD hard drives require this standard to perform at their maximum potential.
M.2 Type
1 PCIe 3.0 Port

M.2 Type

The number and type of available slots for installing M.2 SSD units.
M.2 Slots
0

External Connectors

Rear USB-A outputs
2 USB 2.0 Ports, 4 USB 3.2 Ports
Ethernet (LAN)
1

Ethernet (LAN)

The number of ethernet ports for wired connection to a network that the motherboard has on its back panel.
Screen Connections
DVI-D, DisplayPort, HDMI, VGA

Specifications

RGB Lighting
No
Wi-Fi/Bluetooth
No

Sound

Sound Card Channels
5.1
Additional Audio Connections
-

Top Specs

Memory
2x DDR4

Memory

Memory Type and RAM Slots

Indicates the type of RAM memory supported by the motherboard (e.g., DDR4, DDR5) and the number of slots (DIMM slots) for the modules, which determines how much memory can be installed in total.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

Description

ASUS PRO A520M-C II/CSM

  • Processor manufacturer: AMD
  • Processor socket: AM4
  • Processor: AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7
  • Supported memory types: DDR4-SDRAM
  • Maximum internal memory: 64 GB
  • Memory slot types: DIMM
  • Supported storage device interfaces: M.2, SATA III
  • Supported storage drive types: HDD & SSD
  • RAID levels: 0, 1, 10
  • USB connector: USB Type-A
  • Ethernet interface type: Gigabit Ethernet
  • Number of USB 2.0 ports: 2
  • USB 3.2 Gen 1 ports: 1
  • Number of SATA III connections: 4
  • VGA ports: 1
  • HDMI ports: 1
  • DVI-D ports: 1
  • PS/2 ports: 2
  • Number of display interface ports: 1
  • Microphone/line-in jack: YES
  • Wi-Fi support: NO
  • Motherboard chipset: AMD A520
  • Audio chip: Realtek ALC897
  • Supported operating systems: Windows 10 x64
  • BIOS type: UEFI AMI
  • BIOS memory size: 128Mbit
  • Width: 244mm
  • Depth: 229mm
  • Package contents: SATA cables included
