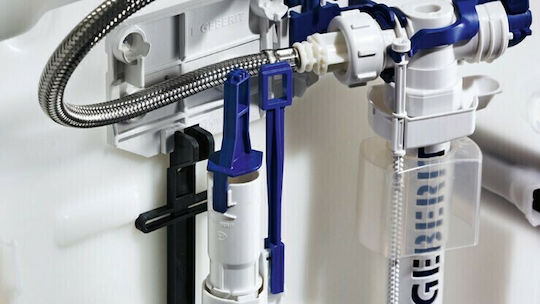

Support element SUPER for toilet UP320 - 110.300.00.5
Application: for connecting a Geberit AquaClean shower toilet with a hole distance of 18 cm or 23 cm for installation on a massive wall and cladding or brick. Not suitable for mounting on plasterboard walls.
- Concealed cistern (UP320) with front activation.
- Dual flush with Bolero, Sigma01, Sigma20, Sigma50, Sigma60 or Sigma80 and single flush with the Sigma10 flushing button.
- "Stop" function with a button for activation Rumba, Mambo or Tango.
- Capability to adjust the flush water quantity.
- Concealed cistern for installation and servicing work without tools.
- Protective casing for the service opening.
- Quick adjustment without tools and concealed cistern with dew insulation.
- Water connection at the center rear/top.
- Flexible connection pipe with angular valve that screws in without tools.
- Frame with 4 support points.
Included: R 1/2" water connection with integrated angular valve and handwheel, flush elbow, protective covers, protective casing of the service opening, connection rod set, drainage elbow for toilet.
- Transition connector, PE-HD, ø 90/110 mm.
- 2 threaded rods M12 for ceramic installation.
- Protective pipe for the water connection to Geberit AquaClean.
- Filling element, sound-absorbing set, fastening material.
- Product Number
- 110.300.00.5
Specifications
- Placement
- Built-in
- Shape
- Rectangular
- Pressure
- Low
- Material
- Plastic
- Double Flow
- No
- Colour
- White
- Seating
- No
Dimensions
- Height
- -
- Length
- 12 cm
- Length
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
