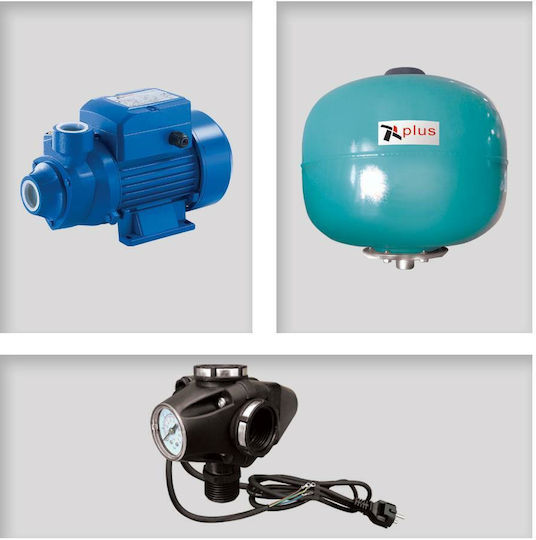

The pressure unit consists of:
- Pump
- Expansion tank
- Pressure switch kit with pressure gauge
- Flexible hose
Type: PM5
Pump Type: Peripheral
Power (hp-Watt): 0.50Hp - 370Watt
Voltage (Volt): 220 Volt/50 Hz
Pressure adjustment: Pressure switch
Inlet diameter (Inch-mm): 1"-25mm
Outlet diameter (Inch-mm): 1"-25mm
Max performance (M): 35.00
Max flow rate (m3/h): 2.10
Body material: Cast iron
Impeller material: Bronze
Automatic self-priming (M): No
Suction height (M): 8
Pumped liquid temperature (°C): 60
Ambient temperature (°C): 40
Power supply: Electric current
Tank configuration: Spherical
Capacity (Lt): 24
- Power Source
- Single Phase
- Horsepower
- 0.5 hp
- Power
- 370 W
- Maximum Supply
- 2.1 m³/h
- Container Capacity
- 24 lt
- Inverter
- No
- Container
- Horizontal
